Tiller 2 (2B) - Cub Cadet Tiller Attachment Chain Drive and Related Parts Parts Diagram

Tiller Attachment

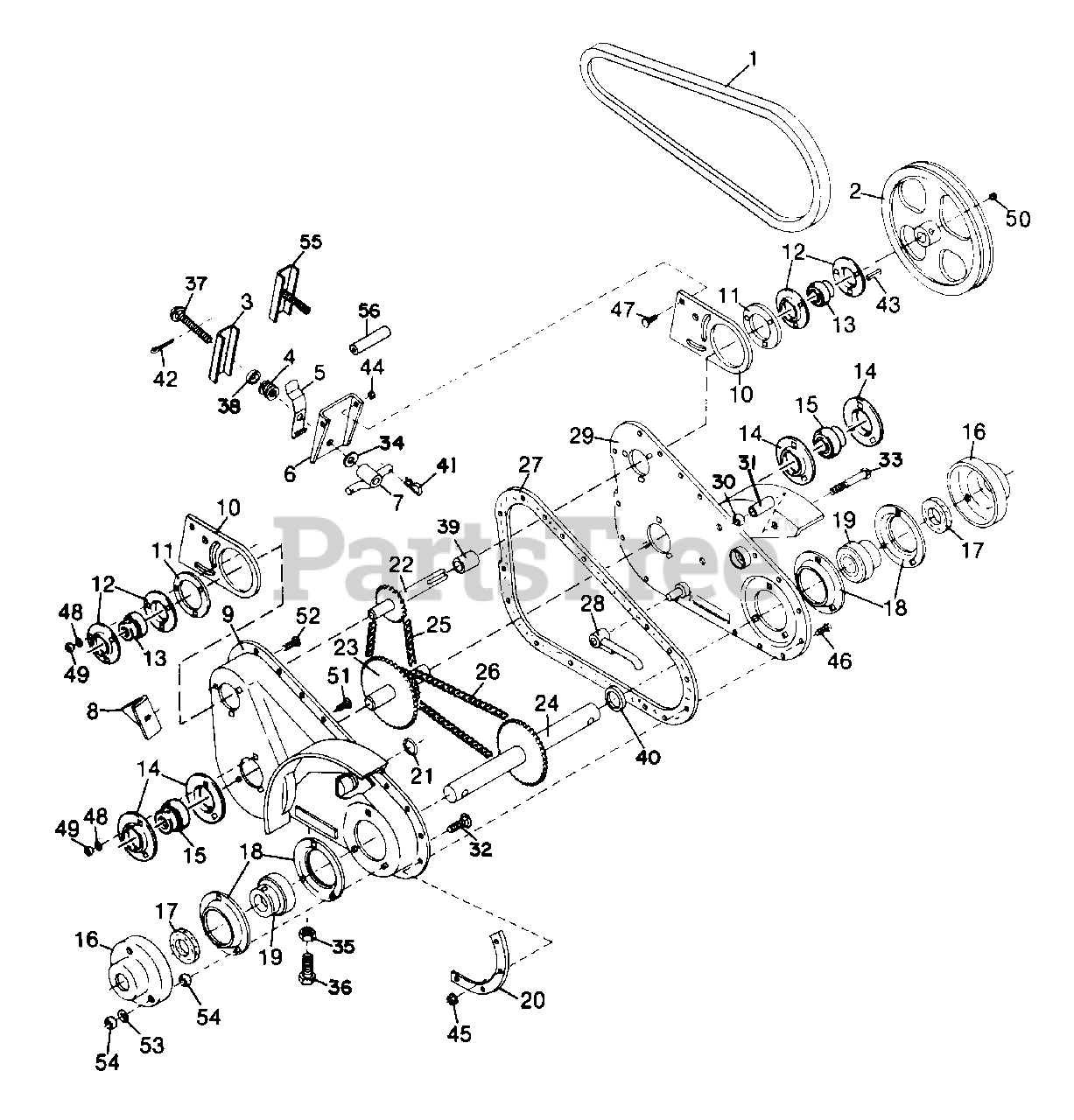

Chain Drive and Related Parts Parts Diagram

  • Title

1

Cub Cadet IH-62235-C1

BELT, DRIVE

$48.99

$

Usually ships in 3-6 days

0

2

Cub Cadet IH-485267-R1

PULLEY, DRIVE

$

$

Not available

3

Cub Cadet IH-223437-C1

HANDLE, ADJUSTMENT -2B TILLER-

$

$

Currently unavailable

4

Cub Cadet IH-485270-R1

SPRING, COMPRESSION

$

$

Currently unavailable

5

Cub Cadet IH-223434-C1

CLIP, ADJUSTMENT STOP -2B TILLER-

$

$

Currently unavailable

6

485268-R1

CHANNEL, BELT TIGHTENER

$

$

Not available

7

Cub Cadet IH-485269-R1

ROD, ADJUSTMENT

$

$

Not available

8

Cub Cadet IH-485266-R1

CLIP, MOUNTING BRACKET

$

$

Not available

9

66256-C1

HOUSING, CHAIN DRIVE

$

$

Not available

10

Cub Cadet IH-485254-R1

PLATE, PIVOT

$

$

Not available

11

Cub Cadet IH-485253-R1

SPACER

$

$

Currently unavailable

12

Cub Cadet IH-455961-R1

FLANGE, BEARING

$

$

Not available

13

Cub Cadet IH-471895-R91

BEARING W/O LOCKING COLLAR

$

$

Not available

Cub Cadet IH-455958-R11

COLLAR

Note: W/SET SCREWS, LOCKING

$

$

Not available

120572

SCREW, 1/4-20 x 3/4 SLT-RD-HD MACH

$

$

Not available

14

Cub Cadet IH-462360-R1

FLANGE, BEARING

$

$

Not available

15

Cub Cadet IH-666589-R91

BEARING W/O LOCKING COLLAR

$

$

Not available

Cub Cadet IH-455102-R21

COLLAR
(Superseded to IH-455102-R22)

Note: W/SET SCREWS, LOCKING

$

$

Not available

120572

SCREW, 1/4-20 x 4 SLT-RD-HD MACH

$

$

Not available

16

Cub Cadet IH-485263-R1

EXCLUDER, DUST

$

$

Not available

17

Cub Cadet IH-63720-C1

GASKET, FELT SEAL
(Superseded to WM-63715)

$

$

Not available

18

Cub Cadet IH-485261-R1

FLANGE, BEARING

$

$

Not available

19

Cub Cadet IH-485259-R91

BEARING

Note: W/LOCKING COLLAR

$

$

Not available

Cub Cadet IH-455104-R11

COLLAR

Note: W/SET SCREWS, LOCKING

$

$

Not available

120572

SCREW, 1/4-20 x 3/4 SLT-RD-HD MACH

$

$

Not available

20

Cub Cadet IH-485265-R1

SHOE, FORMED

$

$

Not available

21

Cub Cadet IH-62258-C1

O-RING

$

$

Not available

22

Cub Cadet IH-492952-R2

SHAFT, INPUT

$

$

Not available

23

Cub Cadet IH-485255-R2

SPROCKET, IDLER -10 & 28 T-(TEETH)

$

$

Not available

24

Cub Cadet IH-485256-R2

SHAFT, MAIN DRIVE -18 T-(TEETH)

$

$

Not available

25

Cub Cadet IH-485691-R1

CHAIN, MAIN

$

$

Not available

26

Cub Cadet IH-485692-R1

CHAIN, TINE DRIVE

$

$

Not available

27

Cub Cadet IH-485264-R1

GASKET, CHAIN DRIVE HOUSING

$

$

Not available

28

Cub Cadet IH-62251-C1

ADJUSTMENT, CHAIN

$

$

Not available

29

Cub Cadet IH-62257-C1

PLATE, HOUSING BACK

$

$

Currently unavailable

30

Cub Cadet IH-359783-C1

NUT, 3/8 CAD P/T LOCK TYPE 8
(Superseded to 912-3000)

$3.99

$

In Stock, Qty 20+

0

31

Cub Cadet IH-62250-C1

SPACER, 3/8 x 3/4 x 1-3/4

Note: MOUNTING BRACKET

$

$

Not available

32

Cub Cadet IH-634979-R1

BOLT, 3/8 x 1-1/2 CRG TYPE 5
(Superseded to 710-0431)

$4.49

$

Usually ships in 3-6 days

0

33

Cub Cadet IH-21318-R1

BOLT, 3/8 x 2-1/2 PHC TYPE 8

$

$

Not available

34

Cub Cadet IH-120396

WASHER, .531 x 1.062 x .074
(Superseded to 936-0272)

$4.49

$

In Stock, Qty 20+

0

35

Cub Cadet IH-102637

NUT, 1/2 PLN TYPE 5
(Superseded to 912-0206)

$3.99

$

In Stock, Qty 20+

0

36

179889

BOLT, 1/2 x 2 PLN TYPE 5

$

$

Not available

37

Cub Cadet IH-223435-C1

BOLT, ADJUSTMENT -2B TILLER-

$

$

Currently unavailable

38

Cub Cadet IH-610993-R1

SPACER, 3/4 x 1 x 1/4 -2B TILLER-

$

$

Currently unavailable

39

Cub Cadet IH-61914-C1

SPACER, 3/4 x 1-1/8 x 1-3/8 -2B TILLER-

Note: INPUT SHAFT

$

$

Not available

40

Cub Cadet IH-485257-R1

SPACER

$

$

Not available

41

Cub Cadet IH-480523-R1

PIN, QUICK ATTACHABLE COT.
(Superseded to 714-0117)

$3.99

$

In Stock, Qty 10

0

42

Cub Cadet IH-120169

PIN, 5/32 x 1 COT

$

$

Not available

43

21324-R1

KEY, 3/16 x 1-5/8 SQ PARALLEL

$

$

Not available

44

Cub Cadet IH-273924

NUT, 1/4 CAD P/T LOCK TYPE 5

$

$

Currently unavailable

45

Cub Cadet IH-485350-R1

NUT, 1/4-28 x 3/4, FLANGE LOCK

$

$

Currently unavailable

46

Cub Cadet IH-181566

BOLT, 1/4-NF x 3/4 TYPE 5
(Superseded to 710-0412)

$5.49

$

In Stock, Qty 9

0

47

18627-R1

BOLT, 1/4 x 1 CRG TYPE 1

$

$

Not available

48

Cub Cadet IH-120214

WASHER, 5/16 LOCK
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

49

Cub Cadet IH-120376

NUT, 5/16 TYPE 5
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

50

102581

SCREW, 5/16 x 3/8 PLN C/PT HDL/HS SET

$

$

Not available

51

Cub Cadet IH-598802-R1

BOLT, 5/16 x 3/4 CRG TYPE 5
(Superseded to 710-0451)

$3.99

$

In Stock, Qty 20+

0

52

12872-R1

BOLT, 5/16 x 1 CRG TYPE 1

$

$

Not available

53

Cub Cadet IH-120382

WASHER, 3/8 LOCK
(Superseded to 936-0169)

$3.49

$

In Stock, Qty 20+

0

54

Cub Cadet IH-120377

NUT, 3/8 TYPE 5
(Superseded to 712-0798)

$3.99

$

Usually ships in 3-6 days

0

55

Cub Cadet IH-485271-R1

TEE, BELT ADJUSTMENT -2 TILLER-

$

$

Currently unavailable

56

871623-R1

SPACER, 1/2 x 2-3/4 PIPE -2 TILLER-

$

$

Not available
