Tiller 2 (2B) - Cub Cadet Tiller Attachment Chain Drive & Related Parts Parts Diagram

Tiller Attachment

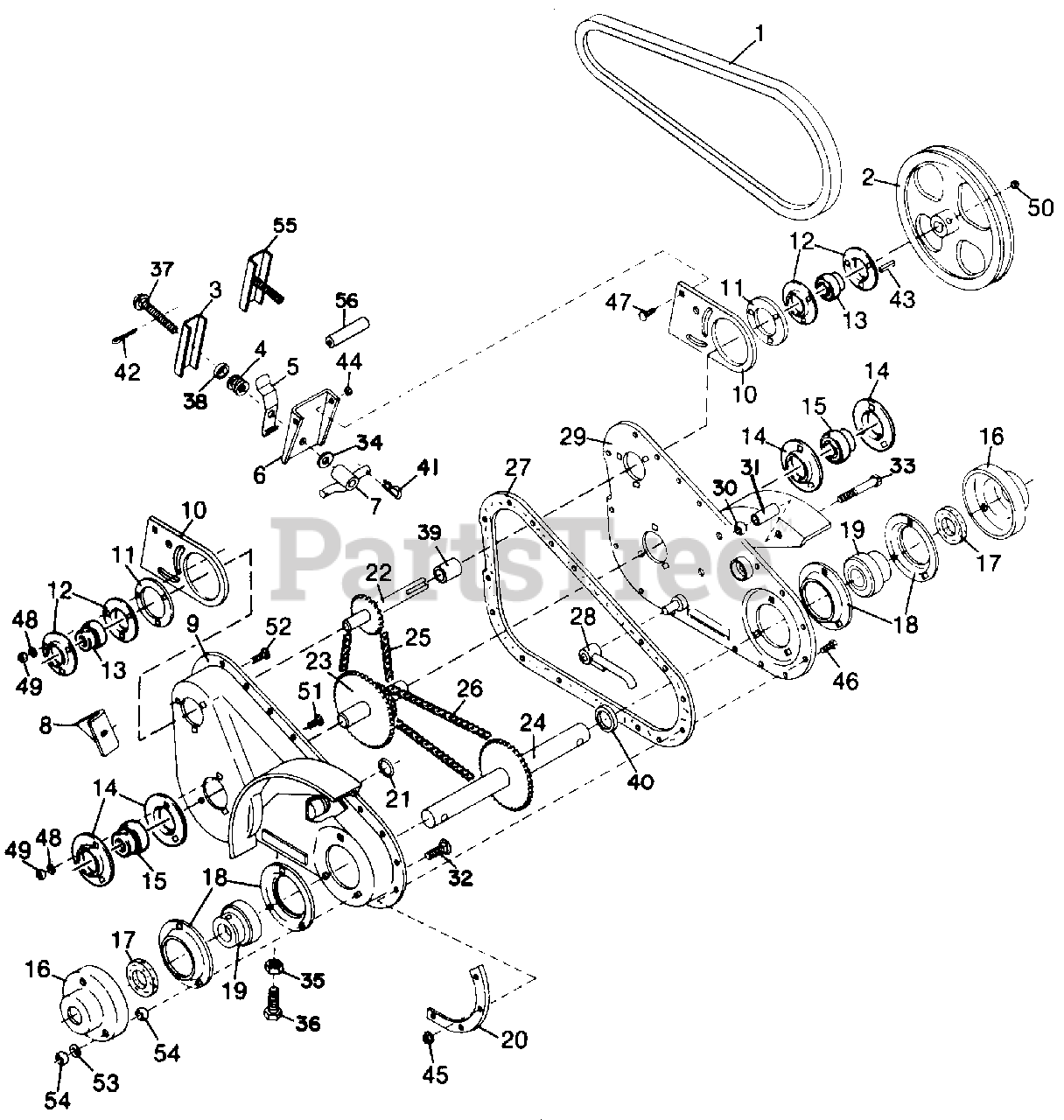

Chain Drive & Related Parts Parts Diagram

  • Title

1

Cub Cadet 62-235-C1

Belt, Drive

$

$

Currently unavailable

2

Cub Cadet 485-267-R1

Pulley, Drive

$

$

Currently unavailable

3

Cub Cadet 223-437-C1

Handle, Adjustment -2B Tiller

$

$

Currently unavailable

4

Cub Cadet 485-270-R1

Spring, Compression

$

$

Currently unavailable

5

Cub Cadet 223-434-C1

Clip, Adjustment Stop -2B Tiller

$

$

Currently unavailable

6

Cub Cadet 485-268-R1

Channel, Belt Tightener

$

$

Currently unavailable

7

Cub Cadet 485-269-R1

Rod, Adjustment

$

$

Currently unavailable

8

Cub Cadet 485-266-R1

Clip, Mounting Bracket

$

$

Currently unavailable

9

Cub Cadet 66-256-C1

Housing, Chain Drive

$

$

Currently unavailable

10

Cub Cadet 485-254-R1

Plate, Pivot

$

$

Currently unavailable

11

Cub Cadet 485-253-R1

Space

$

$

Currently unavailable

12

Cub Cadet 455-961-R1

Flange, Bearing

$

$

Currently unavailable

13

Cub Cadet 471-895-R91

Bearing w/o Locking Collar

$

$

Currently unavailable

Cub Cadet 455-958-R11

Collar w/Set Screws, Locking

$

$

Currently unavailable

Cub Cadet 120-572

Screw, 1/4-20 X 3/4 Slt-Rd-Hd Mach

$

$

Currently unavailable

14

Cub Cadet 462-360-R1

Flange, Bearing

$

$

Currently unavailable

15

Cub Cadet 666-589-R91

Bearing w/o Locking Collar

$

$

Currently unavailable

Cub Cadet 455-102-R21

Collar w/Set Screws, Locking

$

$

Currently unavailable

Cub Cadet 120-572

Screw, 1/4-20 X 3/4 Slt-Rd-Hd Mach

$

$

Currently unavailable

16

Cub Cadet 485-263-R1

Excluder, Dust

$

$

Currently unavailable

17

Cub Cadet 63-720-C1

Gasket, Felt Seal

$

$

Currently unavailable

18

Cub Cadet 485-261-R1

Flange, Bearing

$

$

Currently unavailable

19

Cub Cadet 485-259-R91

Bearing w/Locking Collar

$

$

Currently unavailable

Cub Cadet 455-104-R11

Collar w/Set Screws, Locking

$

$

Currently unavailable

Cub Cadet 120-572

Screw, 1/4-20 X 3/4 Slt-Rd-Hd Mach

$

$

Currently unavailable

20

Cub Cadet 485-265-R1

Shoe, Formed

$

$

Currently unavailable

21

Cub Cadet 62-258-C1

O-Ring

$

$

Currently unavailable

22

Cub Cadet 492-952-R2

Shaft, Input

$

$

Currently unavailable

23

Cub Cadet 485-255-R2

Sprocket, Idler -10 & 28 T

$

$

Currently unavailable

24

Cub Cadet 485-256-R2

Shaft, Main Drive -18 T

$

$

Currently unavailable

25

Cub Cadet 485-691-R1

Chain, Main

$

$

Currently unavailable

26

Cub Cadet 485-692-R1

Chain, Tine Drive

$

$

Currently unavailable

27

Cub Cadet 485-264-R1

Gasket, Chain Drive Housing

$

$

Currently unavailable

28

Cub Cadet 62-251-C1

Adjustment, Chain

$

$

Currently unavailable

29

Cub Cadet 62-257-C1

Plate, Housing Back

$

$

Currently unavailable

30

Cub Cadet 359-783-C1

Nut, 3/8 Cad P/T Lock Type 8

$

$

Currently unavailable

31

Cub Cadet 62-250-C1

Spacer, 3/8 X 3/4 X 1-3/4 -Mounting bracket

$

$

Currently unavailable

32

Cub Cadet 634-979-R1

Bolt, 3/8 X 1-1/2 Crg Type 5

$

$

Currently unavailable

33

Cub Cadet 21-318-R1

Bolt, 3/8 X 2-1/2 Phc Type 8

$

$

Currently unavailable

34

Cub Cadet HI-120396

Washer, .531 X 1.062 X .074

$

$

Currently unavailable

35

Cub Cadet IH-102637

Nut, 1/2 Pln Type 5
(Superseded to 912-0206)

$3.99

$

In Stock, Qty 20+

0

36

Cub Cadet 179-889

Bolt, 1/2 X 2 Pln Type 5

$

$

Currently unavailable

37

Cub Cadet 223-435-C1

Bolt, Adjustment -2B Tiller

$

$

Currently unavailable

38

Cub Cadet 610-993-R1

Spacer, 3/4 X 1 X 1/4 -2B Tiller

$

$

Currently unavailable

39

Cub Cadet 61-914-C1

Spacer, 3/4 X 1-1/8 X 1-3/8 -2B Tiller- -Input shaft

$

$

Currently unavailable

40

Cub Cadet 485-257-R1

Spacer

$

$

Currently unavailable

41

Cub Cadet 480-523-R1

Pin, Quick Attachable Cot

$

$

Currently unavailable

42

Cub Cadet IH-120169

Pin, 5/32 X 1 Cot

$

$

Not available

43

Cub Cadet 21-324-R1

Key, 3/16 X 1-5/8 Sq Parallel

$

$

Currently unavailable

44

Cub Cadet IH-273924

Nut, 1/4 Cad P/T Lock Type 5

$

$

Currently unavailable

45

Cub Cadet 485-350-R1

Nut, 1/4-28 X 3/4 Flange Lock

$

$

Currently unavailable

46

Cub Cadet IH-181566

Bolt, 1/4-Nf X 3/4 Type 5
(Superseded to 710-0412)

$5.49

$

In Stock, Qty 9

0

47

Cub Cadet 18-627-R1

Bolt, 1/4 X 1 Crg Type 1

$

$

Currently unavailable

48

Cub Cadet IH-120214

Washer, 5/16 Lock
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

49

Cub Cadet IH-120376

Nut, 5/16 Type 5
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

50

Cub Cadet 102-581

Screw, 5/16 X 3/8 Pln C/Pt Hdl/Hs Set

$

$

Currently unavailable

51

Cub Cadet 598-802-R1

Bolt, 5/16 X 3/4 Crg Type 5

$

$

Currently unavailable

52

Cub Cadet 12-872-R1

Bolt, 5/16 X 1 Crg Type 1

$

$

Currently unavailable

53

Cub Cadet IH-120382

Washer, 3/8 Lock
(Superseded to 936-0169)

$3.49

$

In Stock, Qty 20+

0

54

Cub Cadet IH-120377

Nut, 3/8 Type 5
(Superseded to 712-0798)

$3.99

$

Usually ships in 3-6 days

0

55

Cub Cadet 485-271-R1

Tee, Belt Adjustment -2 Tiller

$

$

Currently unavailable

56

Cub Cadet 871-623-R1

Spacer, 1/2 X 2-3/4 Pipe -2 Tiller

$

$

Currently unavailable
