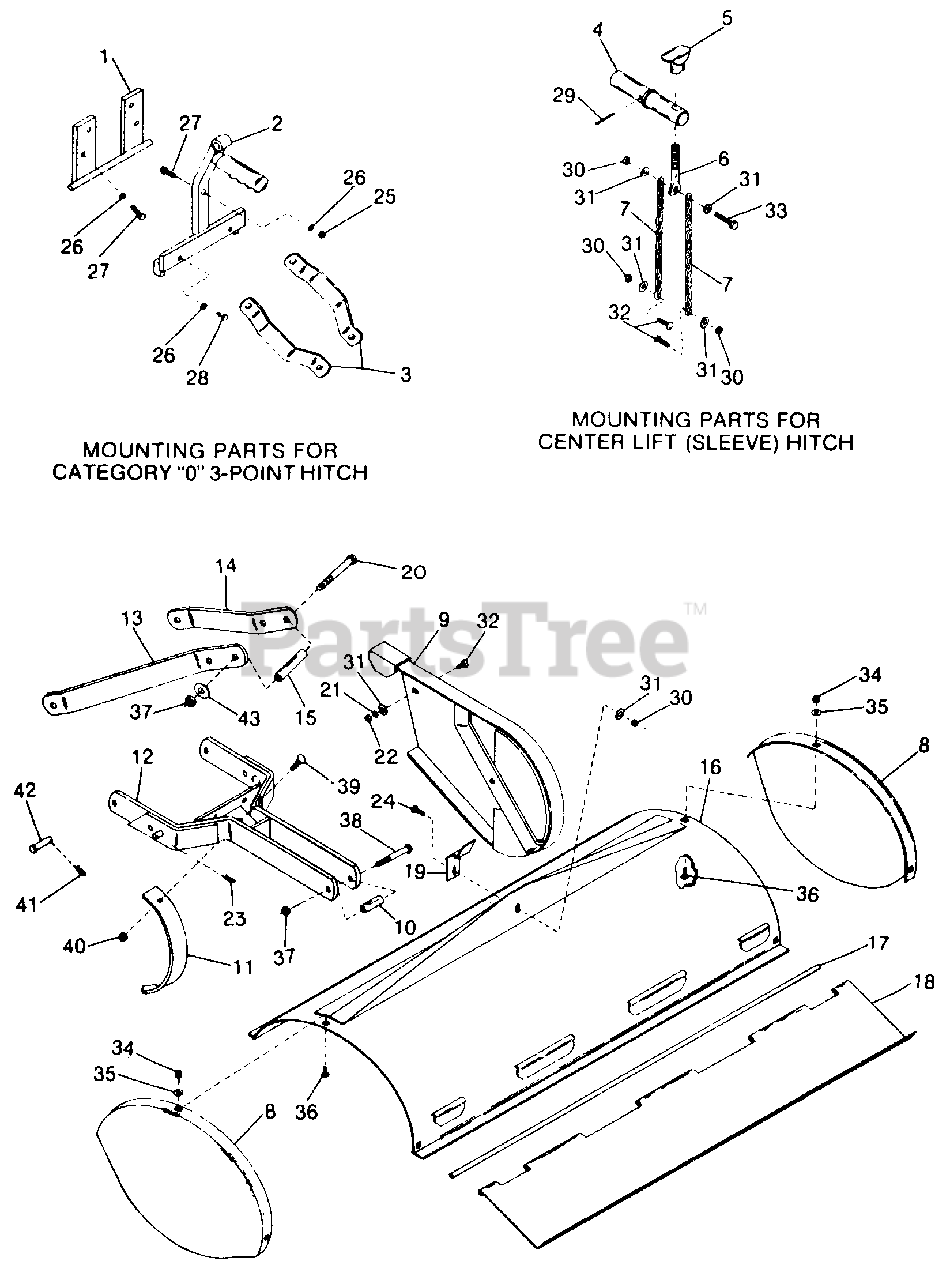

Tiller 2 (2B) - Cub Cadet Tiller Attachment Hitch & Shields Parts Diagram

Tiller Attachment

Hitch & Shields Parts Diagram

  • Title

1

Cub Cadet 107-032-C1

Pin Assy, Latch

$

$

Currently unavailable

2

Cub Cadet 107-031-C1

Bar Assy, Latch

$

$

Currently unavailable

3

Cub Cadet 107-033-C1

Bar, Lift

$

$

Currently unavailable

4

Cub Cadet 485-294-R1

Shaft Assy, Support

$

$

Currently unavailable

5

Cub Cadet 485-295-R2

Tee Assy, Depth Control

$

$

Currently unavailable

6

Cub Cadet 485-290-R1

Rod, Adjustment

$

$

Currently unavailable

7

Cub Cadet 485-352-R1

Chain, Lift

$

$

Currently unavailable

8

Cub Cadet 485-282-R1

Cap, End

$

$

Currently unavailable

9

Cub Cadet 485-293-R1

Guard Assy, Belt

$

$

Currently unavailable

10

Cub Cadet 485-288-R1

Bushing, Pivot

$

$

Currently unavailable

11

Cub Cadet 485-287-R1

Plow, Spring Tooth

$

$

Currently unavailable

12

Cub Cadet 485-286-R3

Bracket Assy, Lower Support

$

$

Currently unavailable

13

Cub Cadet 485-291-R1

Bar, Support LH

$

$

Currently unavailable

14

Cub Cadet 485-292-R1

Bar, Support RH

$

$

Currently unavailable

15

Cub Cadet 871-623-R1

Spacer, 1/2 X 2-3/4 Pipe

$

$

Currently unavailable

16

Cub Cadet 62-252-C1

Shield Assy, Safety

$

$

Currently unavailable

17

Cub Cadet 62-253-C1

Rod, Pivot

$

$

Currently unavailable

18

Cub Cadet 62-254-C1

Plate, Back

$

$

Currently unavailable

19

Cub Cadet 485-285-R1

Clip, Retainer

$

$

Currently unavailable

20

Cub Cadet 189-314

Bolt, 1/2 X 4-3/4 Type 5

$

$

Currently unavailable

21

Cub Cadet IH-120214

Washer, 5/16 Lock
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

22

Cub Cadet IH-120376

Nut, 5/16 Type 5
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

23

Cub Cadet 480-523-R1

Pin, Q.A. Cot

$

$

Currently unavailable

24

Cub Cadet 598-802-R1

Bolt, 5/16 X 3/4 Crg Type 5

$

$

Currently unavailable

25

Cub Cadet IH-120377

Nut, 3/8 Type 5
(Superseded to 712-0798)

$3.99

$

Usually ships in 3-6 days

0

26

Cub Cadet IH-120382

Washer, 3/8 Lock
(Superseded to 936-0169)

$3.49

$

In Stock, Qty 20+

0

27

Cub Cadet IH-180126

Bolt, 3/8 X 1-1/2 Type 5
(Superseded to 710-0520)

$4.49

$

In Stock, Qty 20+

0

28

Cub Cadet IH-180120

Bolt, 3/8 X 3/4 Type 5
(Superseded to 710-0216)

$3.99

$

In Stock, Qty 17

0

29

Cub Cadet IH-137263

Pin, 3/16 X 2 Cot

$

$

Currently unavailable

30

Cub Cadet IH-9412083

Nut, 5/16 Cad P/T Lock Type 5
(Superseded to 912-3009)

$

$

Not available

31

Cub Cadet 446-363

Washer, .375 X .875 X .064

$

$

Currently unavailable

32

Cub Cadet 598-803-R1

Bolt, 5/16 X 1 Crg Type 5

$

$

Currently unavailable

33

Cub Cadet IH-180081

Bolt, 5/16 X 1-1/4 Type 5
(Superseded to 710-0528)

$4.49

$

In Stock, Qty 20+

0

34

Cub Cadet IH-273924

Nut, 1/4 Cad P/T Lock Type 5

$

$

Currently unavailable

35

Cub Cadet 16-559-R1

Washer, .266 X .625 X .036

$

$

Currently unavailable

36

Cub Cadet 18-626-R1

Bolt, 1/4 X 1/2 Crg Type 1

$

$

Currently unavailable

37

Cub Cadet 460-869-R1

Nut, 1/2 Lock

$

$

Currently unavailable

38

Cub Cadet 180-192

Bolt, 1/2 X 3-1/2 Type 5

$

$

Currently unavailable

39

Cub Cadet 495-967-R1

Bolt, 3/8 X 1 Crg Type 5

$

$

Currently unavailable

40

Cub Cadet IH-9411655

Nut, 3/8 Cad P/T Lock Type 5
(Superseded to 912-3000)

$3.99

$

In Stock, Qty 20+

0

41

Cub Cadet 480-523-R1

Pin, Q.A. Cot

$

$

Currently unavailable

42

Cub Cadet 485-289-R1

Pin, Clevis

$

$

Currently unavailable

43

Cub Cadet 120-390

Washer, .562 X 1.375 X .086

$

$

Currently unavailable
