Tiller 2 (2B) - Cub Cadet Tiller Attachment Mounting, Gear Box & Pulleys Parts Diagram

Tiller Attachment

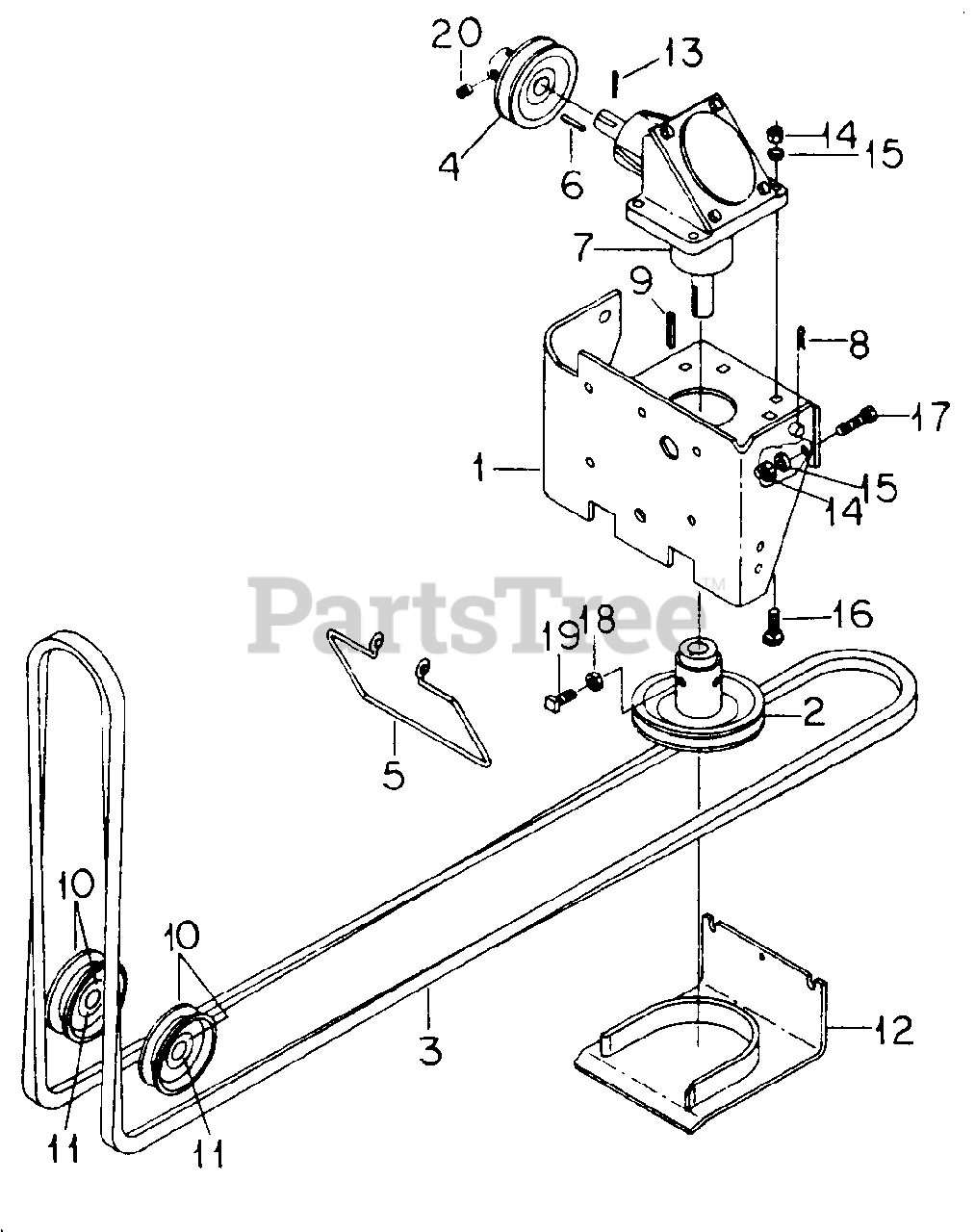

Mounting, Gear Box & Pulleys Parts Diagram

  • Title

1

Cub Cadet 485-245-R2

Mounting Assy, Gear Box

$

$

Currently unavailable

2

Cub Cadet 485-246-R91

Pulley w/Set Screws -2 Tiller

$

$

Currently unavailable

Cub Cadet 135-554-C1

Pulley w/Set Screw -2B Tiller

$

$

Currently unavailable

3

Cub Cadet 61-959-C1

Belt, PTO Drive -2 Tiller

$

$

Currently unavailable

Cub Cadet 135-553-C1

Belt, PTO Drive -2B Tiller w/Sleeve Hitch

$

$

Currently unavailable

Cub Cadet 106-819-C1

Belt, PTO Drive -2B Tiller w/Category O Hitch

$

$

Currently unavailable

4

Cub Cadet 485-247-R91

Pulley w/Set Screws

$

$

Currently unavailable

5

Cub Cadet 56-571-C1

Guide, Belt -Hydro Transmission- -For No. 2 Tiller only

$

$

Currently unavailable

Cub Cadet 485-300-R1

Guide, Belt -Gear Transmission- -For No.2 Tiller only

$

$

Currently unavailable

Cub Cadet IH-180122

Screw, 3/8-16 X 1 C-Z Hex-Hd Cap
(Superseded to 710-0514)

$4.49

$

In Stock, Qty 20+

0

Cub Cadet IH-446548

Washer, 3/8 X 3/4 X .051 C-Z

$

$

Currently unavailable

6

Cub Cadet 474-098-R1

Key, 3/16 X 1-1/4 Sq Parallel

$

$

Currently unavailable

7

Box Assy Gear -90 Degree-

Note: For components see list of parts under details of 90 Degree Gear Box

$

$

Not available

8

Cub Cadet 480-523-R1

Pin, Quick Attachable Cotter

$

$

Currently unavailable

9

Cub Cadet 21-325-R1

Key, 3/16 X 2 Sq Parallel

$

$

Currently unavailable

10

Pulley, Drive Belt Idler

Note: Refer to Tiller Front Drive Unit

$

$

Not available

11

Cub Cadet 542-122-R91

Bearing Assy, Idler Pulley

$

$

Currently unavailable

12

Cub Cadet 79-954-C1

Guard, Drive Belt -2B Tiller

$

$

Currently unavailable

13

Cub Cadet 137-218

Pin, 5/32 X 1-1/4 Cot

$

$

Currently unavailable

14

Cub Cadet IH-120377

Nut, 3/8 Type 5
(Superseded to 712-0798)

$4.49

$

In Stock, only 2 left!

0

15

Cub Cadet IH-120382

Washer, 3/8 Lock
(Superseded to 936-0169)

$3.99

$

In Stock, Qty 20+

0

16

Cub Cadet 550-796-R1

Bolt, 3/8 X 1-1/4 Crg Type 5

$

$

Currently unavailable

17

Cub Cadet 154-273-C1

Screw, 3/8-16 X 1 Lock

$

$

Currently unavailable

18

Cub Cadet IH-124824

Nut, 5/16 Jam Type 5

$

$

Not available

19

Cub Cadet 107-327

Screw, 5/16 X 1 Znp Sq/Hd C/Pt Set

$

$

Currently unavailable

20

Cub Cadet 102-581

Screw, 5/16 X 3/8 Pln C/Pt Hdl/Hs Set

$

$

Currently unavailable
