Tiller - BCS America 18" Tiller Attachment Gear Box Parts Diagram

18" Tiller Attachment

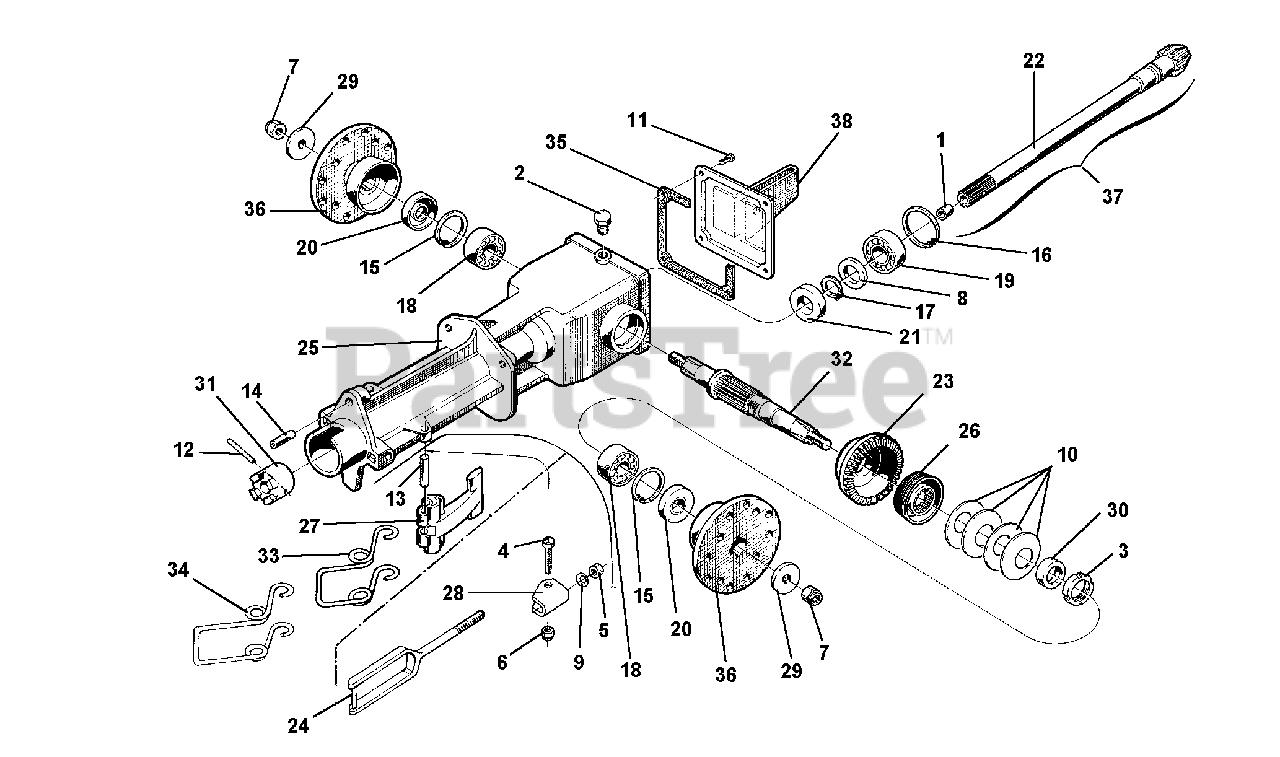

Gear Box Parts Diagram

  • Title

1

BCS America 300.30010

BUSHING

$9.49

$

Usually ships in 5-8 days

0

2

BCS America 300.40001

PLUG 1/4 GAS

$5.49

$

In Stock, only 4 left!

0

3

BCS America 300.90250

NUT, RING M25 X 1.5 SKF KM5

$14.99

$

Usually ships in 5-8 days

0

4

BCS America 311.12152

SCREW TE M8 X 30

$1.49

$

Usually ships in 5-8 days

0

5

BCS America 312.11080

NUT M8

$0.99

$

In Stock, Qty 8

0

6

BCS America 312.41080

NUT, SELF LOCKING M8

$0.99

$

In Stock, Qty 10

0

7

BCS America 312.41120

NUT, SELF LOCKING M12

$1.99

$

In Stock, only 1 left!

0

8

BCS America 314.15250

WASHER FLAT 25

$2.49

$

Usually ships in 5-8 days

0

9

BCS America 314.21083

SUPER WASHER 8 DIN 6796

$1.49

$

In Stock, Qty 6

0

10

BCS America 314.21632

SPRING

$10.99

$

Usually ships in 5-8 days

0

11

BCS America 315.10060

SCREW M6 X 12

$

$

Currently unavailable

12

BCS America 342.11064

PIN, LOCKING 6 X 40

$1.49

$

Usually ships in 5-8 days

0

13

BCS America 342.13084

SPIRAL PIN 8 X 40

$1.99

$

Usually ships in 5-8 days

0

14

BCS America 342.13120

LOCKING PIN 12 X 26

$4.99

$

Usually ships in 5-8 days

0

15

BCS America 351.11047

CIRCLIP, INTERN. D 47

$1.99

$

In Stock, only 3 left!

0

16

BCS America 351.11052

CIRCLIP, INTERN. D 52

$1.99

$

Usually ships in 5-8 days

0

17

BCS America 351.21025

CIRCLIP, EXTERN. D 25 DIN 471

$1.49

$

Usually ships in 5-8 days

0

18

BCS America 371.11201

BEARING 20 X 47 X 14 6204

$14.99

$

In Stock, only 2 left!

0

19

BCS America 371.11255

BEARING 25 X 52 X 15 6205

$15.99

$

In Stock, only 1 left!

0

20

BCS America 382.02000

OIL SEAL 20 X 47 X 7

$12.99

$

Usually ships in 5-8 days

0

21

BCS America 382.12004

OIL SEAL 20 X 47 X 7

$7.99

$

Usually ships in 5-8 days

0

22

BCS America 524.51114

ROTARY HOE PINION

$

$

Currently unavailable

23

BCS America 524.51115

CAP

$223.99

$

Usually ships in 5-8 days

0

24

BCS America 525.51053

LONG HOOK

$

$

Currently unavailable

25

BCS America 531.51112

ROTARY HOE ASSEMBLY

$269.18

$

Usually ships in 5-8 days

0

26

BCS America 541.51118

CONE CLUTCH

$

$

Currently unavailable

27

BCS America 552.50638

LEVER

$17.99

$

Usually ships in 5-8 days

0

28

BCS America 561.51055

IMPLEMENT HOOK COUPLING

$9.99

$

Usually ships in 5-8 days

0

29

BCS America 563.48417

WASHER WITH STEP

$

$

Currently unavailable

30

BCS America 563.51119

SPACER

$10.22

$

Usually ships in 5-8 days

0

31

BCS America 564.50605

BAR COUPLING

$156.99

$

In Stock, only 1 left!

0

32

BCS America 564.51116

ROTARY HOE SHAFT

$357.99

$

Usually ships in 5-8 days

0

33

BCS America 580.50639

HOOK

$27.99

$

Usually ships in 5-8 days

0

34

BCS America 580.50652

LONG SPRING HOOK

$26.99

$

Usually ships in 5-8 days

0

35

BCS America 580.50805

GASKET

$

$

Not available

36

BCS America 590.48419

KNIVE HOLDER FLANGE

$156.99

$

In Stock, only 1 left!

0

37

BCS America 590.51113

ROTARY HOE PINION

$420.99

$

Usually ships in 5-8 days

0

38

BCS America 590.51152

COVER

$35.99

$

Usually ships in 5-8 days

0
