Tiller - BCS America 18" Tiller Attachment Hood and Tines Parts Diagram

18" Tiller Attachment

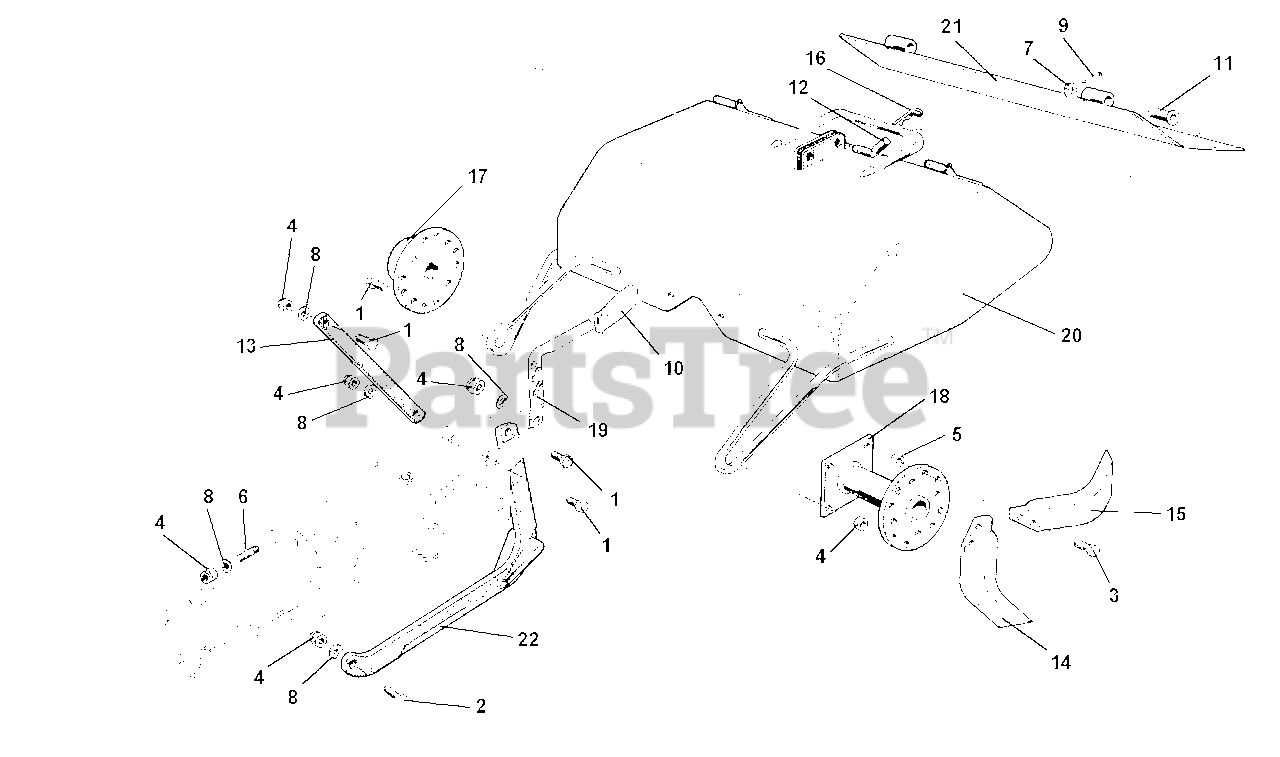

Hood and Tines Parts Diagram

  • Title

1

BCS America 311.12151

SCREW M8 X 25

$1.49

$

Usually ships in 5-8 days

0

2

BCS America 311.12152

SCREW TE M8 X 30

$1.49

$

Usually ships in 5-8 days

0

3

BCS America 311.12219

SCREW TE M10 X 25 UNI 5739-8G

$1.49

$

In Stock, Qty 5

0

4

BCS America 31241080

NUT, SELF LOCKING M8

$0.99

$

In Stock, Qty 10

0

5

BCS America 31241100

NUT, SELF LOCKING M10

$1.49

$

Usually ships in 5-8 days

0

6

BCS America 313.12078

STUD M8 X 32 X 14 X 14

$1.99

$

Usually ships in 5-8 days

0

7

BCS America 314.11104

WASHER P10.5 X 18

$0.99

$

In Stock, Qty 9

0

8

BCS America 314.23084

WASHER, LOCK 8.4

$0.99

$

In Stock, Qty 10

0

9

BCS America 34110030

PIN, COTTER A 3 X 20 UNI 1336

$1.49

$

In Stock, only 3 left!

0

10

BCS America 551.02714

KNOB

$14.99

$

Usually ships in 5-8 days

0

11

BCS America 551.42109

BUSH

$2.99

$

Usually ships in 5-8 days

0

12

BCS America 561.48625

ADJUSTMENT PIN

$32.99

$

Usually ships in 5-8 days

0

13

BCS America 561.51107

ROD

$15.99

$

Usually ships in 5-8 days

0

14

BCS America 580.48425

KNIVE WIDE LEFT

$13.99

$

Usually ships in 5-8 days

0

15

BCS America 580.48426

KNIVE WIDE RIGHT

$13.99

$

Usually ships in 5-8 days

0

16

BCS America 580.50333

SHEATH END

$

$

Currently unavailable

17

BCS America 590.48419

KNIVE HOLDER FLANGE

$156.99

$

In Stock, only 1 left!

0

18

BCS America 590.48422

SPACER KNIVES

$113.99

$

Usually ships in 5-8 days

0

19

BCS America 590.49863

KNIVE ROD

$44.99

$

Usually ships in 5-8 days

0

20

BCS America 590.511

ROTARY HOE ASSEMBLY

$

$

Currently unavailable

21

BCS America 59051140

ROTARY HOE FLAP

$108.99

$

Usually ships in 5-8 days

0

22

BCS America 59051150

CENTRAL KNIVE

$74.99

$

Usually ships in 5-8 days

0
