Tiller - BCS America 33" Tiller Attachment for 750 Tractor Depth Control Adjustment Parts Diagram

750 Rotary Tiller Attachment

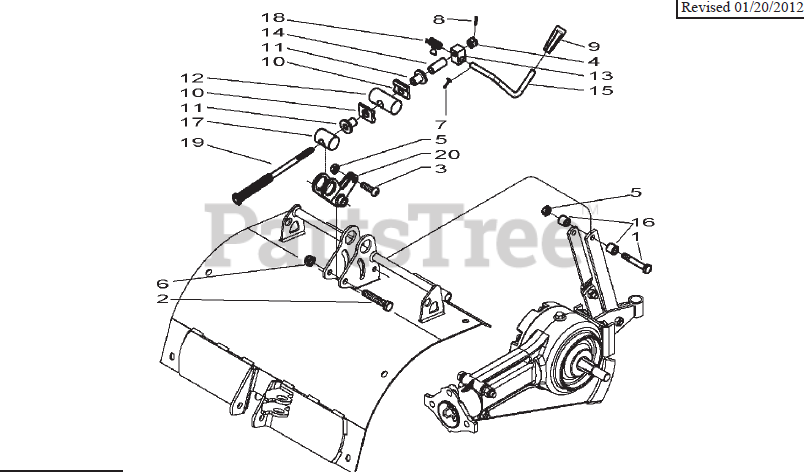

Depth Control Adjustment Parts Diagram

  • Title

1

BCS America 31111216

SCREW TE M10X70

$1.99

$

Usually ships in 5-8 days

0

2

BCS America 31112282

SCREW TE M12X65

$2.49

$

Usually ships in 5-8 days

0

3

BCS America 31121009

SCREW TBCEI M10X35

$3.49

$

Usually ships in 5-8 days

0

4

BCS America 31201210

NUT M10 UNI 5593

$4.49

$

Usually ships in 5-8 days

0

5

BCS America 31241105

SELFLOCK NUT M10

$1.99

$

Usually ships in 5-8 days

0

6

BCS America 31241126

SELFLOCK NUT M12

$1.99

$

Usually ships in 5-8 days

0

7

BCS America 34110023

SPLIT PIN

$0.99

$

Usually ships in 5-8 days

0

8

BCS America 34213022

ROLL PIN

$1.49

$

In Stock, only 2 left!

0

9

BCS America 55142076

KNOB

$5.99

$

Usually ships in 5-8 days

0

10

BCS America 55232116

BEARING ASSEMBLY

$8.49

$

Usually ships in 5-8 days

0

11

BCS America 56132115Z

BUSHING

$

$

Currently unavailable

12

BCS America 56132117Z

PIN

$

$

Currently unavailable

13

BCS America 56132397Z

SMALL BLOCK

$

$

Currently unavailable

14

BCS America 56132398Z

SPACER

$

$

Currently unavailable

15

BCS America 56159311Z

ROD

$

$

Currently unavailable

16

BCS America 561C0022Z

BUSHING

$

$

Currently unavailable

17

BCS America 57132114

SCREW NUT

$155.99

$

Usually ships in 5-8 days

0

18

BCS America 58059310Z

WHEEL

$

$

Currently unavailable

19

BCS America 59032110Z

ROD

$

$

Currently unavailable

20

BCS America 590C0018Z

PIVOT

$

$

Currently unavailable
