Tiller - BCS America 33" Tiller Attachment for 750 Tractor Gear Box Parts Diagram

750 Rotary Tiller Attachment

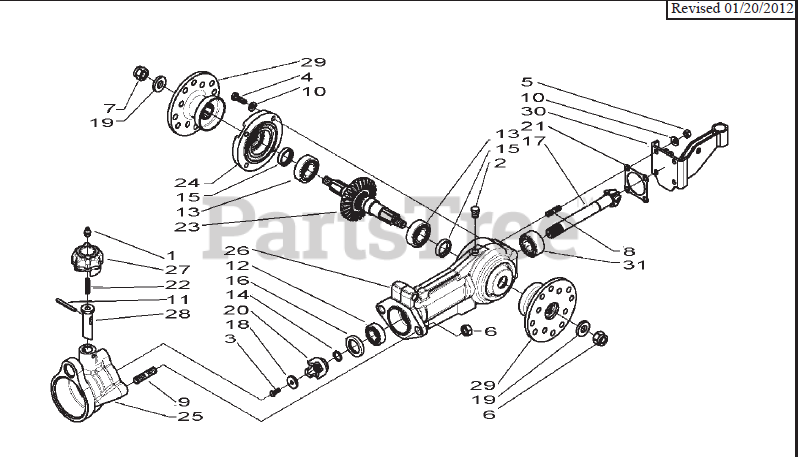

Gear Box Parts Diagram

  • Title

1

BCS America 30000001

FITTING GREASE STRAIGHT

$

$

Not available

2

BCS America 30040001

PLUG 1/4

$5.49

$

In Stock, only 4 left!

0

3

BCS America 31112090

CAPSCREW M6X16

$0.99

$

In Stock, Qty 10

0

4

BCS America 31112151

CAPSCREW, M8X25

$1.49

$

Usually ships in 5-8 days

0

5

BCS America 31241085

LOCKNUT, DEFORMED M8

$1.99

$

Usually ships in 5-8 days

0

6

BCS America 31241124

LOCKNUT,

$1.99

$

Usually ships in 5-8 days

0

7

BCS America 31241141

LOCKNUT, M14

$1.99

$

In Stock, only 3 left!

0

8

BCS America 31312078

STUD M8X32X14X14

$1.99

$

Usually ships in 5-8 days

0

9

BCS America 31312124

STUD M56X12X1.25X22X12

$3.99

$

Usually ships in 5-8 days

0

10

BCS America 31421083

WASHER, SUPER M8

$1.49

$

In Stock, Qty 6

0

11

BCS America 34211065

PIN SPLIT M6X50

$1.99

$

Usually ships in 5-8 days

0

12

BCS America 37111200

BEARING, 20X42X12 6004

$16.99

$

In Stock, only 1 left!

0

13

BCS America 37111255

BEARING, 25X52X15 6205C3

$15.99

$

In Stock, only 1 left!

0

14

BCS America 38111554

O-RING

$0.99

$

In Stock, Qty 6

0

15

BCS America 38202001

OIL SEAL 25X35X7

$11.99

$

Usually ships in 5-8 days

0

16

38211842

OIL SEAL

$

$

Not available

17

BCS America 52459230

PINION SHAFT

$171.99

$

Usually ships in 5-8 days

0

18

BCS America 56142291

WASHER, 7X25X4

$1.99

$

Usually ships in 5-8 days

0

19

BCS America 56148438

WASHER

$

$

Not available

20

BCS America 56458941

COUPLER PTO

$66.99

$

In Stock, only 1 left!

0

21

BCS America 58049859

GASKET

$6.49

$

In Stock, only 1 left!

0

22

BCS America 58056646

TUBE

$11.99

$

Usually ships in 5-8 days

0

23

BCS America 59048408

SHAFT W/ CROWN WHEEL

$357.99

$

In Stock, only 1 left!

0

24

51148428N

COVER, SIDE

$

$

Not available

25

BCS America 51156703N

BUSHING ONLY

$

$

Currently unavailable

26

51259234N

GEARBOX CASE ONLY

$

$

Not available

27

BCS America 552C0017

COVER

$42.99

$

Usually ships in 5-8 days

0

28

BCS America 561C0013Z

TUBE

$

$

Currently unavailable

29

BCS America 590C0102N

HUB, INNER TINE CARRIER

$106.68

$

Usually ships in 5-8 days

0

30

590C0104N

COVER, REAR

$

$

Not available

31

F081264005

0 BEARING

$

$

Not available

FR10017

17

GEARBOX COMPLETE ( ITEMS 29, 19, 6 AND QUICK HITCH ITEMS

$

$

Not available
