Tiller - BCS America 33" Tiller Attachment for 946 & 948 Tractors Gear Box Parts Diagram

946 & 948 Tiller Attachment

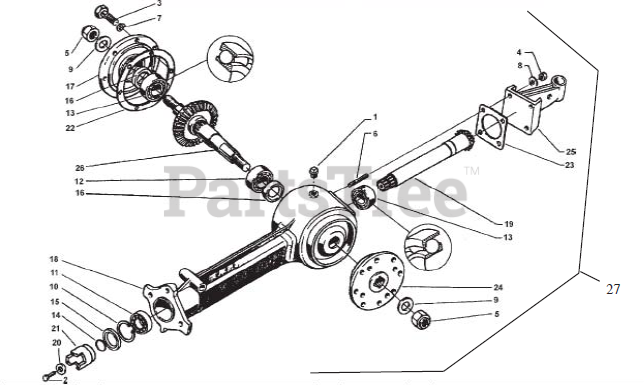

Gear Box Parts Diagram

  • Title

1

BCS America 300.40001

PLUG 1/4 GAS

$5.49

$

In Stock, only 4 left!

0

2

BCS America 311.12093

CAPSCREW M6 X 20

$0.99

$

In Stock, Qty 10

0

3

BCS America 311.12151

CAPSCREW M8 X 25

$1.49

$

Usually ships in 5-8 days

0

4

BCS America 312.41105

LOCKNUT M10 DEFORMED

$1.99

$

Usually ships in 5-8 days

0

5

BCS America 312.41181

LOCKNUT M18X1.5

$4.49

$

Usually ships in 5-8 days

0

6

BCS America 313.12101

STUD M10 X 37 X 19 X 15

$7.99

$

Usually ships in 5-8 days

0

7

BCS America 314.21083

SUPER WASHER 8

$1.49

$

In Stock, Qty 6

0

8

BCS America 314.21101

SUPER WASHER 10

$1.99

$

In Stock, Qty 5

0

9

BCS America 314.21253

SUPER WASHER 18

$9.49

$

Usually ships in 5-8 days

0

10

BCS America 351.11052

CIRCLIP, INTERNAL D 52

$1.99

$

Usually ships in 5-8 days

0

11

BCS America 371.11255

BEARING 25 X 52 X 15

$15.99

$

In Stock, only 1 left!

0

12

BCS America 371.11300

BEARING 30 X 62 X 16

$

$

Currently unavailable

13

BCS America 371.41301

BEARING 30 X 62 X 16

$

$

Currently unavailable

14

381.11800

O RING 4075 18.64X3.53

$

$

Not available

15

382.02002

OIL SEAL 35X52X7

$

$

Not available

16

BCS America 382.13001

OIL SEAL 30X52X10

$15.99

$

Usually ships in 5-8 days

0

17

BCS America 511.49676

SIDE COVER

$335.99

$

Usually ships in 5-8 days

0

18

BCS America 512.49675

ROTARY HOE CENTRAL ASSEMBLY

$1002.99

$

Usually ships in 5-8 days

0

19

524.59227

PINION

$

$

Not available

20

BCS America 561.42291

WASHER 7 X 25 X 4

$1.99

$

Usually ships in 5-8 days

0

21

564.58944

THREE FINGER COUPLER

$

$

Not available

22

BCS America 580.49677

GASKET

$2.99

$

Usually ships in 5-8 days

0

23

BCS America 580.49696

GASKET

$1.99

$

Usually ships in 5-8 days

0

24

BCS America 590.49687

HUB

$177.99

$

Usually ships in 5-8 days

0

25

BCS America 590.49697

PLATE BRACKET END

$126.99

$

Usually ships in 5-8 days

0

26

BCS America 590.49736

BEVEL GEAR

$506.99

$

Usually ships in 5-8 days

0

27

BCS America 599.90108

GEARBOX COMPLETE

$2067.99

$

Usually ships in 5-8 days

0
