Tiller - BCS America 33" Tiller Attachment for 946 & 948 Tractors Tiller Hood Parts Diagram

946 & 948 Tiller Attachment

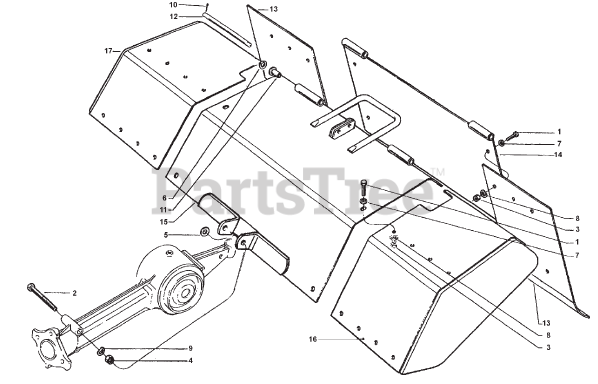

Tiller Hood Parts Diagram

  • Title

1

BCS America 31112210

CAPSCREW M10X20

$1.49

$

Usually ships in 5-8 days

0

2

BCS America 311.12295

CAPSCREW M12X90

$2.49

$

Usually ships in 5-8 days

0

3

BCS America 31211100

NUT M10

$1.49

$

In Stock, only 2 left!

0

4

31241120

NUT SELF LOCKING M12

$

$

Not available

5

BCS America 314.10131

WASHER FLAT M13.5X27X1

$0.99

$

Usually ships in 5-8 days

0

6

BCS America 314.11104

WASHER FLAT M10.5X18

$0.99

$

In Stock, Qty 9

0

7

BCS America 314.11105

WASHER FLAT M10.5X21

$1.49

$

In Stock, only 1 left!

0

8

BCS America 314.23105

WASHER WAVEY B 10.5

$1.49

$

In Stock, only 3 left!

0

9

BCS America 31423130

WASHER WAVY LOCK B 13

$1.49

$

In Stock, only 2 left!

0

10

BCS America 34110020

8 PIN COTTER A 2X15

$0.99

$

Usually ships in 5-8 days

0

11

551.421

9 BUSHING

$

$

Not available

12

BCS America 56142110

0 PIN, COUPLING

$30.99

$

In Stock, only 1 left!

0

13

BCS America 56149720

0 FLAP, REAR

$113.99

$

Usually ships in 5-8 days

0

14

590.4972

2 FLAP, CENTER

$

$

Not available

15

590.4972

4 COVER, CENTER

$

$

Not available

16

590.4972

5 COVER, END LEFT

$

$

Not available

17

590.4972

8 COVER, END RIGHT

$

$

Not available
