Tiller - BCS America Spline Shaft PTO Rotary Tiller Attachment (1983 & Before) Gear Box Parts Diagram

Spline Shaft PTO Rotary Tiller Attachment

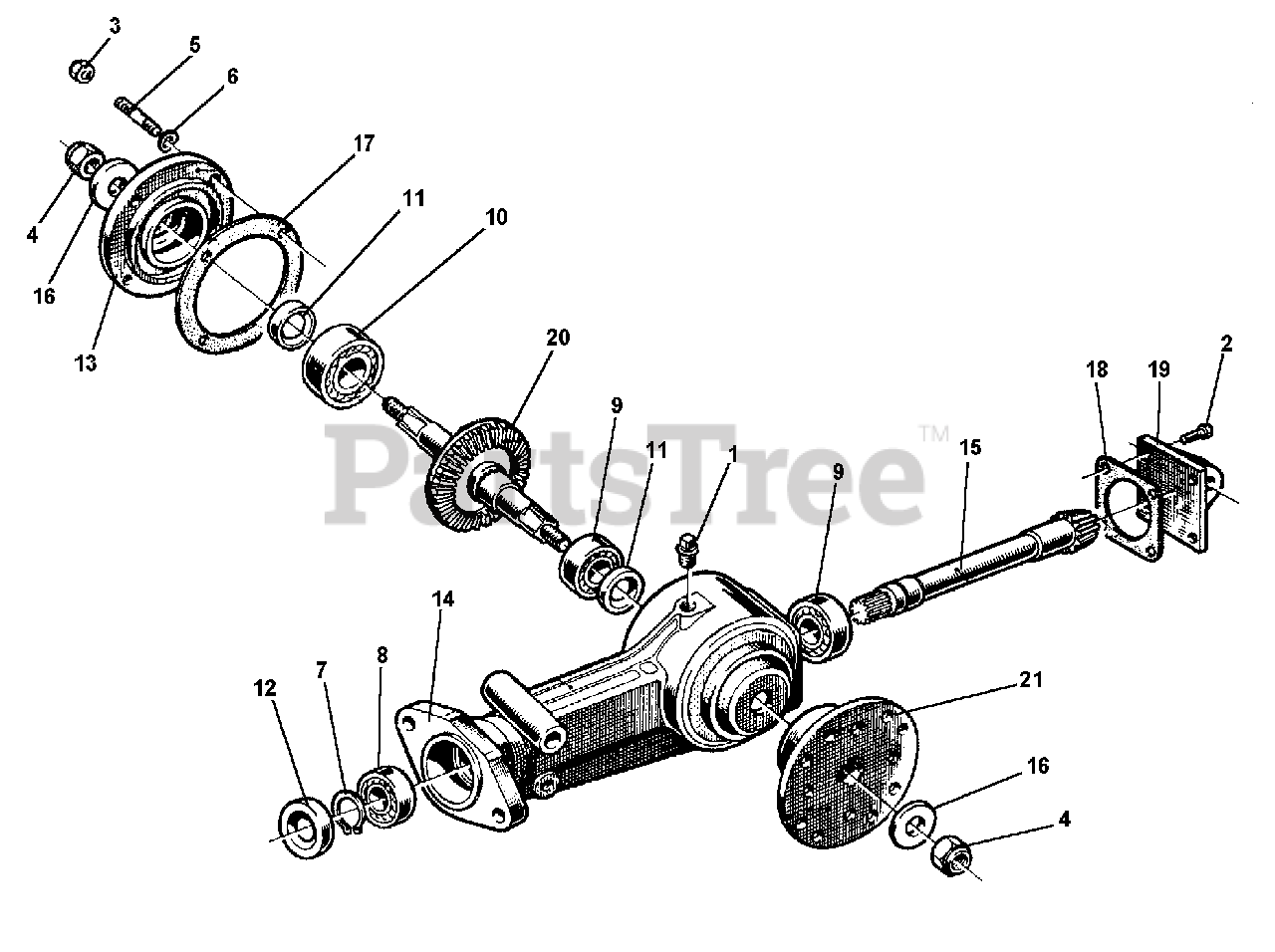

Gear Box Parts Diagram

  • Title

1

BCS America 300.40001

PLUG 1/4

$5.49

$

In Stock, only 4 left!

0

2

BCS America 31112090

SCREW M6 X 16

$0.99

$

In Stock, Qty 10

0

3

BCS America 31241080

NUT, SELF LOCKING M 8

$0.99

$

In Stock, Qty 10

0

4

31241120

NUT, SELF LOCKING M12

$

$

Not available

5

BCS America 313.12078

STUD M8 X 32 X 14 X14

$1.99

$

Usually ships in 5-8 days

0

6

BCS America 314.23084

WASHER, LOCK 8.4

$0.99

$

In Stock, Qty 10

0

7

BCS America 35121020

CIRCLIP EXTERNAL

$1.49

$

In Stock, Qty 8

0

8

BCS America 37111200

BEARING M20 X 47 X 14

$16.99

$

In Stock, only 1 left!

0

9

BCS America 371.11201

BEARING M20 X 47 X 14

$14.99

$

In Stock, only 2 left!

0

10

BCS America 371.11202

BEARING M20 X 52 X15

$

$

Currently unavailable

11

BCS America 382.12001

OIL SEAL M20 X 35 X7

$9.99

$

Usually ships in 5-8 days

0

12

BCS America 382.12003

OIL SEAL M20 X 42 X 7

$7.49

$

In Stock, only 1 left!

0

13

BCS America 511.43406

COUPLING

$

$

Currently unavailable

14

BCS America 512.43402

GEAR CASE

$369.56

$

Usually ships in 5-8 days

0

15

BCS America 524.48404

PINION SHAFT

$301.99

$

Usually ships in 5-8 days

0

16

BCS America 563.48417

SUPER WASHER

$

$

Currently unavailable

17

BCS America 580.43407

GASKET

$2.49

$

In Stock, only 1 left!

0

18

BCS America 580.43419

GASKET

$

$

Currently unavailable

19

BCS America 590.43416

END COVER

$50.99

$

Usually ships in 5-8 days

0

20

BCS America 590.48413

BEVELED GEAR

$408.99

$

Usually ships in 5-8 days

0

21

BCS America 590.48419

TINE HUB

$156.99

$

In Stock, only 1 left!

0
