Tiller - BCS America Spline Shaft PTO Rotary Tiller Attachment (1983 & Before) Tines & Depth Control Parts Diagram

Spline Shaft PTO Rotary Tiller Attachment

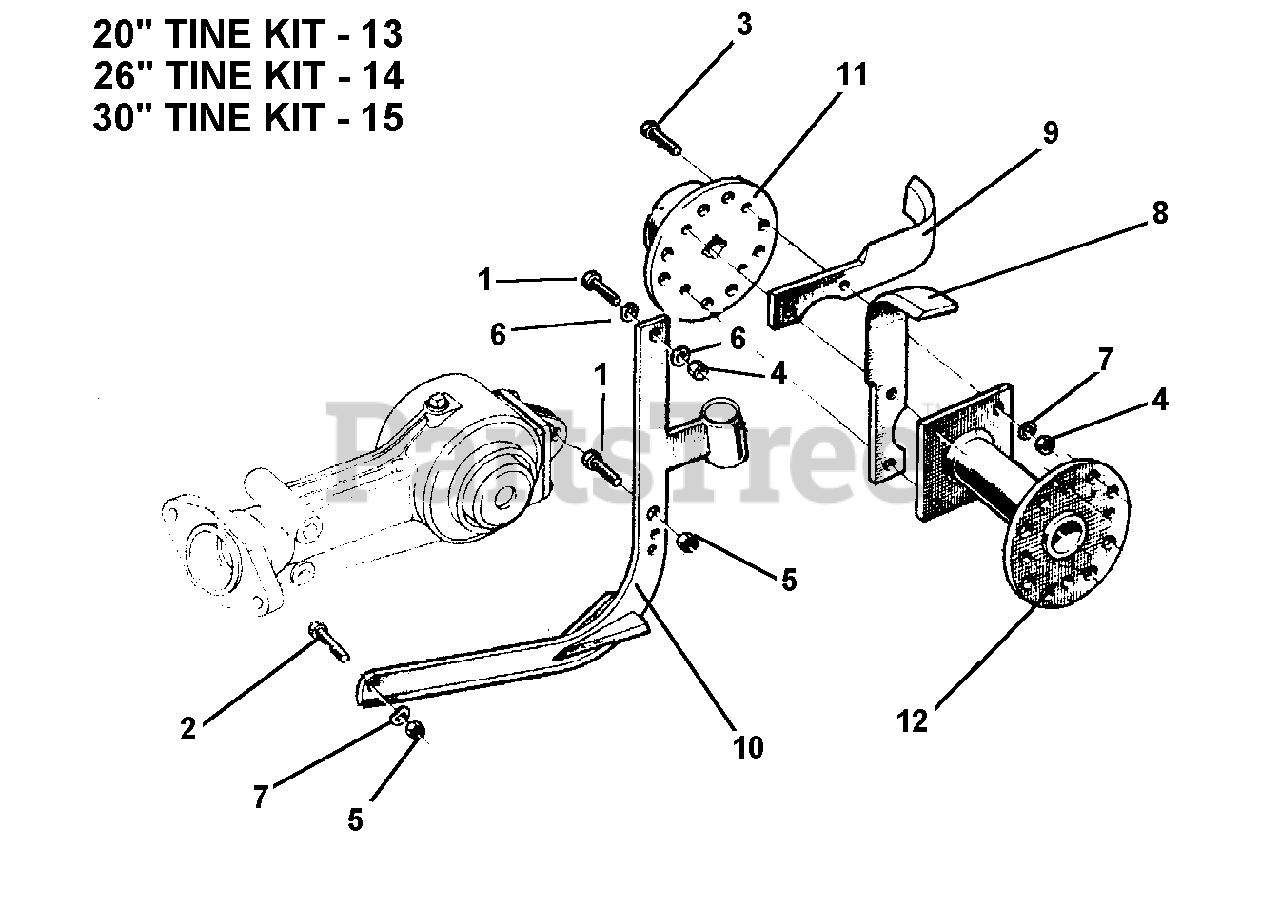

Tines & Depth Control Parts Diagram

  • Title

1

BCS America 311.12151

SCREW M8 X 25

$1.49

$

Usually ships in 5-8 days

0

2

BCS America 311.12152

SCREW M8 X 30

$1.49

$

Usually ships in 5-8 days

0

3

BCS America 311.12153

SCREW M8 X 35

$1.49

$

In Stock, Qty 5

0

4

BCS America 31211080

NUT M8

$0.99

$

In Stock, Qty 8

0

5

BCS America 31241080

NUT, SELF LOCKING M8

$0.99

$

In Stock, Qty 10

0

6

BCS America 314.11084

WASHER, FLAT 8.4

$0.99

$

In Stock, Qty 5

0

7

BCS America 314.23084

WASHER, LOCK 8.4

$0.99

$

In Stock, Qty 10

0

8

BCS America 580.43431

TINE, LEFT

$13.99

$

Usually ships in 5-8 days

0

9

BCS America 580.43432

TINE, RIGHT

$13.99

$

Usually ships in 5-8 days

0

10

590.43422

CENTRAL KNIFE

$

$

Not available

11

BCS America 590.48419

TINE HUB

$156.99

$

In Stock, only 1 left!

0

12

BCS America 590.48422

TINE SPACER

$113.99

$

Usually ships in 5-8 days

0

13

BCS America T20S83

TINE KIT 20"

$148.44

$

Usually ships in 5-8 days

0

14

BCS America T26S83

TINE KIT 26"

$172.50

$

Usually ships in 5-8 days

0

15

BCS America T30S83

TINE KIT 30"

$219.00

$

Usually ships in 5-8 days

0
