Tiller - BCS America Spline Shaft PTO Rotary Tiller Attachment (1984 - 1994) Gear Box (SN: 10000 - 10526) Parts Diagram

Spline Shaft PTO Rotary Tiller Attachment

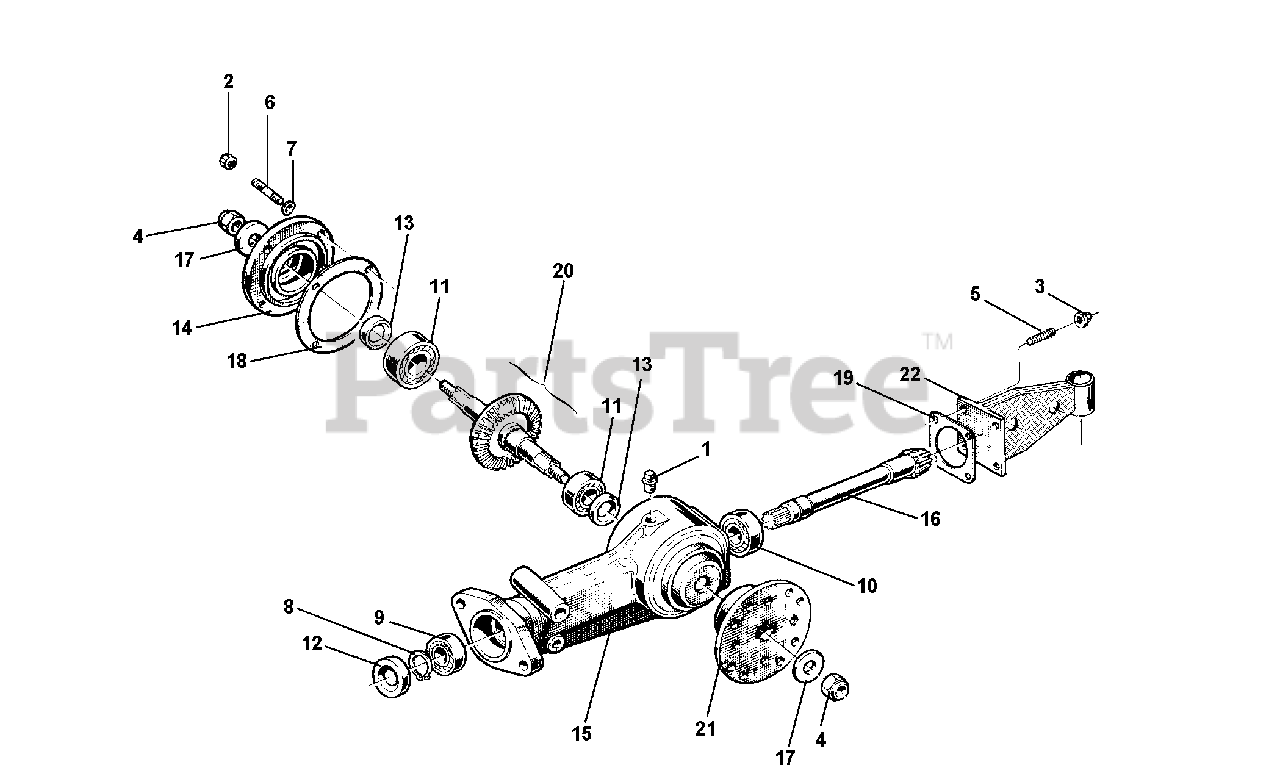

Gear Box (SN: 10000 - 10526) Parts Diagram

  • Title

1

BCS America 300.40001

PLUG 1/4 GAS

$5.49

$

In Stock, only 4 left!

0

2

BCS America 31241080

NUT, SELF LOCKING M8

$0.99

$

In Stock, Qty 10

0

3

BCS America 312.41084

NUT

$1.49

$

Usually ships in 5-8 days

0

4

BCS America 312.41141

NUT, SELF LOCKING M14 STANDARD

$1.99

$

In Stock, only 3 left!

0

5

BCS America 313.12078

STUD M8 X 32 X 14 X 14

$1.99

$

Usually ships in 5-8 days

0

6

BCS America 313.12081

STUD M8 X 38 X 16 X 16

$10.99

$

Usually ships in 5-8 days

0

7

BCS America 314.23084

WASHER, LOCK 8.4

$0.99

$

In Stock, Qty 10

0

8

BCS America 35121020

CIRCLIP EXTERN. D 20

$1.49

$

In Stock, Qty 8

0

9

BCS America 37111200

BEARING 20 X 42 X 12 6004

$16.99

$

In Stock, only 1 left!

0

10

BCS America 371.11201

BEARING 20 X 47 X 14 6204

$14.99

$

In Stock, only 2 left!

0

11

BCS America 371.11255

BEARING 25 X 52 X 15 6205

$15.99

$

In Stock, only 1 left!

0

12

BCS America 382.12003

SEAL, OIL 20 X 42 X 7 STANDARD

$7.49

$

In Stock, only 1 left!

0

13

BCS America 382.12503

OIL SEAL

$

$

Currently unavailable

14

BCS America 511.48428

COUPLING

$144.99

$

Usually ships in 5-8 days

0

15

BCS America 512.48427

CASING OF ROTARY HOE 80 CM

$

$

Currently unavailable

16

BCS America 524.48404

PINION CONICAL

$301.99

$

Usually ships in 5-8 days

0

17

BCS America 561.48438

WASHER

$

$

Not available

18

BCS America 580.43407

GASKET

$2.49

$

In Stock, only 1 left!

0

19

BCS America 580.49859

ROTARY HOE GASKET

$6.49

$

In Stock, only 1 left!

0

20

BCS America 59048430

SHAFT WITH GEAR

$

$

Not available

21

BCS America 590.48435

BLADE HOLDER FLANGE D 25

$156.99

$

Usually ships in 5-8 days

0

22

BCS America 590.49853

REAR COVER FOR ROTARY HOE

$77.99

$

Usually ships in 5-8 days

0
