Tiller - BCS America Spline Shaft PTO Rotary Tiller Attachment (1984 - 1994) Gear Box (SN: 10527 - 139760) Parts Diagram

Spline Shaft PTO Rotary Tiller Attachment

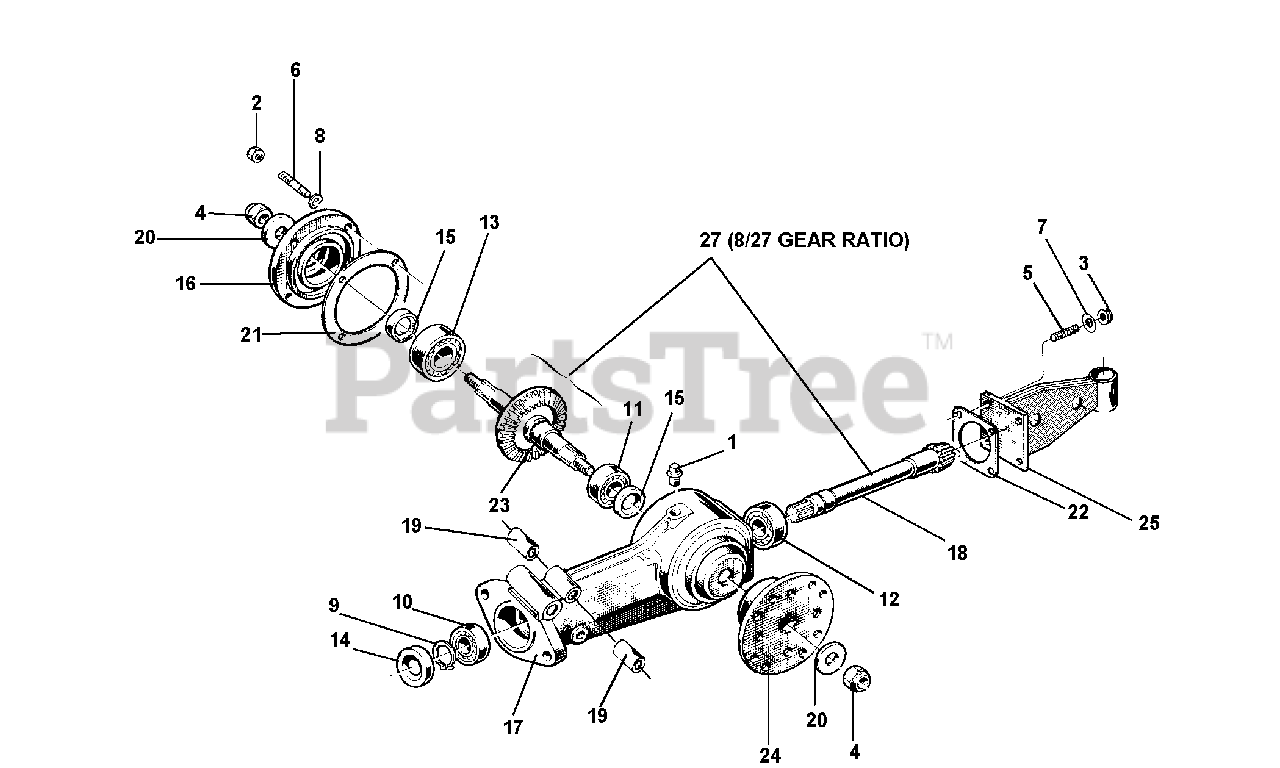

Gear Box (SN: 10527 - 139760) Parts Diagram

  • Title

1

BCS America 300.40001

PLUG 1/4

$5.49

$

In Stock, only 4 left!

0

2

BCS America 31241080

NUT, SELF LOCKING M8

$0.99

$

In Stock, Qty 10

0

3

BCS America 312.41085

NUT

$1.99

$

Usually ships in 5-8 days

0

4

BCS America 312.41141

NUT, SELF LOCKING M14 STANDARD

$1.99

$

In Stock, only 3 left!

0

5

BCS America 313.12078

STUD M8 X 32 X 14 X 14

$1.99

$

Usually ships in 5-8 days

0

6

BCS America 313.12081

STUD M8 X 38 X 14 X 14

$10.99

$

Usually ships in 5-8 days

0

7

BCS America 314.21083

SUPER WASHER 8 DIN

$1.49

$

In Stock, Qty 6

0

8

BCS America 314.23084

WASHER, LOCK 8.4

$0.99

$

In Stock, Qty 10

0

9

BCS America 35121020

CIRCLIP EXTERN. D 20

$1.49

$

In Stock, Qty 8

0

10

BCS America 37111200

BEARING 20 X 42 X 12 6004

$16.99

$

In Stock, only 1 left!

0

11

BCS America 371.11255

BEARING 25 X 52 X 15 6205

$15.99

$

In Stock, only 1 left!

0

12

BCS America 371.41201

BEARING 20 X 47 X 14 7204 B

$85.99

$

Usually ships in 5-8 days

0

13

BCS America 371.41252

BEARING

$

$

Currently unavailable

14

BCS America 382.12003

OIL SEAL 20 X 42 X 7 STANDARD

$7.49

$

In Stock, only 1 left!

0

15

BCS America 382.12503

OIL SEAL

$

$

Currently unavailable

16

BCS America 511.48428

COUPLING

$144.99

$

Usually ships in 5-8 days

0

17

BCS America 512.48405

ROTARY HOE CENTRAL ASSEMBLY

$

$

Currently unavailable

18

BCS America 524.48407

PINION SHAFT

$301.99

$

Usually ships in 5-8 days

0

19

BCS America 561.43464

SPACER

$7.99

$

Usually ships in 5-8 days

0

20

BCS America 561.48438

WASHER

$

$

Not available

21

BCS America 580.43407

GASKET

$2.49

$

In Stock, only 1 left!

0

22

BCS America 581.49859

ROTARY HOE GASKET

$

$

Currently unavailable

23

BCS America 590.48408

SHAFT WITH GEAR

$357.99

$

In Stock, only 1 left!

0

24

BCS America 590.48435

BLADE HOLDER FLANGE

$156.99

$

Usually ships in 5-8 days

0

25

BCS America 590.49853

REAR COVER FOR ROTARY HOE

$77.99

$

Usually ships in 5-8 days

0

26

BCS America 59248410

GEAR BOX COMPLETE/ROCKGUARD

$1121.99

$

Usually ships in 5-8 days

0

27

BCS America 593.48409

PINION AND GEAR SHAFT SET

$

$

Currently unavailable
