Tiller - BCS America Tiller Attachment for 700/800 Series Tractors (1995 & After) Tiller Hood (SN: 10000 & Above) Parts Diagram

3-Dog PTO Rotary Tiller Attachment

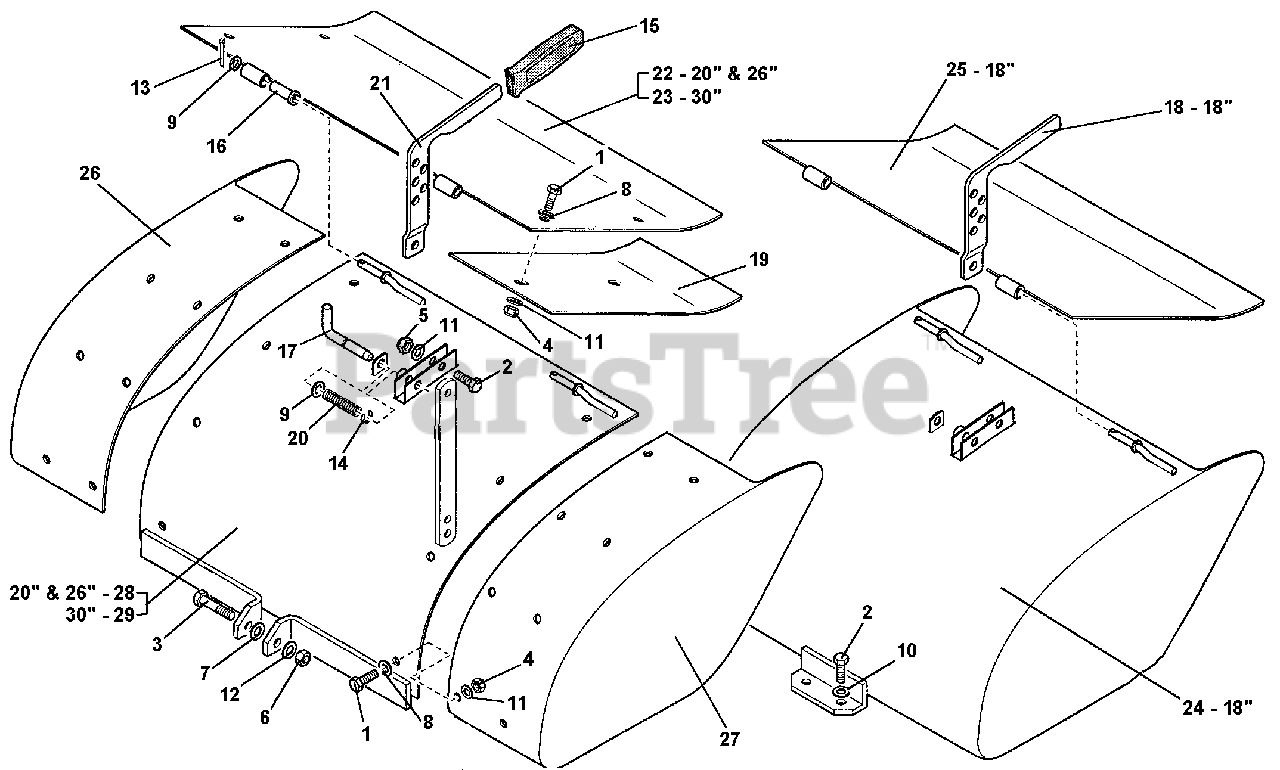

Tiller Hood (SN: 10000 & Above) Parts Diagram

  • Title

1

BCS America 311.11151

SCREW, M8X16

$1.99

$

In Stock, only 4 left!

0

2

BCS America 311.12151

SCREW, M8X25

$1.49

$

Usually ships in 5-8 days

0

3

BCS America 311.12294

SCREW, M12X85

$4.99

$

Usually ships in 5-8 days

0

4

BCS America 312.11080

NUT, M8

$0.99

$

In Stock, Qty 10

0

5

BCS America 312.41085

NUT, SELF LOCKING, M8

$1.99

$

Usually ships in 5-8 days

0

6

BCS America 312.41121

NUT, M12

$1.49

$

Usually ships in 5-8 days

0

7

BCS America 314.10131

FLAT WASHER

$0.99

$

Usually ships in 5-8 days

0

8

BCS America 314.11084

WASHER, FLAT, M8.4

$0.99

$

In Stock, only 4 left!

0

9

BCS America 314.11104

WASHER

$0.99

$

In Stock, Qty 10

0

10

BCS America 314.21083

WASHER, M8.4

$1.49

$

In Stock, Qty 6

0

11

BCS America 314.23084

WASHER, LOCK, M8.4

$0.99

$

In Stock, Qty 9

0

12

BCS America 314.23130

WASHER, LOCK, M13

$1.49

$

In Stock, only 2 left!

0

13

BCS America 341.10028

COTTER PIN

$0.99

$

In Stock, Qty 10

0

14

BCS America 352.11080

SNAP RING

$1.49

$

Usually ships in 5-8 days

0

15

BCS America 551.02714

KNOB

$14.99

$

Usually ships in 5-8 days

0

16

BCS America 551.42109

BUSHING

$2.99

$

Usually ships in 5-8 days

0

17

BCS America 561.52053

ADJUSTMENT PIN

$21.99

$

Usually ships in 5-8 days

0

18

BCS America 561.59372

KNIVE ROD

$65.99

$

Usually ships in 5-8 days

0

19

BCS America 561.59383

SIDE FLAP

$

$

Not available

20

BCS America 580.52050

SPRING

$2.99

$

Usually ships in 5-8 days

0

21

BCS America 590.49863

DEPTH ADJUSTMENT LEVER

$44.99

$

Usually ships in 5-8 days

0

22

BCS America 590.59356

CENTER FLAP, 20" & 26" TILLER

$141.99

$

In Stock, only 1 left!

0

23

BCS America 590.59360

CENTER FLAP 30" TILLER

$76.99

$

Usually ships in 5-8 days

0

24

BCS America 590.59365

TILLER HOOD, 18" TILLER

$259.99

$

Usually ships in 5-8 days

0

25

BCS America 590.59370

CENTER FLAP, 18" TILLER

$

$

Not available

26

BCS America 590.59379

RIGHT SIDE FENDER, 20" -30" TILLER

$175.99

$

Usually ships in 5-8 days

0

27

BCS America 590.59380

LEFT SIDE FENDER, 20" - 30" TILLER

$175.99

$

Usually ships in 5-8 days

0

28

BCS America 590.59381

TILLER HOOD, 20" & 26" TILLER

$

$

Currently unavailable

29

BCS America 590.59382

CENTER HOOD 30" TILLER

$

$

Not available
