Tiller - BCS America Tiller Attachment for 700/800 Series Tractors (1995 & After) Tines & Depth Control (SN: 10000 & Above) Parts Diagram

3-Dog PTO Rotary Tiller Attachment

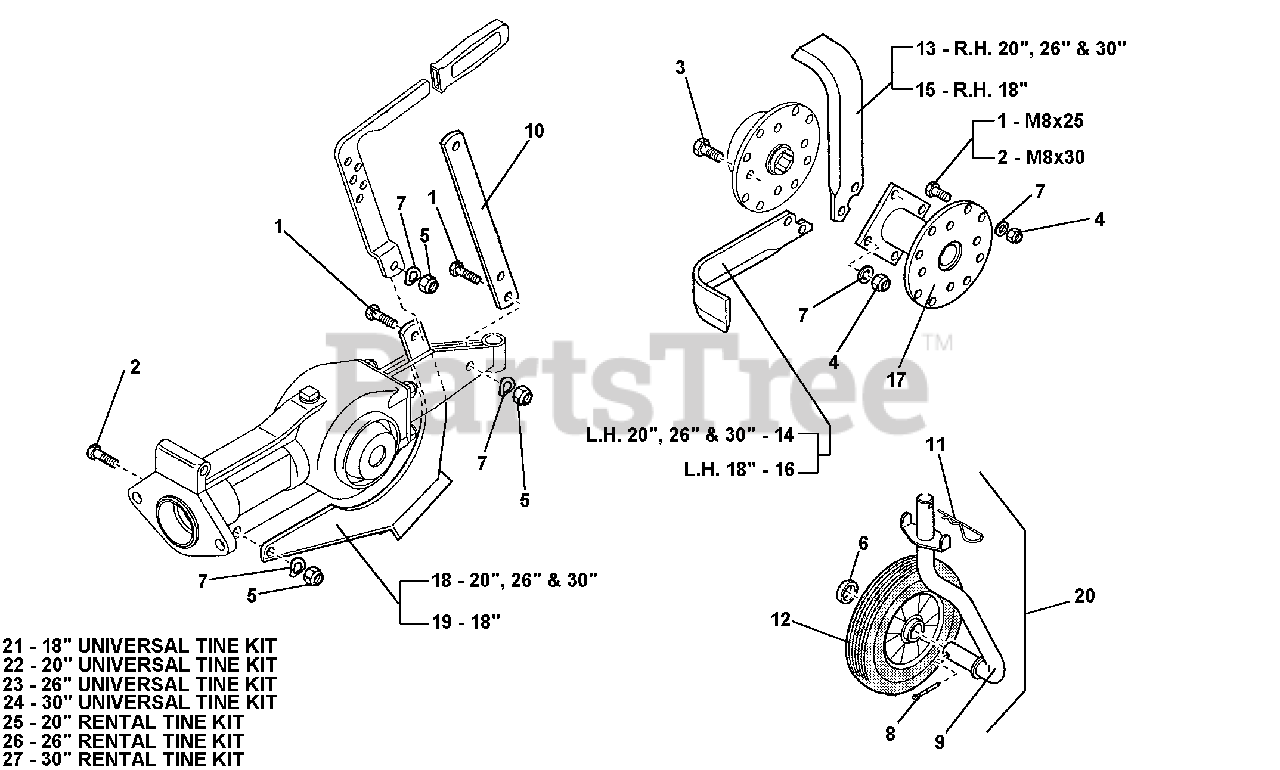

Tines & Depth Control (SN: 10000 & Above) Parts Diagram

  • Title

1

BCS America 311.12151

SCREW, M8X25

$1.49

$

Usually ships in 5-8 days

0

2

BCS America 311.12152

SCREW, M8X30

$1.49

$

Usually ships in 5-8 days

0

3

BCS America 311.12153

SCREW, M8X35

$1.49

$

In Stock, Qty 6

0

4

BCS America 312.41080

NUT, SELF LOCKING, M8

$0.99

$

In Stock, Qty 10

0

5

BCS America 312.41085

NUT, SELF LOCKING, M8

$1.99

$

Usually ships in 5-8 days

0

6

BCS America 314.00181

WASHER

$

$

Currently unavailable

7

BCS America 314.23084

WASHER, LOCK, M8.4

$0.99

$

In Stock, Qty 15

0

8

BCS America 341.10042

COTTER PIN

$0.99

$

Usually ships in 5-8 days

0

9

BCS America 561.42467

WHEEL SUPPORT PIN

$

$

Currently unavailable

10

BCS America 561.59363

HOOD ROD

$21.99

$

Usually ships in 5-8 days

0

11

BCS America 580.02052

PIN

$1.99

$

In Stock, only 3 left!

0

12

BCS America 580.42468

RUBBER WHEEL

$

$

Currently unavailable

13

BCS America 580.59275

TINE, R.H., 20" - 30" TILLER

$15.99

$

In Stock, only 2 left!

0

14

BCS America 580.59276

TINE, L.H., 20" - 30" TILLER

$15.99

$

In Stock, only 4 left!

0

15

BCS America 580.59277

TINE, R.H., 18" TILLER

$13.99

$

Usually ships in 5-8 days

0

16

BCS America 580.59278

TINE, L.H., 18" TILLER

$13.99

$

Usually ships in 5-8 days

0

17

BCS America 590.48422

SPACER KNIVES

$113.99

$

Usually ships in 5-8 days

0

18

BCS America 590.49850

CERNTAL KNIFE

$149.99

$

Usually ships in 5-8 days

0

19

BCS America 590.59231

CENTRAL KNIFE

$156.99

$

Usually ships in 5-8 days

0

20

BCS America 922.42465

TRANSPORT WHEEL ASSEMBLY

$

$

Currently unavailable

21

BCS America T18U

18" UNIVERSAL TINE KIT

$127.50

$

In Stock, only 1 left!

0

22

BCS America T20U

20" UNIVERSAL TINE KIT

$

$

Not available

23

BCS America T26U

26" UNIVERSAL TINE KIT

$184.50

$

In Stock, only 1 left!

0

24

BCS America T30U

30" UNIVERSAL TINE KIT

$234.00

$

Usually ships in 5-8 days

0

25

BCS America T20R

20" RENTAL TINE KIT

$287.78

$

Usually ships in 5-8 days

0

26

BCS America T26R

26" RENTAL TINE KIT

$319.50

$

Usually ships in 5-8 days

0

27

BCS America T30R

30" RENTAL TINE KIT

$

$

Not available
