Tiller - BCS America Tiller Attachment for 745 Tractor (1984 - 1994) Gear Box (SN: 10000 - 131436) Parts Diagram

745 Rotary Tiller Attachment

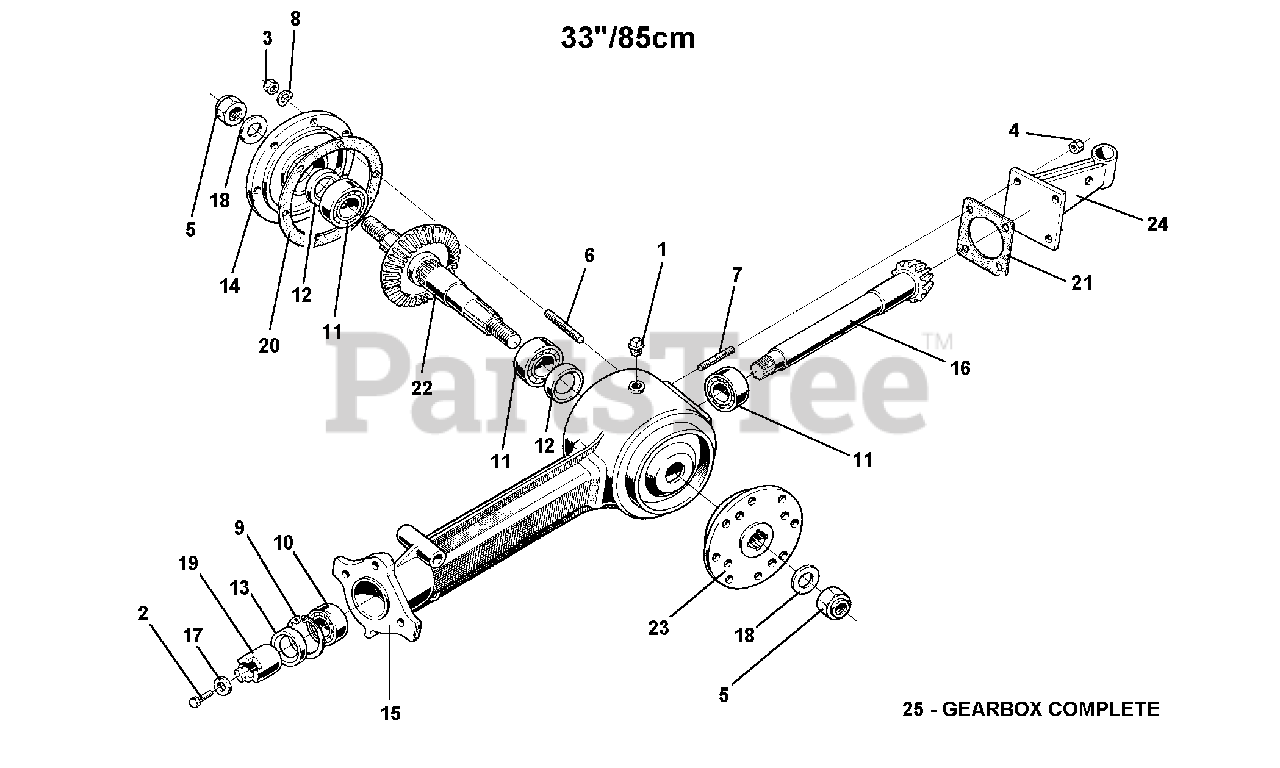

Gear Box (SN: 10000 - 131436) Parts Diagram

  • Title

1

BCS America 300.40001

PLUG 1/4 GAS

$5.49

$

In Stock, only 4 left!

0

2

BCS America 311.12093

SCREW M6 X 20

$0.99

$

In Stock, Qty 10

0

3

BCS America 31241080

NUT, SELF LOCKING M8

$0.99

$

In Stock, Qty 10

0

4

BCS America 312.41104

NUT

$5.99

$

Usually ships in 5-8 days

0

5

BCS America 312.41181

NUT, SELF LOCKING M18 X 1.5 STD

$4.49

$

Usually ships in 5-8 days

0

6

BCS America 313.12081

STUD M8 X 38 X 16 X 16 8G

$10.99

$

Usually ships in 5-8 days

0

7

BCS America 313.12101

STUD M10 X 37 X 19 X 15 8G

$7.99

$

Usually ships in 5-8 days

0

8

BCS America 314.23084

WASHER, LOCK 8.4

$0.99

$

In Stock, Qty 10

0

9

BCS America 351.11052

CIRCLIP, INTERN D 52

$1.99

$

Usually ships in 5-8 days

0

10

BCS America 371.11255

BEARING 25 X 52 X 15 6205

$15.99

$

In Stock, only 1 left!

0

11

BCS America 37111300

BEARING 30 X 62 X 16 6206

$

$

Not available

12

BCS America 382.13001

SEAL, OIL 30 X 52 X 10 STANDARD

$15.99

$

Usually ships in 5-8 days

0

13

BCS America 382.14001

SEAL, OIL 40 X 52 X 7 STANDARD

$11.99

$

Usually ships in 5-8 days

0

14

BCS America 511.49676

SIDE COVER

$335.99

$

Usually ships in 5-8 days

0

15

BCS America 512.49675

ROTARY HOE CENTRAL ASSEMBLY

$1002.99

$

Usually ships in 5-8 days

0

16

BCS America 524.49681

SHAFT

$

$

Currently unavailable

17

BCS America 561.42291

WASHER 7 X 25 X 4

$1.99

$

Usually ships in 5-8 days

0

18

BCS America 56142420

WASHER, HOE LOCK

$

$

Not available

19

BCS America 56449680

ROTARY HOE COUPLING

$175.99

$

Usually ships in 5-8 days

0

20

BCS America 580.49677

COVER GASKET

$2.99

$

Usually ships in 5-8 days

0

21

BCS America 580.49696

COVER GASKET

$1.99

$

Usually ships in 5-8 days

0

22

BCS America 590.49683

HOE SHAFT

$

$

Currently unavailable

23

BCS America 590.49687

BLADE HOLDER FLANGE

$177.99

$

Usually ships in 5-8 days

0

24

BCS America 590.49697

REAR COVER

$126.99

$

Usually ships in 5-8 days

0

25

BCS America 599.90108

GEARBOX COMPLETE

$2067.99

$

Usually ships in 5-8 days

0
