TLB25-35BV - Scag Industrial Tow-Behind Truck Loader, 35hp Vanguard (SN: P5200001 - P5299999) IMPELLER DRIVE ASSEMBLY Parts Diagram

Industrial Tow-Behind Truck Loader, 35hp Vanguard

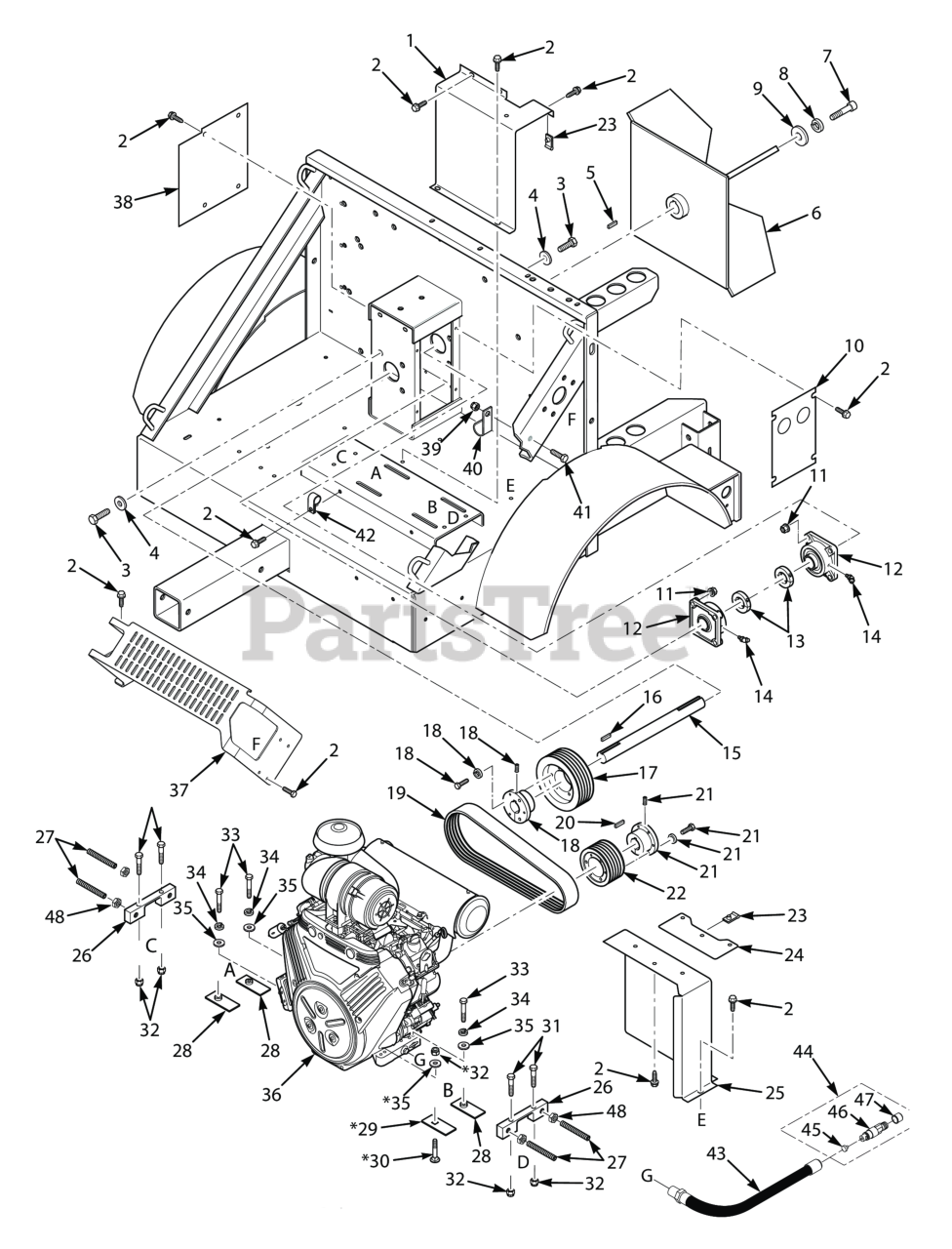

IMPELLER DRIVE ASSEMBLY Parts Diagram

  • Title

1

Scag 426403

Belt Cover, Front

$59.99

$

Usually ships in 2-12 days

0

2

Scag 04011-12

Screw, Hex Head 5/16-18 x 3/4" Self Tap

$0.99

$

In Stock, only 2 left!

0

3

Scag 04001-183

Bolt, Hex Head 1/2-13 x 1-3/4"

$1.49

$

In Stock, Qty 6

0

4

Scag 04040-13

Flat Washer, 1/2 (.562 x 1.375 x .109)

$0.99

$

In Stock, Qty 6

0

5

Scag 04063-33

Key, 3/8 x 3/8 x 4-1/2"

$17.99

$

Usually ships in 2-12 days

0

6

Scag 452445

Impeller, STL 4 Blade - 24-3/4" OD

$993.99

$

Usually ships in 2-12 days

0

7

Scag 04015-23

SHCS, 5/8-18 x 2-1/2"

$5.49

$

Usually ships in 2-12 days

0

8

Scag 04030-07

Lockwasher, 5/8" Spring

$1.49

$

In Stock, Qty 20+

0

9

Scag 04043-06

Flatwasher, 5/8-.688 x 1-3/4 x .134 HD

$1.99

$

In Stock, Qty 20+

0

10

Scag 426405

Belt Cover, LH - Gas

$

$

Not available

11

Scag 04021-07

HEX LOCKNUT, ELASTIC STOP, 1/2-13

$0.99

$

In Stock, Qty 20+

0

12

Scag 484909

Bearing, Flange Mount

$256.99

$

Usually ships in 2-12 days

0

13

Scag 485096

Collar. 2 pc 1-7/16

$35.99

$

Usually ships in 2-12 days

0

14

Scag 48114-07

Grease Fitting

$2.99

$

In Stock, only 2 left!

0

15

Scag 43934

Shaft, Impeller - TLB25

$

$

Currently unavailable

16

Scag 04063-34

Key, 3/8 x 3/8 x 2-1/4"

$2.49

$

Usually ships in 2-12 days

0

17

Scag 484995

Pulley, Sheave 3v6.9 x 5 SK

$241.99

$

Usually ships in 2-12 days

0

18

Scag 484993

Bushing, Taper - SK 1-7/16" (incl. hardware)

$71.99

$

Usually ships in 2-12 days

0

19

Scag 484800

Belt, R3V x 450-5

$336.99

$

Usually ships in 2-12 days

0

20

Scag 04063-22

KEY, 3/8 X 1-1/4

$1.99

$

Usually ships in 2-12 days

0

21

Scag 484996

Hub, Taper - SDS 1-7/16 (incl. hardware)

$45.99

$

Usually ships in 2-12 days

0

22

Scag 484994

Pulley, Sheave 3v6.9 x 5 SK

$170.99

$

Usually ships in 2-12 days

0

23

Scag 04110-02

U-Nut, 5/16-18

$3.49

$

Usually ships in 2-12 days

0

24

Scag 426407

Belt Guard, Engine

$44.99

$

Usually ships in 2-12 days

0

25

Scag 426404

Belt Guard, Rear

$69.99

$

Usually ships in 2-12 days

0

26

Scag 485098

Block, Engine Adjusting

$51.99

$

Usually ships in 2-12 days

0

27

Scag 04012-13

SET SCREW, 1/2-13 X 4 HEX SOCK

$9.99

$

Usually ships in 2-12 days

0

28

Scag 452534

Nut Plate Weldment - Briggs (x3)

$34.99

$

Usually ships in 2-12 days

0

28

Scag 452535

Nut Plate Weldment - Kohler (x4)

$45.99

$

Usually ships in 2-12 days

0

29

Scag 426391

Nut Plate - Briggs (x1)

$8.99

$

Usually ships in 2-12 days

0

30

Scag 04003-44

Bolt, Carriage 5/16-18 x 5/16-18 x 2-1/4"

$1.49

$

Usually ships in 2-12 days

0

31

Scag 04001-39

BOLT, HEX HEAD, 5/16-18 X 2-1/4

$0.99

$

In Stock, only 3 left!

0

32

Scag 04021-10

HEX NUT, ELASTIC STOP LOCK, 5/16-18

$0.99

$

In Stock, Qty 20+

0

33

Scag 04001-39

BOLT, HEX HEAD, 5/16-18 X 2-1/4

$0.99

$

In Stock, only 3 left!

0

33

Scag 04001-45

Capscrew, Hex Head 3/8-16 x 2.0"

$0.99

$

In Stock, Qty 13

0

34

Scag 04030-03

Lockwasher, 5/16 (.317 x .586 x .078) Helical Spring

$0.99

$

In Stock, Qty 20+

0

34

Scag 04030-04

Lockwasher, 3/8" Spring, Kawasaki FX / FS

$0.99

$

In Stock, Qty 20+

0

35

Scag 04040-15

Flatwasher, 5/16-.375 x .875 x .083 (35BV & 37BV-EFI)

$0.99

$

In Stock, Qty 9

0

35

Scag 04041-07

Flatwasher, 3/8" Special (.391 x .938 x .105)

$0.99

$

In Stock, Qty 16

0

36

Scag 484959

Engine, Briggs Vanguard 35BV (not available through Scag Power Equipment)

$

$

Currently unavailable

36

Scag 484960

Engine, Kohler Command 37CH (not available through Scag Power Equipment)

$

$

Currently unavailable

37

Scag 426457

Muffler Guard (Briggs BV)

$188.99

$

Usually ships in 2-12 days

0

37

Scag 452530

Muffler Guard Weldment (Kohler CH)

$237.99

$

Usually ships in 2-12 days

0

38

Scag 426401

Belt Guard, RH - Gas

$32.99

$

Usually ships in 2-12 days

0

39

Scag 04021-09

HEX NUT, ELASTIC STOP LOCK, 3/8-16

$0.99

$

In Stock, Qty 20+

0

40

Scag 48030-21

Clamp, J-Clip - Oil Drain Hose (not shown)

$13.99

$

Usually ships in 2-12 days

0

41

Scag 04001-18

Bolt, Hex Head, 3/8-16 x 3/4"

$0.99

$

In Stock, Qty 7

0

42

Scag 48030-11

Clamp, Double Cable 5/8" ID.

$2.49

$

Usually ships in 2-12 days

0

43

Scag 484599

Hose, OIl Drain, Briggs & Stratton

$62.99

$

Usually ships in 2-12 days

0

43

Scag 484596

Hose, Oil Drain - Kohler (incl. # 45, 46, 47,)

$

$

Currently unavailable

44

Scag 484593

Valve Assembly, Oil Drain

$10.99

$

In Stock, only 2 left!

0

45

Scag 484586

Seal

$0.99

$

Usually ships in 2-12 days

0

46

Scag 48603-12

O-Ring

$0.99

$

In Stock, Qty 10

0

47

Scag 484585

O-Ring

$0.99

$

In Stock, Qty 5

0

48

Scag 04020-07

NUT, HEX #10-32

$0.99

$

In Stock, only 3 left!

0
