TLB25-49KBD - Scag Industrial Tow-Behind Truck Loader, 49hp Kubota Diesel (SN: R2600001 - R2699999) KUBOTA ENGINE ASSEMBLY Parts Diagram

Industrial Tow-Behind Truck Loader, 49hp Kubota Diesel

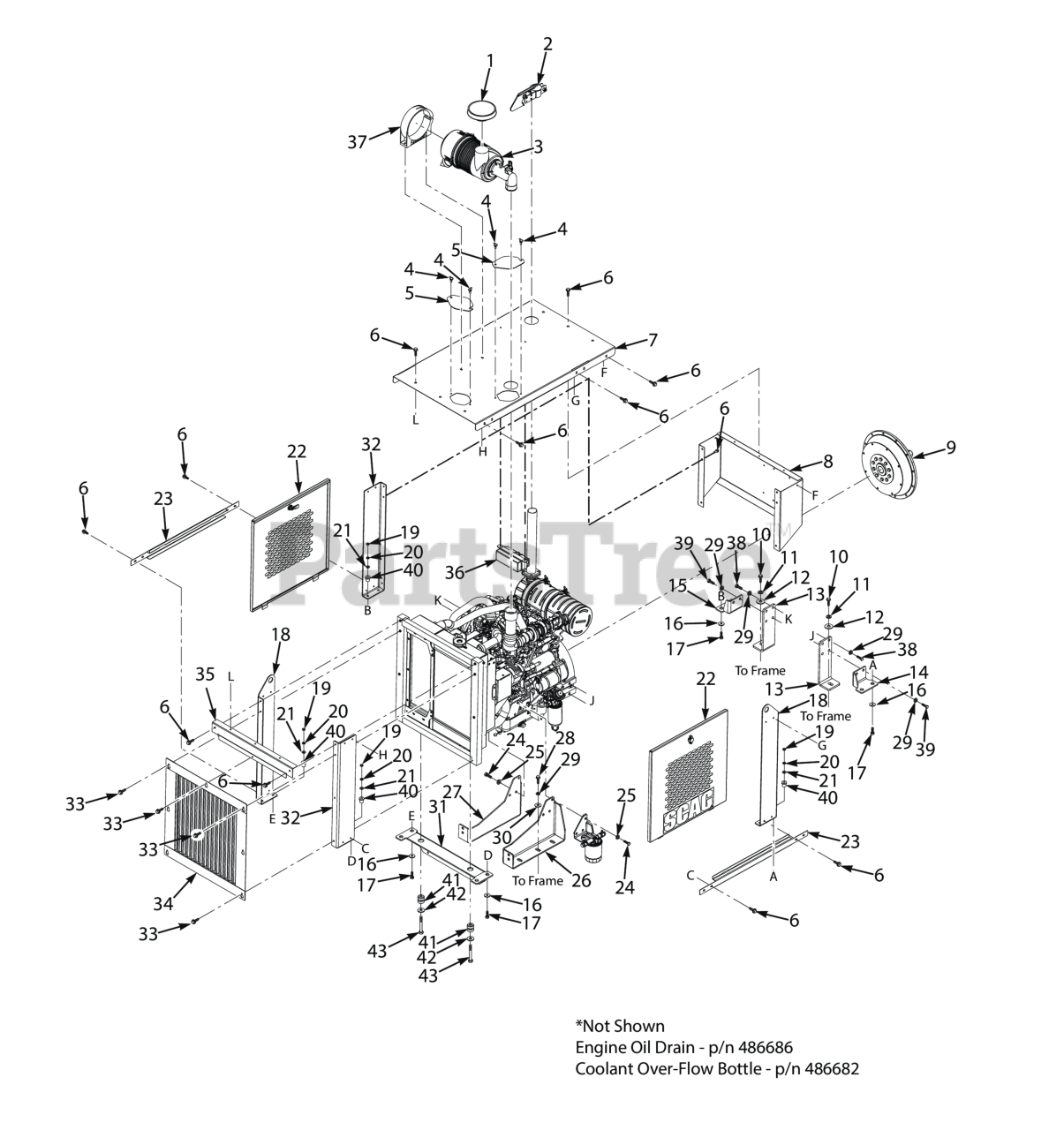

KUBOTA ENGINE ASSEMBLY Parts Diagram

  • Title

1

Scag 486678

Rain Cap, Air Cleaner

$83.99

$

Usually ships in 2-12 days

0

2

Scag 486680

Rain Cap Assy, Exhaust

$70.99

$

Usually ships in 2-12 days

0

3

Scag 486674

Air Cleaner Assy.

$1671.99

$

Usually ships in 2-12 days

0

Scag 486676

Air Filter, Safety

$150.99

$

Usually ships in 2-12 days

0

Scag 486677

Air Filter, Primary

$60.99

$

Usually ships in 2-12 days

0

4

Scag 04129-01

Screw, Thumb, 5/16-18 x .625

$

$

Currently unavailable

5

Scag 426691

Enclosure, Cover

$58.99

$

Usually ships in 2-12 days

0

6

Scag 04017-16

Capscrew, 5/16-18 x .75 Serrated Flange Hex Head

$0.99

$

In Stock, Qty 10

0

7

Scag 463254

Top, Enclosure

$667.99

$

Usually ships in 2-12 days

0

8

Scag 463258

Front, Enclosure

$454.99

$

Usually ships in 2-12 days

0

9

Scag 486673

Stub Shaft Assy.

$4391.99

$

Usually ships in 2-12 days

0

10

Scag 04001-131

Bolt, Hex Head, 5/8-11 x 1-3/4"

$2.49

$

Usually ships in 2-12 days

0

11

Scag 04030-07

Lockwasher, 5/8" Spring

$1.49

$

In Stock, Qty 20+

0

12

Scag 04043-06

Flatwasher, 5/8-.688 x 1-3/4 x .134 HD

$1.99

$

In Stock, Qty 20+

0

13

Scag 428337

Engine Mount, Rear

$93.99

$

Usually ships in 2-12 days

0

14

Scag 428338

Support, Enclosure, LH Rear

$179.99

$

Usually ships in 2-12 days

0

15

Scag 428339

Support, Enclosure, RH Rear

$179.99

$

Usually ships in 2-12 days

0

16

Scag 04041-41

FW, .375-.406 X 1.25 X .125

$0.99

$

Usually ships in 2-12 days

0

17

Scag 04001-21

Bolt, Hex Head 3/8-16 x 1-3/4" (Kohler EFI)

$0.99

$

In Stock, Qty 20+

0

18

Scag 463255

Lifting Rail, Enclosure

$237.99

$

Usually ships in 2-12 days

0

19

Scag 04020-04

HEX LOCKNUT, ELASTIC STOP, 3/8-16

$0.99

$

In Stock, Qty 20+

0

20

Scag 04030-04

Lockwasher, 3/8" Spring, Kawasaki FX / FS

$0.99

$

In Stock, Qty 20+

0

21

Scag 04040-05

Flatwasher, 3/8 (.406 x .812 x .065)

$0.99

$

In Stock, Qty 15

0

22

Scag 463259

Side Panel, Enclosure

$306.99

$

Usually ships in 2-12 days

0

23

Scag 428340

Enclosure, Bottom Rail

$126.99

$

Usually ships in 2-12 days

0

24

Scag 04002-31

HHCS, M12-1.125 X 30 LG

$3.49

$

Usually ships in 2-12 days

0

25

Scag 04033-03

LKWASH, M12 METRIC SPRING

$0.99

$

Usually ships in 2-12 days

0

26

Scag 453134

Engine Mount, LH Front

$280.99

$

Usually ships in 2-12 days

0

27

Scag 453135

Engine Mount, RH Front

$747.99

$

Usually ships in 2-12 days

0

28

Scag 04001-183

Bolt, Hex Head 1/2-13 x 1-3/4"

$1.49

$

In Stock, Qty 6

0

29

Scag 04030-06

Lockwasher, 1/2" Spring

$0.99

$

In Stock, only 2 left!

0

30

Scag 04043-08

Washer, Flat, 1/2-.562 x 1.375 x .109 HD

$1.49

$

In Stock, Qty 10

0

31

Scag 453136

Support Weldment, Radiator Lower

$282.99

$

Usually ships in 2-12 days

0

32

Scag 463256

Side Rail, Enclosure

$259.99

$

Usually ships in 2-12 days

0

33

Scag 04017-15

CAP SCREW, 5/16-18 X 1/2" SERRATED FLANGE HEX

$0.99

$

In Stock, Qty 9

0

34

Scag 453137

Debris Screen Weldment

$1116.99

$

Usually ships in 2-12 days

0

35

Scag 463257

Enclosure Support, Rear

$248.99

$

Usually ships in 2-12 days

0

36

Scag 486684

Controller

$2621.99

$

Usually ships in 2-12 days

0

37

Scag 486675

Band, Air Cleaner

$279.99

$

Usually ships in 2-12 days

0

38

Scag 04001-70

Bolt, Hex Head 1/2-13 x 1-1/4"

$1.49

$

In Stock, Qty 5

0

39

Scag 04001-71

Bolt, Hex Head 1/2-13 x 1-1/2", (STT-52 & STTII-52)

$1.49

$

In Stock, only 4 left!

0

40

Scag 485455

Isolator Mount

$

$

Currently unavailable

41

Scag 485454

Isolator Mount, Sleeved

$

$

Currently unavailable

42

Scag 04041-40

FW, .50-.531 X 2.0 X .125

$1.99

$

Usually ships in 2-12 days

0

43

Scag 04001-190

Bolt, Hex Head 1/2-13 x 2-3/4" (48V & 52V - One Weight)

$2.49

$

In Stock, Qty 6

0

Scag 486679

Tube, Exhaust

Note: Item Not Shown

$225.99

$

Usually ships in 2-12 days

0

Scag 486681

Gasket, Exhaust

Note: Item Not Shown

$12.99

$

Usually ships in 2-12 days

0
