TLBC35201BVG (3800029) - Giant-Vac Trailer Mount Truck Loader Vacuum Chipper, 35hp Intake Group Parts Diagram

Trailer Mount Truck Loader Vacuum Chipper, 35hp

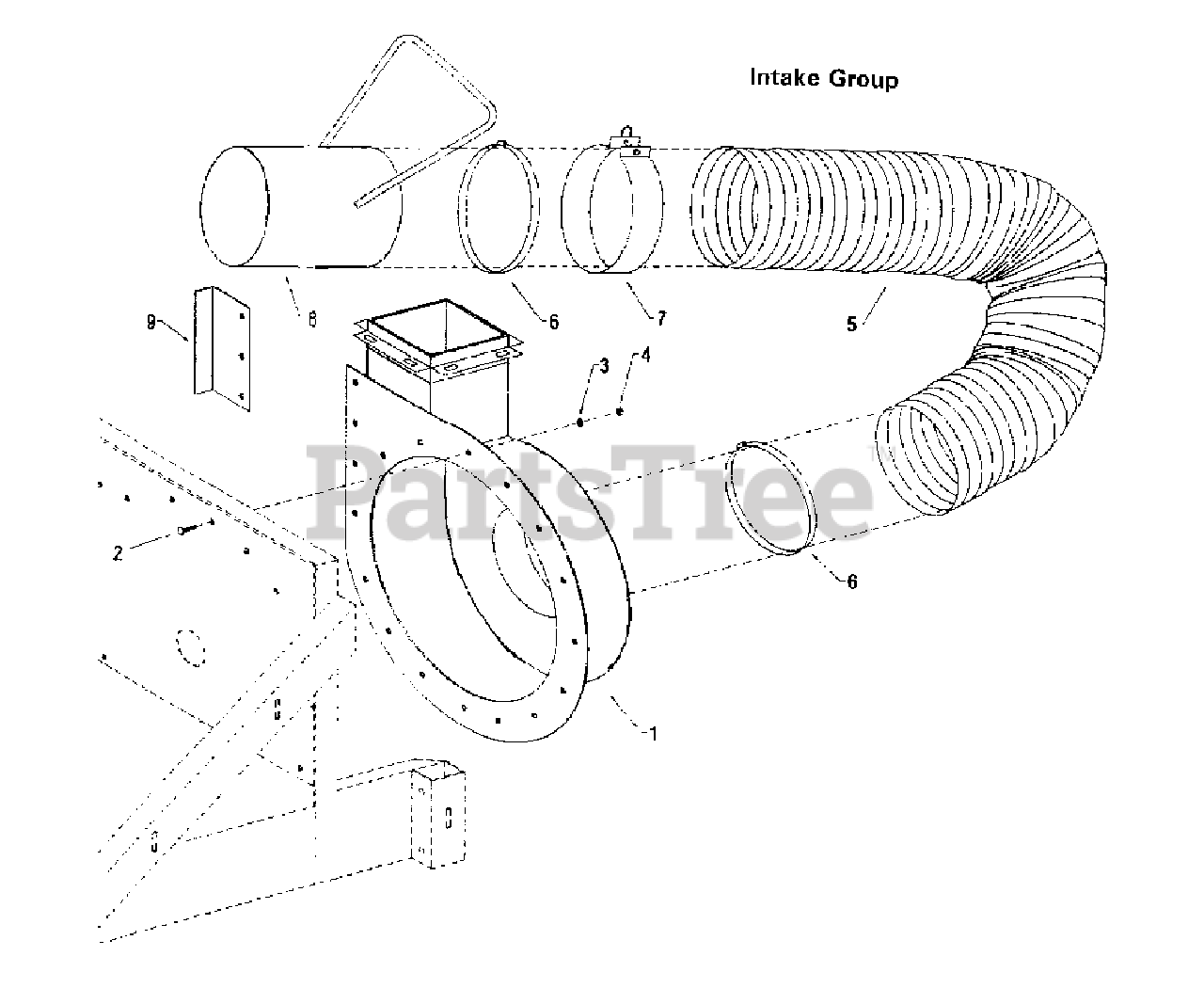

Intake Group Parts Diagram

  • Title

1

Giant-Vac 3010239

Housing, Impeller - Complete with Liner Kit Below

$

$

Currently unavailable

--

Giant-Vac 3070865

Liner, 2-pc Replaceable Wear - with Hardware (Not Shown)

$

$

Not available

2

Giant-Vac 3031033

3/8-16 x 1 Hex Bolt
(Superseded to 703407)

$11.99

$

In Stock, Qty 5

0

3

Giant-Vac 3031008

3/8 Lock Washer
(Superseded to 703454)

$3.49

$

In Stock, Qty 11

0

4

Giant-Vac 3031009

3/8-16 Hex Nut
(Superseded to 7091302SM)

$4.49

$

In Stock, Qty 9

0

5

Giant-Vac 3034019

Hose, Intake 12" x 10'

$

$

Currently unavailable

6

Giant-Vac 3034020

Clamp, Hose 12"

$

$

Currently unavailable

6

3034031

Clamp, Hose 12" with Safety Swtich Activator Plate

$

$

Not available

7

Giant-Vac 3040110

Band, Hose Support 12" with Hardware

$

$

Currently unavailable

--

Giant-Vac 3031141

5/16-18 x 3-1/2 Hex Bolt (Support Band Hardware) (Not Shown)

$

$

Not available

--

Giant-Vac 3031004

5/16-18 Hex Nut (Not Shown)
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

8

Giant-Vac 3020165

Nozzle, Intake 12" w/Adjustable Handle

$

$

Not available

--

3020168

Handle, Adjustable with Foam Grip (Not Shown)

$

$

Not available

9

Giant-Vac 3027268

Plate, Hose Protector

$

$

Currently unavailable
