TLBR3510252BVG (3800026) - Giant-Vac 10-Yard Hydraulic Dump Self-Contained Loader, 35hp Trailer Frame Parts Diagram

10-Yard Hydraulic Dump Self-Contained Loader, 35hp

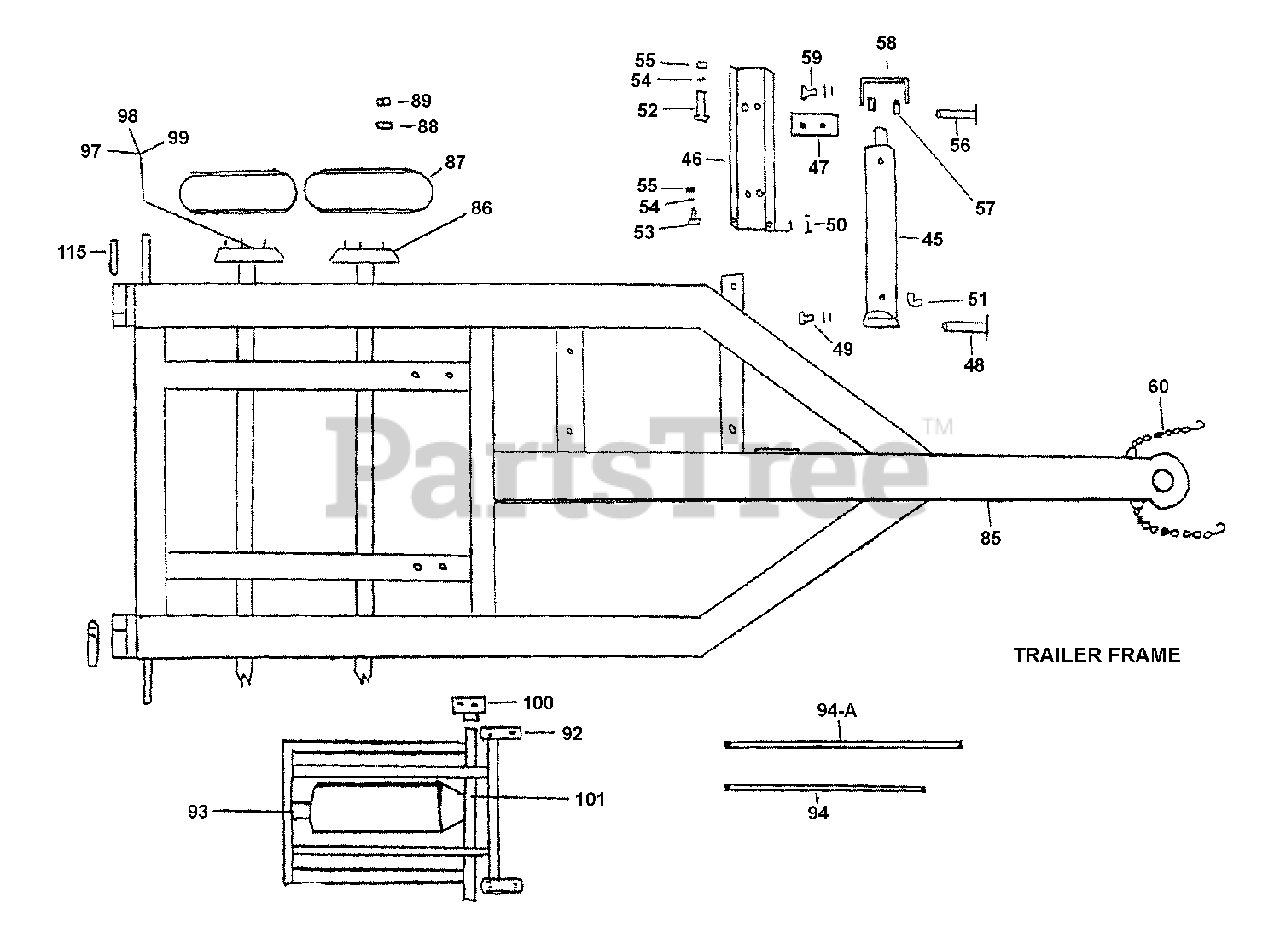

Trailer Frame Parts Diagram

  • Title

45

Giant-Vac 3061017

Hydraulic Cylinder 24" (Hydraulic Jack Let)

$

$

Currently unavailable

46

Giant-Vac 3027196

Cylinder Mounting Bracket

$

$

Currently unavailable

47

Giant-Vac 3027197

Cylinder Clamp Bracket

$

$

Currently unavailable

48

Giant-Vac 3031522

Cylinder Top Mounting Pin 1-1/4 x 7

$

$

Currently unavailable

49

3031523

1/2-13 x 1-1/4 Bolt/Lock Washer/Flat Washer Group

$

$

Not available

50

Giant-Vac 3031524

3/8 x Clevis Pin & Bridge Pin

$

$

Not available

51

Giant-Vac 3061074

Hydraulic Fitting - 2501-6-8

$

$

Not available

52

Giant-Vac 3031525

1/2-13 x 5-1/2 Hex Bolt (Clamp Bolt)

$

$

Not available

53

Giant-Vac 3031833

5/8-11 x 1-1/2 Hex Bolt

$

$

Currently unavailable

54

Giant-Vac 3031834

5/8 Flat Washer (Modified 'D' Shape)

$

$

Currently unavailable

55

Giant-Vac 3031528

5/8-11 Hex Nut

$

$

Currently unavailable

56

Giant-Vac 3031529

Jack Foot Pin 1-1/4 x 5

$

$

Currently unavailable

57

Giant-Vac 3031835

1-1/4 ID x 3/4 Spacer

$

$

Currently unavailable

58

Giant-Vac 3027198

Jack Foot

$

$

Currently unavailable

59

3031523

1/2-13 x 1-1/4 Bolt/Lock Washer/Flat Washer Group

$

$

Not available

60

Giant-Vac 3033135

Safety Chain (Set of 2)

$

$

Currently unavailable

85

3027377

Trailer Frame (29 HP)

$

$

Not available

85

3027378

Trailer Frame (35 HP)

$

$

Not available

86

Giant-Vac 3033129

Axle and Spring Assembly

$

$

Currently unavailable

87

Giant-Vac 3033125

Tire & Rim Assembly 8-14.5LT

$

$

Currently unavailable

88

Giant-Vac 3033130

Rim Lock

$

$

Currently unavailable

89

Giant-Vac 3033131

Lug Nut

$

$

Currently unavailable

92

Giant-Vac 3027191

Hoist Box Brackets

$

$

Currently unavailable

93

3061112

Hoist Assembly - Complete

$

$

Not available

94

Giant-Vac 3061052

Hydraulic Hose - 1/2 x 123

$

$

Currently unavailable

94A

Giant-Vac 3061054

Hydraulic Hose - 1/2 x 143

$

$

Currently unavailable

97

Giant-Vac 3033132

Dust Cap

$

$

Not available

98

3033133

Bearing Seal

$

$

Not available

99

3033134

Bearing

$

$

Not available

100

Giant-Vac 3027192

Hoist Trailer Bracket

$

$

Currently unavailable

101

Giant-Vac 3031503

Hoist Pin

$

$

Currently unavailable

115

Giant-Vac 3031639

Tail Light Assembly with Mounting Ring

$

$

Currently unavailable

115A

Giant-Vac 3031562

#12 x 3/4 Self Tap Screw (Taillight Grounding Screw)
(Superseded to 1723636SM)

Note: not shown

$2.99

$

In Stock, only 2 left!

0
