TLD49251JD (3800013) - Giant-Vac Trailer Mount Truck Loader Vacuum, 49hp Impeller Drive Group Parts Diagram

Trailer Mount Truck Loader Vacuum, 49hp

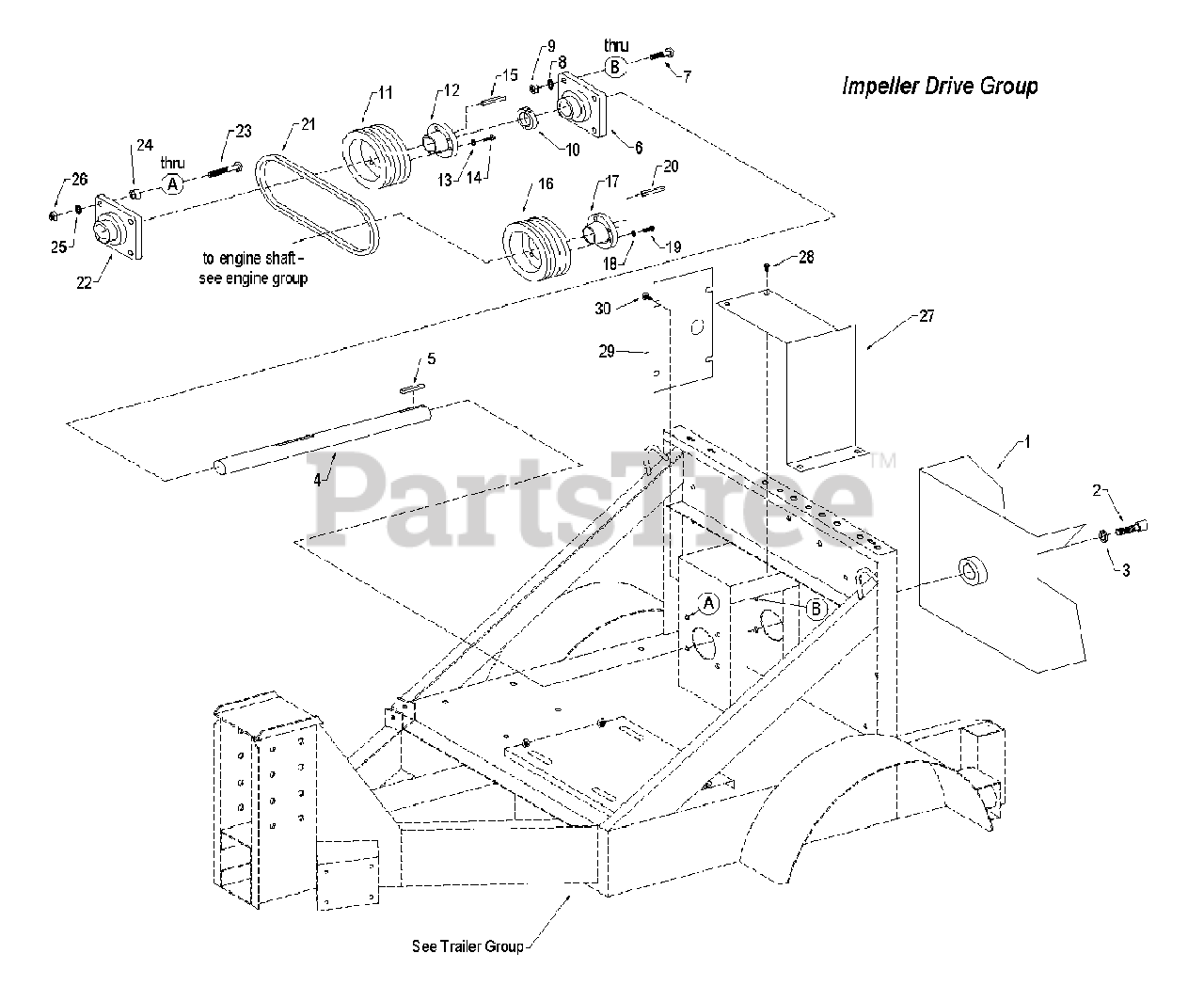

Impeller Drive Group Parts Diagram

  • Title

1

Giant-Vac 3021518

Impeller

$

$

Currently unavailable

2

Giant-Vac 3031327

Bolt, impeller – 5/8-11 x 2

$

$

Currently unavailable

3

Giant-Vac 3031326

Washer, lock - 5/8"

$

$

Not available

4

Giant-Vac 3036196

Shaft, impeller

$

$

Currently unavailable

5

3031127

Key, impeller

$

$

Not available

6

Giant-Vac 3036163

Bearing unit - 1-7/16

$

$

Currently unavailable

7

Giant-Vac 3031147

Bolt, hex - 1/2-13 x 1-1/2"

$

$

Currently unavailable

8

Giant-Vac 3031078

Washer, lock - 1/2"

$

$

Currently unavailable

9

Giant-Vac 3031022

Nut, hex - 1/2-13

$

$

Currently unavailable

10

Giant-Vac 3031711

Collar, split, 2 pc - 1-7/16

$

$

Not available

11

Giant-Vac 3036296

Pulley, impeller drive

$

$

Not available

12

Giant-Vac 3036232

Bushing, pulley - SKX1-7/16

$

$

Not available

13

Giant-Vac 3031003

Washer, lock – 5/16 – supplied with bushing #12
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

14

Bolt, hex – 5/16-18 x 2 full thread – supplied with bushing #12

$

$

Not available

15

Giant-Vac 3031677

Key, shaft

$

$

Not available

16

Giant-Vac 3036296

Pulley, impeller drive

$

$

Not available

17

Giant-Vac 3036297

Bushing, pulley - SKX1-1/2

$

$

Not available

18

Giant-Vac 3031003

Washer, lock – 5/16 – supplied with bushing #12
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

19

Bolt, hex – 5/16-18 x 2 full thread – supplied with bushing #12

$

$

Not available

20

Giant-Vac 3031677

Key, shaft

$

$

Not available

21

Giant-Vac 3036298

Belt, impeller drive - 3VX450

$

$

Not available

22

Giant-Vac 3036163

Bearing unit - 1-7/16

$

$

Currently unavailable

23

Giant-Vac 3031740

Bolt, hex - 1/2-13 x 2"

$

$

Currently unavailable

24

Giant-Vac 3031460

Spacer - 1/2 id x 5/8

$

$

Currently unavailable

25

Giant-Vac 3031078

Washer, lock - 1/2"

$

$

Currently unavailable

26

Giant-Vac 3031022

Nut, hex - 1/2-13

$

$

Currently unavailable

27

Giant-Vac 3027400

Cover, Drive belt top

$

$

Currently unavailable

28

Giant-Vac 3031660

Bolt, 'F' thread - 5/16 x 3/4

$

$

Currently unavailable

29

Giant-Vac 3027399

Cover, Drive belt side

$

$

Currently unavailable

30

Giant-Vac 3031660

Bolt, 'F' thread - 5/16 x 3/4

$

$

Currently unavailable
