TLS20-18BV - Scag Skid-Mount Truck Loader, 18hp Vanguard (SN: P4800001 - P4899999) ELECTRICAL SYSTEM AND THROTTLE CONTROL Parts Diagram

Skid-Mount Truck Loader, 18hp Vanguard

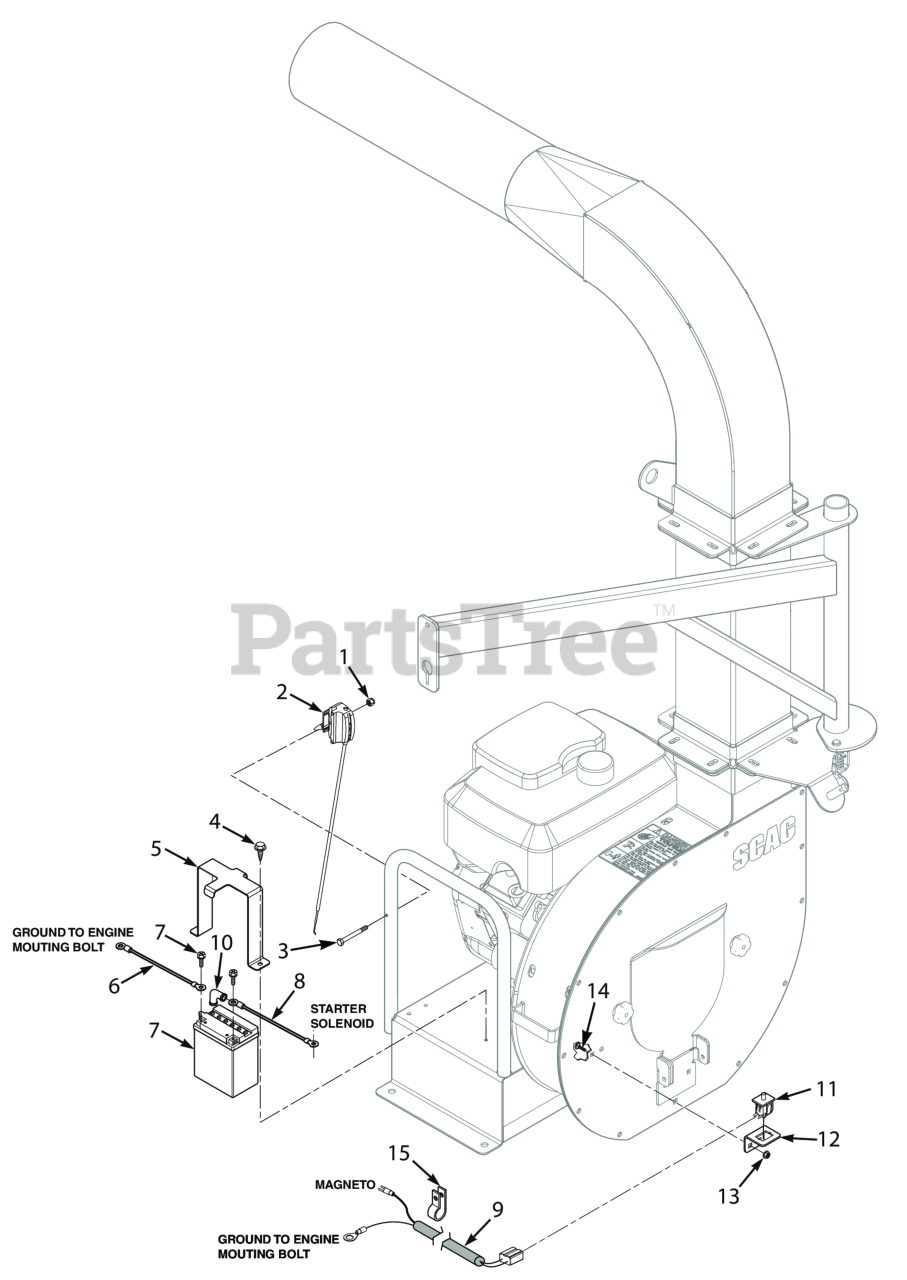

ELECTRICAL SYSTEM AND THROTTLE CONTROL Parts Diagram

  • Title

1

Scag 04021-08

HEX, NUT, ELASTIC STOP LOCK, 1/4-20

$0.99

$

In Stock, Qty 10

0

2

Scag 485140

Throttle Control

$76.99

$

Usually ships in 2-12 days

0

3

Scag 04001-206

Bolt, 1/4-20 x 2-1/2"

$0.99

$

Usually ships in 2-12 days

0

4

Scag 04011-24

Screw, 1/4-20 x .625 Self Tap

$0.99

$

Usually ships in 2-12 days

0

5

Scag 426140

Bracket, Battery

$49.99

$

Usually ships in 2-12 days

0

6

Scag 48029-07

Battery Cable, 18" Black (Kohler)

$12.99

$

Usually ships in 2-12 days

0

7

Scag 484805

Battery (not available through Scag)

$

$

Currently unavailable

8

Scag 48029-09

Battery Cable, Red 9" (Briggs & Stratton)

$10.99

$

Usually ships in 2-12 days

0

9

Scag 485141

Wire Harness, Safety Switch

$123.99

$

Usually ships in 2-12 days

0

10

Scag 48126

RUBBER BOOT

$8.99

$

Usually ships in 2-12 days

0

11

Scag 48717

SWITCH, NEUTRAL INTERLOCK

$10.99

$

In Stock, only 1 left!

0

12

Scag 425388

Bracket, Brake Switch

$12.99

$

Usually ships in 2-12 days

0

13

Scag 04019-03

Nut, Serrated Flange 5/16-18 (Right Front Engine Mounting, Briggs and Kohler Only)

$0.99

$

In Stock, Qty 12

0

14

Scag 04003-29

Bolt, Carriage 5/16-18 x 3/4"

$0.99

$

In Stock, Qty 8

0

15

Scag 48030-15

Wire Loom

$

$

Not available
