TLS20W-29BV - Scag Industrial Skid-Mount Truck Loader, 29hp Vanguard (SN: P4900001 - P4999999) FUEL SYSTEM AND BATTERY COMPONENTS Parts Diagram

Industrial Skid-Mount Truck Loader, 29hp Vanguard

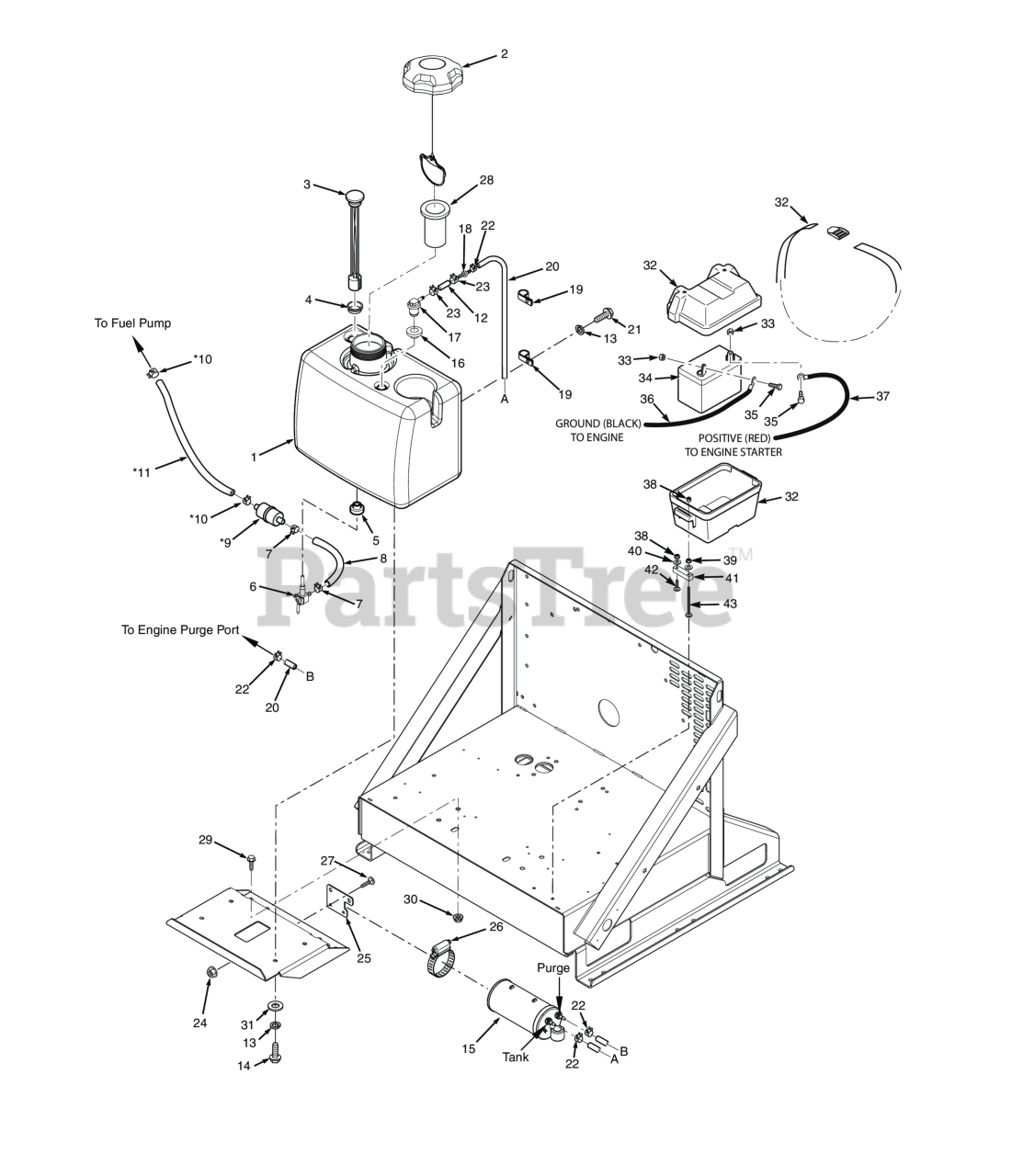

FUEL SYSTEM AND BATTERY COMPONENTS Parts Diagram

  • Title

1

Scag 462611

Fuel Tank, TL20W
(Superseded to 463029)

$483.99

$

Usually ships in 2-12 days

0

2

Scag 484286

Fuel Cap w/ Tether (E.P.A.)

$54.99

$

In Stock, only 3 left!

0

3

Scag 484259

Fuel Gauge Assembly

$79.99

$

In Stock, only 1 left!

0

4

Scag 484242

Grommet, Fuel Gauge

$15.99

$

In Stock, only 2 left!

0

5

Scag 482571

Bushing, 0.56" Dia. Viton

$12.99

$

In Stock, Qty 20+

0

6

Scag 483747

Valve, Fuel Shut Off w/Screen

$30.99

$

In Stock, only 2 left!

0

7

Scag 48059-01

Clamp, Fuel Hose 1/4" Hose I.D.

$0.99

$

In Stock, Qty 20+

0

8

Scag 483617

Fuel Hose, 1/4" I.D. Non-Perm (791DFI Fuel Return) - Order by Inch

$0.99

$

In Stock, Qty 20+

0

9

Fuel Filter (contact engine manufacturer)

$

$

Not available

10

Clamp (contact engine manufacturer)

$

$

Not available

11

Fuel Hose (contact engine manufacturer)

$

$

Not available

12

Scag 484347

Hose, 1/4" Vapor Recovery (order by inch)

$0.99

$

In Stock, Qty 20+

0

13

Scag 04030-03

Lockwasher, 5/16 (.317 x .586 x .078) Helical Spring

$0.99

$

In Stock, Qty 20+

0

14

Scag 04001-08

BOLT, SERRATED FLANGE HEX HEAD 5/16-18 X 3/4"

$0.99

$

In Stock, Qty 20+

0

15

Scag 484287

Carbon Canister - SVR-36A / SVR-48V

$96.99

$

Usually ships in 2-12 days

0

16

Scag 484285

Grommet, Viton,

$11.99

$

Usually ships in 2-12 days

0

17

Scag 484333

Remote Vent, No Valve

$14.99

$

Usually ships in 2-12 days

0

18

Scag 484343-01

Mender, 1/4 x 3/16 w/0.02 Hole

$26.99

$

In Stock, only 1 left!

0

19

Scag 48030-22

Clamp, Cable - .375 Dia.

$1.99

$

Usually ships in 2-12 days

0

20

Scag 484345

Hose, Vapor Recovery 3/16" (order by inch)

$0.99

$

In Stock, Qty 20+

0

21

Scag 04001-08

BOLT, SERRATED FLANGE HEX HEAD 5/16-18 X 3/4"

$0.99

$

In Stock, Qty 20+

0

22

Scag 48059-05

Clamp, Vapor Recovery Hose 3/16"

$4.49

$

In Stock, only 3 left!

0

23

Scag 48059-02

CLAMP, FUEL HOSE(KAWASAKI ONLY)

$0.99

$

In Stock, Qty 10

0

24

Scag 04019-03

Nut, Serrated Flange 5/16-18 (Right Front Engine Mounting, Briggs and Kohler Only)

$0.99

$

In Stock, Qty 19

0

25

Scag 426326

Bracket, Cannister Mount

$20.99

$

Usually ships in 2-12 days

0

26

Scag 48136-17

Clamp, 3-1/2" Max. Dia.

$7.49

$

Usually ships in 2-12 days

0

27

Scag 04003-04

Bolt, Carriage 5/16-18x1" (large frame units only)

$0.99

$

In Stock, Qty 12

0

28

Scag 484279-01

Tube, Fuel Tank Insert - 4"

$4.49

$

Usually ships in 2-12 days

0

29

Scag 04001-70

Bolt, Hex Head 1/2-13 x 1-1/4"

$1.49

$

In Stock, Qty 5

0

30

Scag 04019-06

Nut, Hex Serrated Flange 1/2-13

$0.99

$

In Stock, Qty 20+

0

31

Scag 04040-15

Flatwasher, 5/16-.375 x .875 x .083 (35BV & 37BV-EFI)

$0.99

$

In Stock, Qty 9

0

32

Scag 484990

Battery Box w/Strap

$54.99

$

Usually ships in 2-12 days

0

33

Scag 04020-02

Nut, 1/4 - 20 Hex

$0.99

$

In Stock, Qty 9

0

34

Battery (not available through Scag Power Equipment)

$

$

Not available

35

Scag 04001-06

BOLT, HEX HEAD, 1/4-20 X 5/8

$0.99

$

In Stock, only 3 left!

0

36

Scag 48029-11

Battery Cable, 27" Black (35BV & 37BV-EFI) - Briggs & Stratton

$14.99

$

Usually ships in 2-12 days

0

37

Scag 48029-27

Battery Cable, Red 32" w/Conduit

$27.99

$

Usually ships in 2-12 days

0

38

Scag 04021-08

HEX, NUT, ELASTIC STOP LOCK, 1/4-20

$0.99

$

In Stock, Qty 10

0

39

Scag 04019-02

NUT, 1/4-20 SERRATED FLANGE HEX HEAD

$0.99

$

In Stock, Qty 20+

0

40

Scag 04040-14

Flatwasher, 1/4" (.312 x .750 x .065")

$0.99

$

In Stock, Qty 7

0

41

Scag 485053

Spacer, Battery Bob (x6)

$5.99

$

Usually ships in 2-12 days

0

42

Scag 04003-09

Bolt, Carriage, 1/4-20 x 1-1/4"

$0.99

$

In Stock, Qty 9

0

43

Scag 04003-39

Bolt, Carriage 1/4-20 x 6"

$1.49

$

In Stock, Qty 11

0
