TLS20W-29BV - Scag Industrial Skid-Mount Truck Loader, 29hp Vanguard (SN: P4900001 - P4999999) IMPELLER ASSEMBLY Parts Diagram

Industrial Skid-Mount Truck Loader, 29hp Vanguard

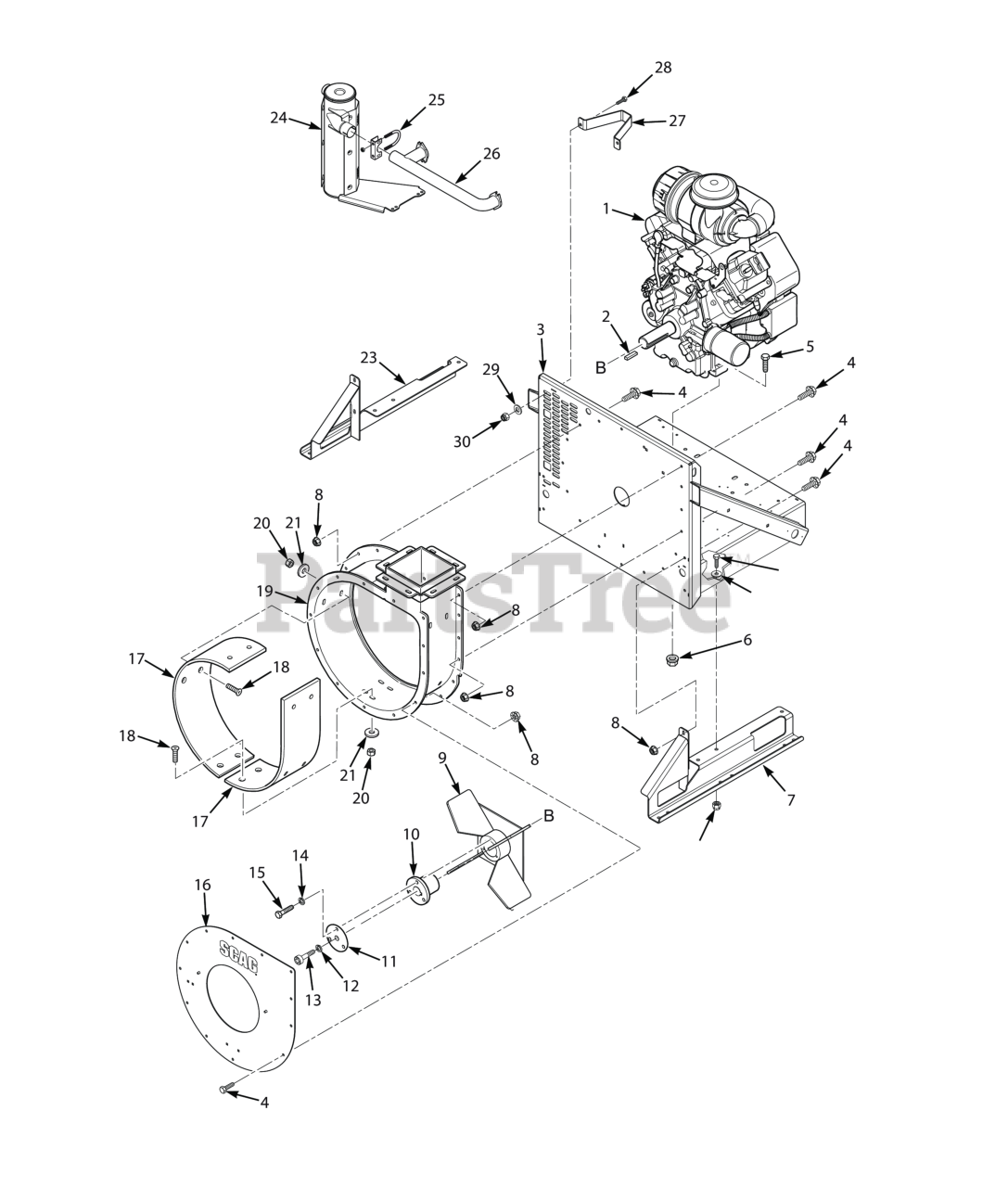

IMPELLER ASSEMBLY Parts Diagram

  • Title

1

Scag 484957

Engine, 29HP Briggs & Stratton Vanguard

Note: (not available through Scag Power Equipment)

$

$

Currently unavailable

2

Scag 04063-32

Key, 3/8 x 3/8 x 3-1/2"

$9.99

$

Usually ships in 2-12 days

0

3

Scag 462651

Frame Weldment w / Decals

$1081.99

$

Usually ships in 2-12 days

0

4

Scag 04017-26

Bolt, Hex Head Serrated Flange 3/8-16 x 3/4"

$1.49

$

Usually ships in 2-12 days

0

5

Scag 04001-12

Bolt, Hex Head 5/16-18 x 1-1/2" - Front

$0.99

$

In Stock, Qty 20+

0

5

Scag 04001-17

Bolt, Hex Head 5/16-18 x 2-1/2" (x3) (35BV & 37BV-EFI)

$0.99

$

In Stock, Qty 10

0

6

Scag 04019-03

Nut, Serrated Flange 5/16-18 (Right Front Engine Mounting, Briggs and Kohler Only)

$0.99

$

In Stock, Qty 19

0

7

Scag 452550

Mounting Bracket Weldment, RH Skid

$166.99

$

Usually ships in 2-12 days

0

8

Scag 04019-04

NUT, 3/8-16 SERRATED FLANGE HEX HEAD

$0.99

$

In Stock, Qty 20+

0

9

Scag 452455

Impeller Weldment, TL20W

$580.99

$

Usually ships in 2-12 days

0

10

Scag 484820

Hub, Tapered Locking Q2 x 1-7/16"

$205.99

$

Usually ships in 2-12 days

0

11

Scag 426138

Cover Plate, Hub Taper - TL20W

$23.99

$

Usually ships in 2-12 days

0

12

Scag 04030-07

Lockwasher, 5/8" Spring

$1.49

$

In Stock, Qty 20+

0

13

Scag 04015-22

Socket Head Cap Screw, 5/8-18 x 1-3/4"

$3.99

$

In Stock, only 3 left!

0

14

Scag 04030-04

Lockwasher, 3/8" Spring, Kawasaki FX / FS

$0.99

$

In Stock, Qty 20+

0

15

Scag 04001-21

Bolt, Hex Head 3/8-16 x 1-3/4" (Kohler EFI)

$0.99

$

In Stock, Qty 20+

0

16

Scag 463094

Cover, Housing - TLS20W w/Decal

$155.99

$

Usually ships in 2-12 days

0

17

Scag 462583

Wearliner Kit w/ Hardware

$322.99

$

Usually ships in 2-12 days

0

18

Scag 04014-07

Capscrew, 3/8-16 x 1-1/4"

$0.99

$

In Stock, Qty 9

0

19

Scag 462637

Housing Weldment w / Decals

$705.99

$

Usually ships in 2-12 days

0

20

Scag 04021-09

HEX NUT, ELASTIC STOP LOCK, 3/8-16

$0.99

$

In Stock, Qty 20+

0

21

Scag 04041-04

Flatwasher, 1/2 (.5/6 x .938 x .105)

$0.99

$

Usually ships in 2-12 days

0

22

Scag 452501

Weldment, Exhaust Deflector - 29hp Briggs & Stratton

$38.99

$

Usually ships in 2-12 days

0

23

Scag 452549

Mounting Bracket Weldment, LH Skid

$166.99

$

Usually ships in 2-12 days

0

24

Scag 485385

Muffler, 29hp Briggs & Stratton

$343.99

$

Usually ships in 2-12 days

0

25

Scag 48633

Clamp, Muffler (Clamp Only)

$6.49

$

In Stock, only 2 left!

0

26

Scag 485004

Exhaust Manifold, 29hp Briggs & Stratton

$200.99

$

Usually ships in 2-12 days

0

27

Scag 426865

Muffler Guard

$16.99

$

Usually ships in 2-12 days

0

28

Scag 04001-19

Bolt, Hex Head, 3/8-16 x 1 Gr. 5

$0.99

$

In Stock, Qty 20+

0

29

Scag 04041-07

Flatwasher, 3/8" Special (.391 x .938 x .105)

$0.99

$

In Stock, Qty 8

0

30

Scag 04021-09

HEX NUT, ELASTIC STOP LOCK, 3/8-16

$0.99

$

In Stock, Qty 20+

0
