TLS29202BVG (3800022) - Giant-Vac Trailer Mount Truck Loader Vacuum, 29hp Trailer Group Parts Diagram

Trailer Mount Truck Loader Vacuum, 29hp

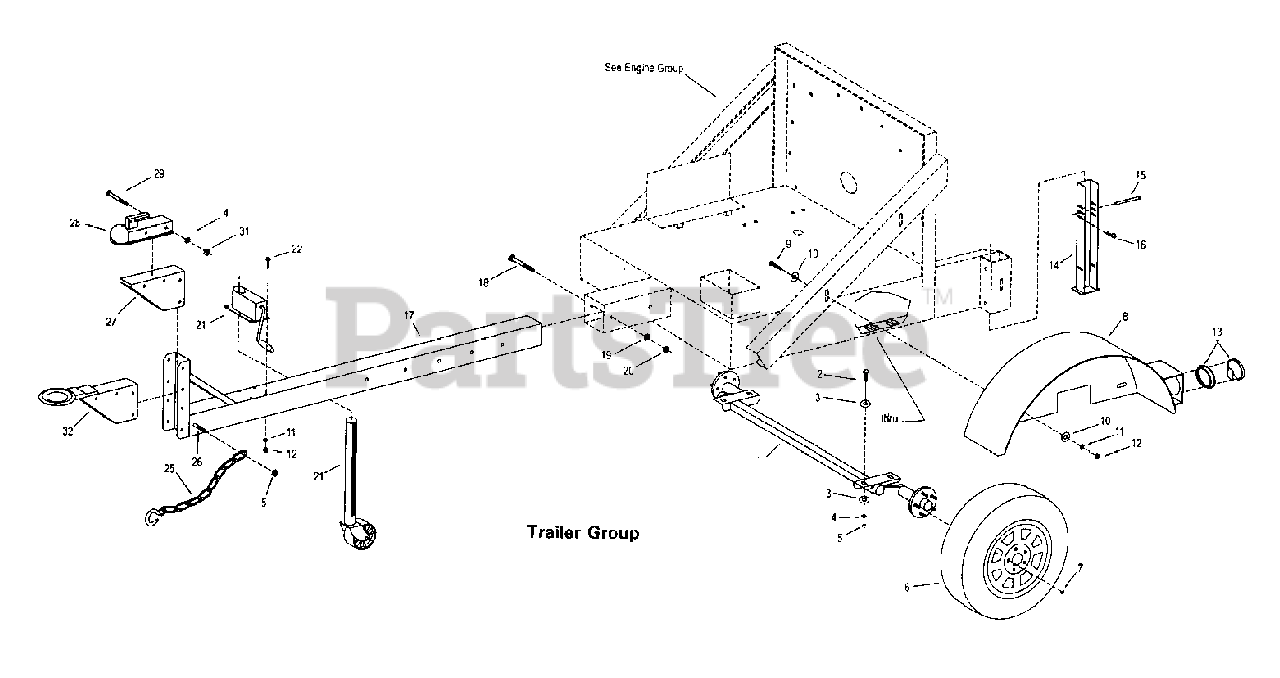

Trailer Group Parts Diagram

  • Title

1

Giant-Vac 3033296

Torflex Axle

$

$

Not available

2

3032154

1/2-13 x 1-1/4" Hex Bolt

$

$

Not available

3

3032155

1/2 Flat Washer

$

$

Not available

4

Giant-Vac 3031078

1/2 Lock Washer

$

$

Currently unavailable

5

Giant-Vac 3032156

1/2-13 Hex End Lock Nut
(Superseded to 703567)

$4.49

$

In Stock, only 2 left!

0

6

Giant-Vac 3033051

F78 x 15 Tire and Wheel Assembly

$

$

Currently unavailable

7

Giant-Vac 3031152

1/2-20 Lug Nut

$

$

Currently unavailable

8

Giant-Vac 3033303

Fender - Left Side

$

$

Not available

8

Giant-Vac 3033302

Fender - right Side (Not Shown)

$

$

Currently unavailable

9

Giant-Vac 3031033

3/8-16 x 1" Hex Bolt
(Superseded to 703407)

$11.99

$

In Stock, Qty 5

0

10

Giant-Vac 3031034

3/8 Flat Washer
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

11

Giant-Vac 3031008

3/8 Split Lock Washer
(Superseded to 703454)

$3.49

$

In Stock, Qty 11

0

12

Giant-Vac 3031009

3/8-16 Hex Nut
(Superseded to 7091302SM)

$4.49

$

In Stock, Qty 9

0

13

Giant-Vac 3031639

Tail Lamp (w/Rubber Mounting Ring)

$

$

Currently unavailable

--

Giant-Vac 3031640

Tail Lamp Wiring Harness (Not Shown)

$

$

Currently unavailable

--

Giant-Vac 3031644

Wiring Harness Bold Clip - Large (Not Shown)

$

$

Not available

--

Giant-Vac 3031823

Wiring Harness Bold Clip - Small (Not Shown)

$

$

Not available

--

Giant-Vac 3032090

#10 x 1/2" Self-Tapping Screw (Fastens Grounds) (Not Shown)

$

$

Currently unavailable

14

Giant-Vac 3040126

Support Leg

$

$

Currently unavailable

15

Giant-Vac 3031125

3/8 x 4" Clevis Pin

$

$

Not available

16

Giant-Vac 3031126

Bridge Pin

$

$

Not available

17

3038044

Draw Bar - Swing Jack Style

$

$

Not available

18

3031017

5/8 x 4-1/2" Hex Bolt

$

$

Not available

19

Giant-Vac 3031326

5/8 Split Lock Washer

$

$

Not available

20

3031199

5/8 Lock Nut

$

$

Not available

21

Giant-Vac 3033176

Jack, Trailer Support Swing Away Style

$

$

Currently unavailable

22

Giant-Vac 3031495

3/8-16 x 5" Hex Bolt

$

$

Currently unavailable

25

Giant-Vac 3031641

Chain, Safety w/1 S-Hook

$

$

Currently unavailable

26

Giant-Vac 7091822

HHCS, 1/2-13 x 5 YZ
(Superseded to 703886)

$6.49

$

In Stock, Qty 12

0

27

Giant-Vac 3038014

Ball Hitch Mount, Black

$

$

Currently unavailable

28

Giant-Vac 3038011

Ball Hitch

$

$

Not available

29

Giant-Vac 3031467

1/2-13 x 3-1/2" Hex Bolt

$

$

Currently unavailable

31

Giant-Vac 3031406

1/2 Lock Nut
(Superseded to 7091325YP)

$4.99

$

In Stock, Qty 13

0

32

Giant-Vac 3038012

Pintle Ring (Optional)

$

$

Not available

36

3031671

Chain, Nozzle Retainer 1/2 x 12"

$

$

Not available
