TM 5 (25A-110-100) - Cub Cadet Walk-Behind Trimmer Spindle Plate Assembly Parts Diagram

Walk-Behind Trimmer

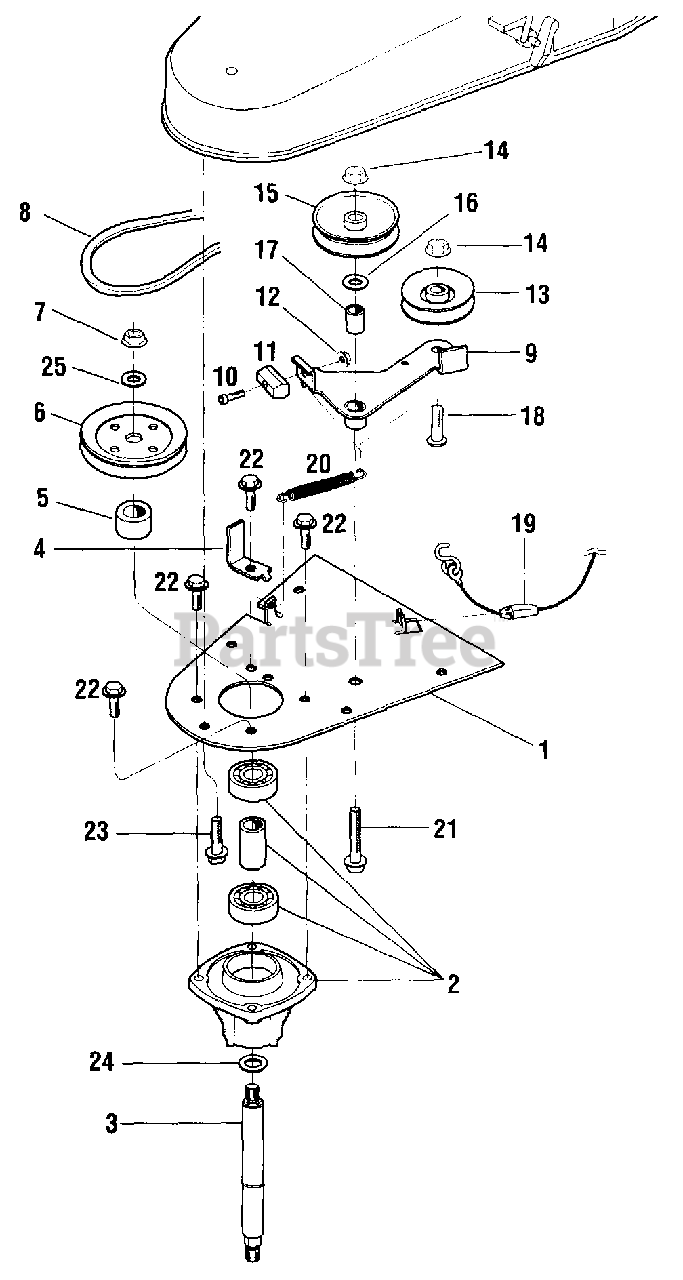

Spindle Plate Assembly Parts Diagram

  • Title

1

Cub Cadet 1910850001

Spindle Mounting Plate

$

$

Not available

2

Cub Cadet 1910839

Spindle Assembly
(Superseded to 1769048099)

$175.99

$

In Stock, Qty 9

0

3

Cub Cadet 1915477

Spindle Shaft Assembly

Note: (Incl. Ref. 25)

$

$

Not available

4

Cub Cadet 1910860001

Belt Guide

$

$

Not available

5

Cub Cadet 1910856

Spindle Spacer

$

$

Not available

6

Cub Cadet 1910842

Spindle Pulley

$

$

Currently unavailable

7

Cub Cadet 1904308

Hex Flange Nut, 1/2-13
(Superseded to 712-3022)

$3.99

$

In Stock, Qty 20+

0

8

Cub Cadet 1910851

V-Belt, L453

$

$

Not available

9

Cub Cadet 1904479

Idler Arm/Brake Shoe Assembly

$

$

Not available

10

Cub Cadet 1910859

Socket Hd Capscrew, 10-24 x 3/4

$

$

Not available

11

Cub Cadet 1910847

Brake Shoe

$

$

Not available

12

Cub Cadet 1983039

Hex Lock Nut, 10-24

$

$

Not available

13

Cub Cadet 1727978

V-Groove Idler Pulley

$

$

Not available

14

Cub Cadet 1186393

Hex Flange Nut, 3/8-16

$2.99

$

In Stock, only 1 left!

0

15

Cub Cadet 1910855

Flat Idler Pulley

$

$

Not available

16

Cub Cadet 1915261

Washer, .88 x .382 x .275
(Superseded to 936-0344)

$4.49

$

In Stock, Qty 20+

0

17

Cub Cadet 1910854

Idler Arm Spacer

$

$

Not available

18

Cub Cadet 1910857

Button Hd Screw, 3/8-16 x 1-1/2

$

$

Currently unavailable

19

Cub Cadet 1910852

Control Cable
(Superseded to 1910852P)

Note: (also Ref. 13, Pg. 4)

$69.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 1910849

Idler Tension Spring

$

$

Not available

21

Cub Cadet 1910858

Hex Flange Screw, 3/8 x 16 x 2-1/4

$

$

Not available

22

Cub Cadet 1909304

Hex Flange Screw, 5/16-18 x 3/4
(Superseded to 710-1260A)

$3.49

$

In Stock, Qty 20+

0

23

Cub Cadet 90063

Hex Flange Screw, 5/16-18 x 1
(Superseded to 710-0602)

$4.49

$

In Stock, Qty 20+

0

24

Cub Cadet 9953

Hardened Shim, 3/4 ID x 1.022 OD x .060 thick
(Superseded to GW-9953)

$5.99

$

In Stock, only 2 left!

0

25

Cub Cadet 9928

Belleville Washer
(Superseded to GW-9928)

$11.99

$

Usually ships in 3-6 days

0
