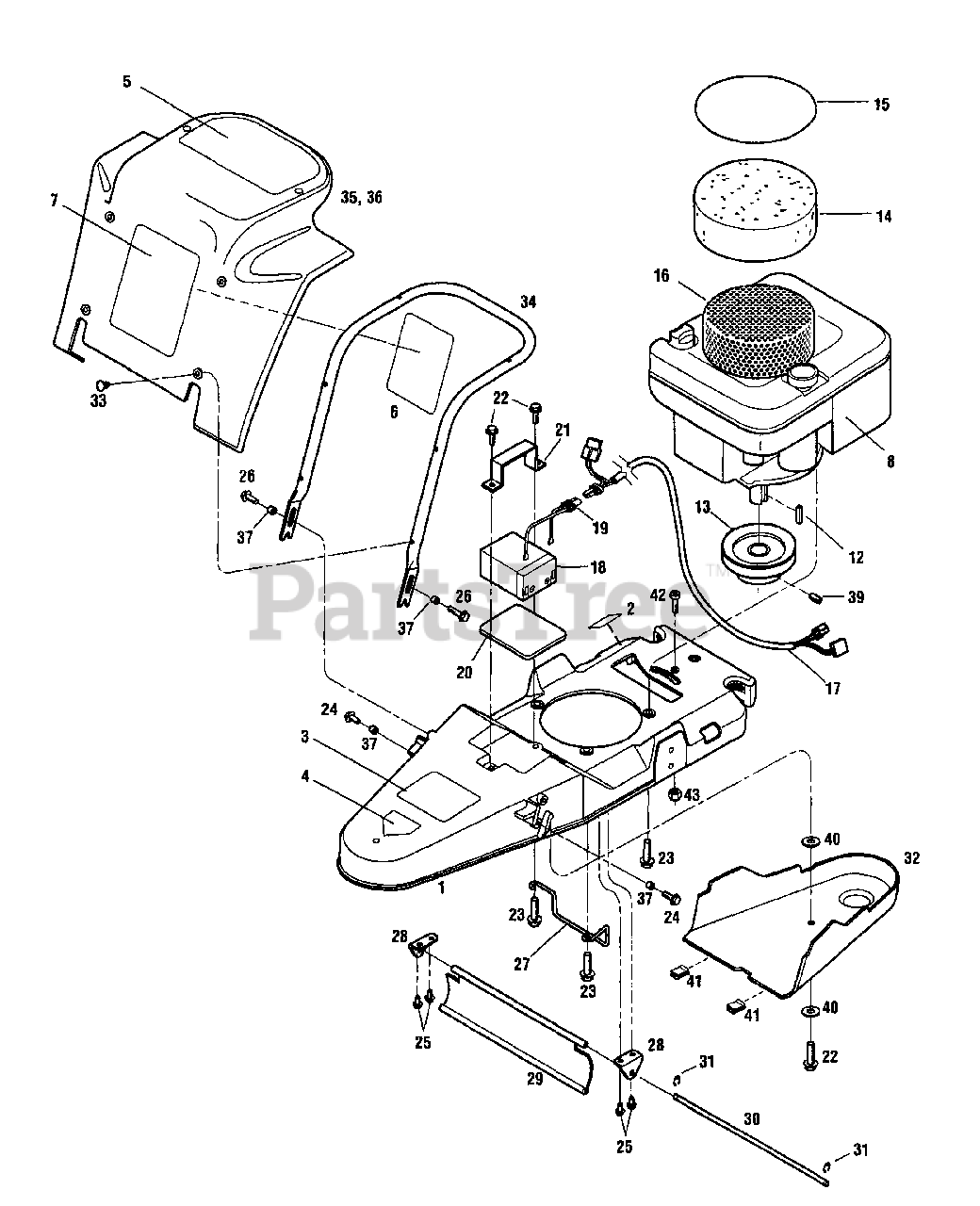

TM 5E (25AE110-100) - Cub Cadet Walk-Behind Trimmer Deck, Covers And Guards, Battery Parts Diagram

Walk-Behind Trimmer

Deck, Covers And Guards, Battery Parts Diagram

  • Title

1

Cub Cadet 1915721

Deck with decals

$

$

Not available

2

Cub Cadet 1904511

Decal-Hot Surface

$

$

Not available

3

Cub Cadet 1904403

Decal-Warning/Thrown Objects

$

$

Not available

4

Cub Cadet 1739687

Decal-Danger Feet/Hands

$6.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 1904404

Decal-Engine Cover

$

$

Not available

6

Cub Cadet 1904405

Decal-Parallel Trim Control

$

$

Not available

7

Cub Cadet 1916664

Decal-Logo, 5HP.

Note: See Model TM5E

$

$

Not available

Cub Cadet 1916742

Decal-Logo, 4HP.

Note: See Model TM4

$

$

Not available

8

Engine-Quantum, 4HP.

Note: See Model TM4. Order parts from your local Briggs and Stratton engine dealer. Refer to engine for model/type number.

$

$

Not available

Engine-Quantum, 5HP.

Note: See Model TM5E

$

$

Not available

12

Cub Cadet 9301

Key, 3/16" x 1" Sq
(Superseded to GW-9301099)

$3.49

$

In Stock, Qty 16

0

13

Cub Cadet 1915240

Pulley, 4" OD

$

$

Not available

14

Cub Cadet 1915276

Engine Debris Guard/Foam
(Superseded to BS-693514)

$72.99

$

Usually ships in 2-12 days

0

15

Cub Cadet 1915304

O-Ring/Engine Debris Guard

$

$

Not available

16

Cub Cadet 1916571

Engine Debris Guard

$

$

Not available

17

Cub Cadet 1910835

Wire Harness.

Note: See Model TM5E

$

$

Not available

18

Cub Cadet 1909647

Battery.

Note: See Model TM5E

$152.99

$

Usually ships in 3-6 days

0

19

Cub Cadet 1909697

Battery Connector.

Note: See Model TM5E

$21.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 1915268

Battery Pad.

Note: See Model TM5E

$

$

Not available

21

Cub Cadet 1915204001

Battery Bracket.

Note: See Model TM5E

$

$

Not available

22

Cub Cadet 90063

Hex Hd. Flange Screw, 5/16-18 x 1
(Superseded to 710-0602)

$4.49

$

In Stock, Qty 20+

0

23

Cub Cadet 1768194

Hex Hd. Flange Screw, 3/8-16 x 1-1/2
(Superseded to 710-1007)

$5.99

$

In Stock, Qty 5

0

24

Cub Cadet 1754128

Hex Hd. Flange Screw, 1/4-20 x 3/4

$3.49

$

In Stock, only 2 left!

0

25

Cub Cadet 1909301

Hex Hd. Flange Screw, 1/4-20 x 5/8

$

$

Not available

26

Cub Cadet 1763187

Hex Hd. Flange Screw, 1/4-20 x 1

$

$

Not available

27

Cub Cadet 1910865

Belt Guide

$

$

Not available

28

Cub Cadet 1915219001

Flap Bracket

$

$

Not available

29

Cub Cadet 1915211

Deflector Shield

$

$

Not available

30

Cub Cadet 1915212

Deflector Shield Rod

$

$

Not available

31

Cub Cadet 1185304

E-Ring, 5/16"

$

$

Not available

32

Cub Cadet 1915205

Belt Cover

$

$

Not available

33

Cub Cadet 1915290

Push-In Fastener

$

$

Not available

34

Cub Cadet 1915238001

Engine Cover Support

$

$

Currently unavailable

35

Cub Cadet 1916744

Engine Cover w/decals.

Note: See Model TM4

$

$

Not available

36

Cub Cadet 1916667

Engine Cover w/decals.

Note: See Model TM5E

$

$

Not available

37

Cub Cadet 1915320

Spacer

$

$

Not available

39

Cub Cadet 9677

Set Screw
(Superseded to GW-9677)

$3.49

$

In Stock, only 2 left!

0

40

Cub Cadet 94018

Washer
(Superseded to GW-94018)

$

$

Not available

41

Cub Cadet 9218

Clip
(Superseded to GW-9218)

$

$

Not available

42

Cub Cadet 9719

Socket Hd. Capscrew, 1/4-20 x 1
(Superseded to GW-9719)

$4.99

$

Usually ships in 3-6 days

0

43

Cub Cadet 1185814

Toplock Nut, 1/4-20
(Superseded to 712-0324)

$3.49

$

In Stock, Qty 20+

0
