TM 5E (25AE110-100) - Cub Cadet Walk-Behind Trimmer Engine Assembly (Model TM5E) Parts Diagram

Walk-Behind Trimmer

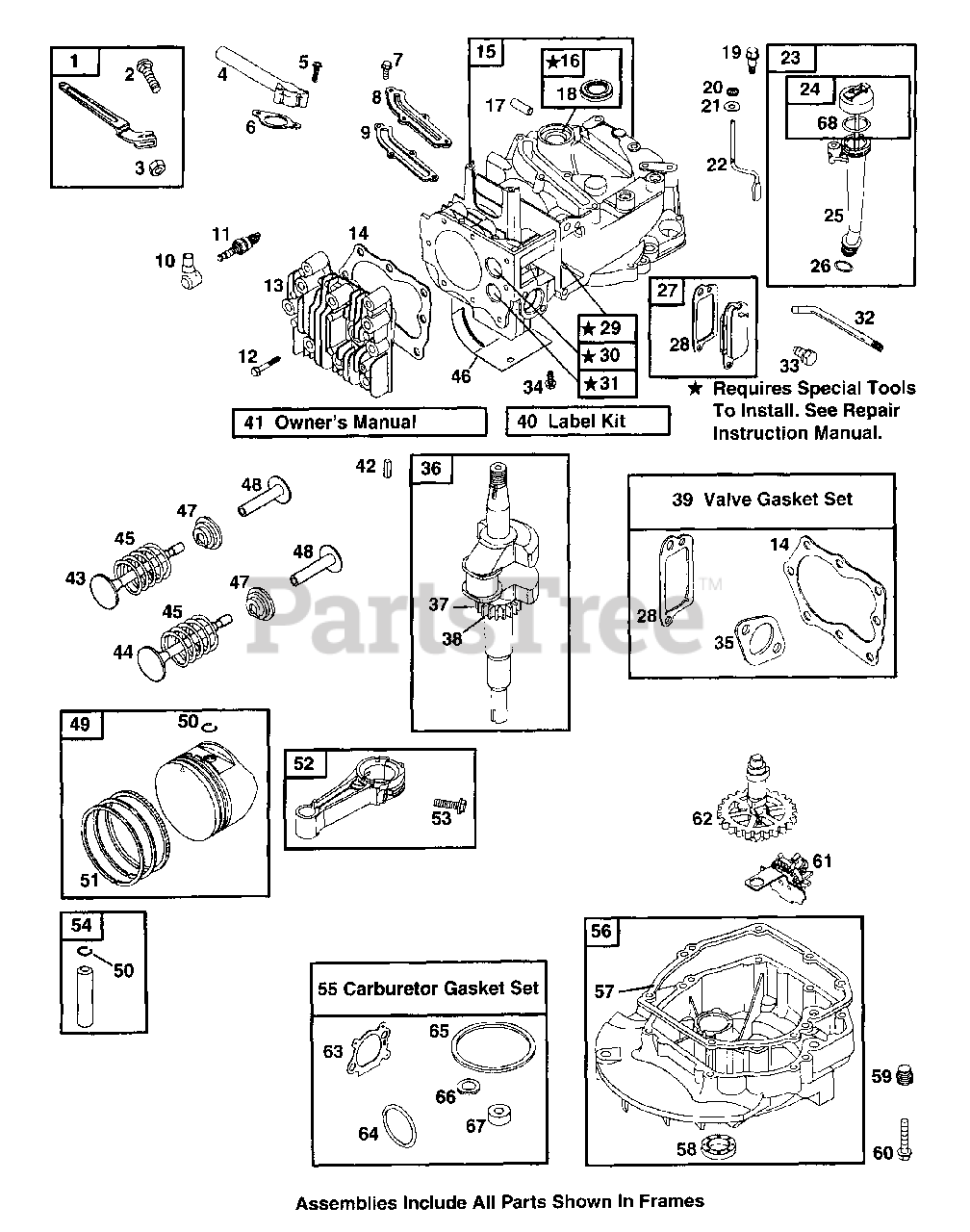

Engine Assembly (Model TM5E) Parts Diagram

  • Title

1

Cub Cadet BS-690783

Governor Control Lever

$15.99

$

Usually ships in 2-12 days

0

2

Cub Cadet BS-92613

Bolt

$

$

Not available

3

Cub Cadet BS-231082

Nut

$

$

Not available

4

Cub Cadet BS-497465

Intake Manifold
(Superseded to BS-794305)

$

$

Not available

5

Cub Cadet BS-691650

Screw

$2.99

$

In Stock, only 2 left!

0

6

Cub Cadet BS-272199

Intake Gasket
(Superseded to BS-272199S)

$4.99

$

In Stock, Qty 11

0

7

Cub Cadet BS-690345

Screw

$4.99

$

Usually ships in 2-12 days

0

8

Cub Cadet BS-692342

Breather Passage Cover

$

$

Not available

9

Cub Cadet BS-691879

Breather Passage Gasket

$6.99

$

In Stock, only 1 left!

0

10

Cub Cadet BS-66538

Sparkplug Boot
(Superseded to BS-66538S)

$3.99

$

In Stock, Qty 16

0

11

Cub Cadet BS-802592

Sparkplug

$

$

Currently unavailable

12

Cub Cadet BS-690912

Screw (Cylinder Head)

$3.99

$

In Stock, Qty 15

0

13

Cub Cadet BS-691160

Cylinder Head
(Superseded to BS-594989)

$55.99

$

Usually ships in 2-12 days

0

14

Cub Cadet BS-692249

Cylinder Head Gasket

$8.49

$

In Stock, Qty 5

0

15

Cub Cadet BS-493260

Cylinder Assembly

$

$

Not available

16

Cub Cadet BS-399269

Bushing/Seal Kit

$21.99

$

In Stock, Qty 6

0

17

Cub Cadet BS-690959

Locating Pin

$6.99

$

Usually ships in 2-12 days

0

18

Cub Cadet BS-299819

Oil Seal (Magneto Side)
(Superseded to BS-299819S)

$5.49

$

In Stock, Qty 20+

0

19

Cub Cadet BS-690940

Screw

$3.99

$

In Stock, only 4 left!

0

20

Cub Cadet BS-690340

Governor Shaft Retainer

$4.49

$

In Stock, only 1 left!

0

21

Cub Cadet BS-690272

Washer

$3.99

$

Usually ships in 2-12 days

0

22

Cub Cadet BS-691306

Governor Crank

$

$

Not available

23

Cub Cadet BS-692017

Dipstick/Tube Assembly
(Superseded to BS-692047)

$

$

Not available

24

Cub Cadet BS-495264

Dipstick
(Superseded to BS-499621)

$17.99

$

In Stock, Qty 6

0

25

Cub Cadet BS-495265

Dipstick Tube

$

$

Not available

26

Cub Cadet BS-692296

Dipstick Tube Seal

$4.99

$

In Stock, Qty 9

0

27

Cub Cadet BS-495786

Oil Seal
(Superseded to BS-590395)

$14.99

$

In Stock, Qty 11

0

28

Cub Cadet BS-272481

Breather Gasket
(Superseded to BS-699833)

$5.49

$

In Stock, Qty 11

0

29

Cub Cadet BS-262001

Guide Bushing (Exhaust Valve)

$13.99

$

Usually ships in 2-12 days

0

Cub Cadet BS-63709

Guide Bushing (Intake Valve)

$14.99

$

In Stock, only 3 left!

0

30

Cub Cadet BS-691155

Valve Seat (Intake)

$8.99

$

Usually ships in 2-12 days

0

31

Cub Cadet BS-690380

Valve Seat (Exhaust)

$

$

Not available

32

Cub Cadet BS-691781

Breather Tube

$10.99

$

Usually ships in 2-12 days

0

33

Cub Cadet BS-94650

Screw

$3.99

$

Usually ships in 2-12 days

0

34

Cub Cadet BS-690345

Screw

$4.99

$

Usually ships in 2-12 days

0

35

Cub Cadet BS-691881

Exhaust Gasket

$8.99

$

In Stock, Qty 7

0

36

Cub Cadet BS-691452

Crankshaft Assembly

$

$

Currently unavailable

37

Cub Cadet BS-690979

Timing Key

$3.49

$

In Stock, only 3 left!

0

38

Cub Cadet BS-691830

Timing Gear

$17.99

$

Usually ships in 2-12 days

0

39

Cub Cadet BS-498528

Valve Gasket Set

$26.99

$

Usually ships in 2-12 days

0

40

Cub Cadet BS-494256

Label Kit

$26.99

$

Usually ships in 2-12 days

0

41

Cub Cadet BS-274265

Owner's Manual

$

$

Currently unavailable

42

Cub Cadet BS-222698

Flywheel Key
(Superseded to BS-222698S)

$2.99

$

In Stock, Qty 20+

0

43

Cub Cadet BS-262652

Intake Valve

$

$

Not available

44

Cub Cadet BS-262651

Exhaust Valve

$

$

Not available

45

Cub Cadet BS-691270

Valve Spring

$5.49

$

In Stock, Qty 11

0

46

Cub Cadet BS-690450

Cylinder Shield

$10.99

$

Usually ships in 2-12 days

0

47

Cub Cadet BS-692194

Valve Retainer

$5.99

$

In Stock, Qty 18

0

48

Cub Cadet BS-690548

Valve Tappet

$9.99

$

Usually ships in 2-12 days

0

49

Cub Cadet BS-499429

Piston Assembly (Standard)

$

$

Not available

Cub Cadet BS-499430

Piston Assembly (.010 O.S.)

$39.99

$

Usually ships in 2-12 days

0

Cub Cadet BS-499431

Piston Assembly (.020 O.S.)

$

$

Not available

Cub Cadet BS-499432

Piston Assembly (.030 O.S.)

$46.99

$

Usually ships in 2-12 days

0

50

Cub Cadet BS-691866

Piston Pin Lock

$4.49

$

In Stock, Qty 8

0

51

Cub Cadet BS-499425

Ring Set (Standard)

$

$

Not available

Cub Cadet BS-499426

Ring Set (.010 O.S.)

$20.99

$

Usually ships in 2-12 days

0

Cub Cadet BS-499427

Ring Set (.020 O.S.)

$52.99

$

Usually ships in 2-12 days

0

Cub Cadet BS-499428

Ring Set (.030 O.S.)

$29.99

$

Usually ships in 2-12 days

0

52

Cub Cadet BS-499424

Connecting Rod (Standard)
(Superseded to BS-590406)

$87.99

$

In Stock, only 1 left!

0

Cub Cadet BS-490743

Connecting Rod (.020 Undersize)

$

$

Currently unavailable

53

Cub Cadet BS-691664

Screw

$4.49

$

In Stock, only 2 left!

0

54

Cub Cadet BS-499423

Piston Pin

$9.49

$

In Stock, only 1 left!

0

55

Cub Cadet BS-498261

Carburetor Gasket Set
(Superseded to BS-498260)

$16.99

$

In Stock, Qty 20+

0

56

Cub Cadet BS-493279

Engine Sump

$120.99

$

In Stock, Qty 5

0

57

Cub Cadet BS-692232

Crankcase Gasket

$5.99

$

In Stock, Qty 20+

0

58

Cub Cadet BS-399781

Oil Seal (PTO Side)
(Superseded to BS-399781S)

$7.99

$

In Stock, Qty 18

0

59

Cub Cadet BS-691680

Oil Drain Plug

$5.99

$

In Stock, only 4 left!

0

60

Cub Cadet BS-691092

Screw

$3.99

$

In Stock, Qty 5

0

61

Cub Cadet BS-691997

Governor/Oil Slinger

$25.99

$

In Stock, only 1 left!

0

62

Cub Cadet BS-691449

Camshaft

$73.99

$

In Stock, only 1 left!

0

63

Cub Cadet BS-272653

Air Cleaner Gasket
(Superseded to BS-795629)

$3.49

$

In Stock, Qty 20+

0

64

Cub Cadet BS-270344

O-Ring Seal (Intake Manifold)
(Superseded to BS-270344S)

$3.49

$

In Stock, Qty 20+

0

65

Cub Cadet BS-693981

Float Bowl Gasket

$3.99

$

In Stock, Qty 20+

0

66

Cub Cadet BS-271716

Sealing Washer

$6.49

$

In Stock, Qty 20+

0

67

Cub Cadet BS-691321

Choke/Throttle Dust Seal

$4.99

$

In Stock, only 2 left!

0

68

Cub Cadet BS-691031

Dipstick/Tube Seal

$5.49

$

In Stock, Qty 12

0

Cub Cadet BS-498827

Short Block

$

$

Not available
