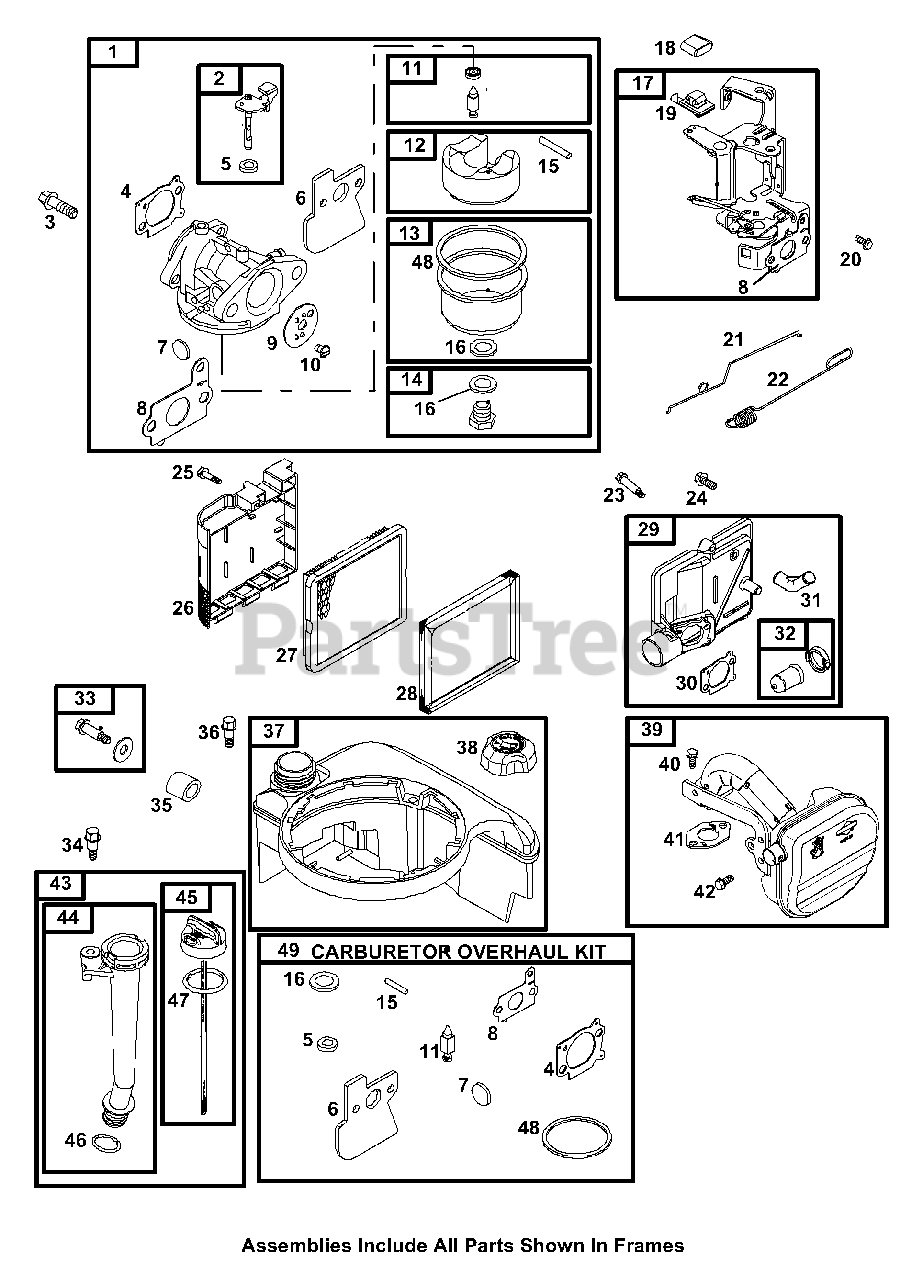

TM 622 (25A-258H100) - Cub Cadet Walk-Behind Trimmer Engine (2001) Carburetor & General Parts Diagram

Walk-Behind Trimmer Engine

Carburetor & General Parts Diagram

  • Title

1

Cub Cadet BS-694202

Carburetor
(Superseded to BS-790120)

$59.99

$

In Stock, Qty 6

0

2

Cub Cadet BS-499682

Shaft-Throttle

$16.99

$

In Stock, only 1 left!

0

3

Cub Cadet BS-691136

Screw (Carburetor)
(Superseded to BS-691148)

$3.99

$

In Stock, only 2 left!

0

4

Cub Cadet BS-692667

Gasket-Air Cleaner

$4.49

$

In Stock, Qty 16

0

5

Cub Cadet BS-691321

Seal-Choke/Throttle Shaft

$4.99

$

In Stock, only 2 left!

0

6

Cub Cadet BS-692799

Spacer-Carburetor

$14.99

$

In Stock, only 2 left!

0

7

Cub Cadet BS-694468

Plug-Welch

$4.49

$

In Stock, Qty 7

0

8

Cub Cadet BS-692668

Gasket-Intake

$4.49

$

In Stock, only 3 left!

0

9

Cub Cadet BS-691203

Valve-Throttle

$9.49

$

In Stock, only 1 left!

0

10

Cub Cadet BS-691636

Screw (Throttle Valve)

$3.99

$

In Stock, only 2 left!

0

11

Cub Cadet BS-398188

Kit-Needle/Seat

$6.49

$

In Stock, Qty 20+

0

12

Cub Cadet BS-398187

Float-Carburetor

$9.99

$

In Stock, Qty 8

0

13

Cub Cadet BS-493640

Bowl-Float
(Superseded to BS-796611)

$6.49

$

In Stock, Qty 18

0

14

Cub Cadet BS-498978

Jet-Main

$16.99

$

Usually ships in 2-12 days

0

15

Cub Cadet BS-691242

Pin-Float Hinge
(Superseded to BS-797622)

$3.99

$

In Stock, only 1 left!

0

16

Cub Cadet BS-271716

Washer-Sealing

$6.49

$

In Stock, Qty 20+

0

17

Cub Cadet BS-693378

Bracket-Control

$26.99

$

Usually ships in 2-12 days

0

18

Cub Cadet BS-691884

Sleeve-Lever

$4.99

$

Usually ships in 2-12 days

0

19

Cub Cadet BS-692310

Switch-Stop

$5.99

$

In Stock, Qty 20+

0

20

Cub Cadet BS-691147

Screw

$3.99

$

Usually ships in 2-12 days

0

21

Cub Cadet BS-691303

Link-Mechanical Governor

$8.49

$

Usually ships in 2-12 days

0

22

Cub Cadet BS-691291

Spring - Governor

$7.49

$

In Stock, Qty 9

0

23

Cub Cadet BS-692523

Screw (Air Cleaner Base to Carb.)

$7.49

$

In Stock, Qty 10

0

24

Cub Cadet BS-691637

Screw (Air Cleaner Primer Base)

$3.99

$

Usually ships in 2-12 days

0

25

Cub Cadet BS-690670

Screw (Air Cleaner Cover)

$5.99

$

In Stock, only 3 left!

0

26

Cub Cadet BS-692298

Cover-Air Cleaner

$27.99

$

In Stock, only 1 left!

0

27

Cub Cadet BS-491588

Filter-A/C Cartridge
(Superseded to BS-491588S)

$6.49

$

In Stock, Qty 20+

0

28

Cub Cadet BS-493537

Filter-Pre Cleaner
(Superseded to BS-493537S)

$6.49

$

In Stock, Qty 20+

0

29

Cub Cadet BS-692673

Base-Air Cleaner Primer

$33.99

$

Usually ships in 2-12 days

0

30

Cub Cadet BS-692667

Gasket-Air Cleaner

$4.49

$

In Stock, Qty 16

0

31

Cub Cadet BS-691923

Grommet

$9.49

$

In Stock, only 4 left!

0

32

Cub Cadet BS-694395

Primer-Carburetor

$4.49

$

In Stock, Qty 20+

0

33

Cub Cadet BS-692311

Kit-Screw/Washer

$7.49

$

In Stock, Qty 10

0

34

Cub Cadet BS-690940

Screw (Dipstick Tube)

$3.99

$

In Stock, only 4 left!

0

35

Cub Cadet BS-692294

Spacer-Fuel Tank

$4.99

$

In Stock, Qty 12

0

36

Cub Cadet BS-690940

Screw (Fuel Tank)

$3.99

$

In Stock, only 4 left!

0

37

Cub Cadet BS-495224

Tank-Fuel
(Superseded to BS-699374)

$64.99

$

In Stock, Qty 9

0

38

Cub Cadet BS-397974

Cap-Fuel Tank
(Superseded to BS-796577)

$16.99

$

In Stock, Qty 12

0

39

Cub Cadet BS-693982

Muffler

$

$

Not available

40

Cub Cadet BS-691140

Screw (Muffler)

$3.99

$

Usually ships in 2-12 days

0

41

Cub Cadet BS-691893

Gasket-Exhaust

$4.49

$

In Stock, Qty 10

0

42

Cub Cadet BS-691108

Screw (Muffler)

$3.49

$

In Stock, Qty 20+

0

43

Order Component Part

$

$

Not available

44

Cub Cadet BS-495265

Dipstick Tube

$

$

Not available

45

Cub Cadet BS-495264

Dipstick
(Superseded to BS-499621)

$17.99

$

In Stock, Qty 6

0

46

Cub Cadet BS-692296

O-Ring Seal (Dipstick Tube)

$4.99

$

In Stock, Qty 9

0

47

Cub Cadet BS-691031

O-Ring Seal (Dipstick)

$5.49

$

In Stock, Qty 12

0

48

Cub Cadet BS-693981

Gasket-Float Bowl

$3.99

$

In Stock, Qty 20+

0

49

Cub Cadet BS-692703

Kit-Carburetor Overhaul
(Superseded to BS-792383)

$28.99

$

In Stock, Qty 10

0
