TM 622 (25A-258H100) - Cub Cadet Walk-Behind Trimmer Engine (2001) Starter & Gasket Parts Diagram

Walk-Behind Trimmer Engine

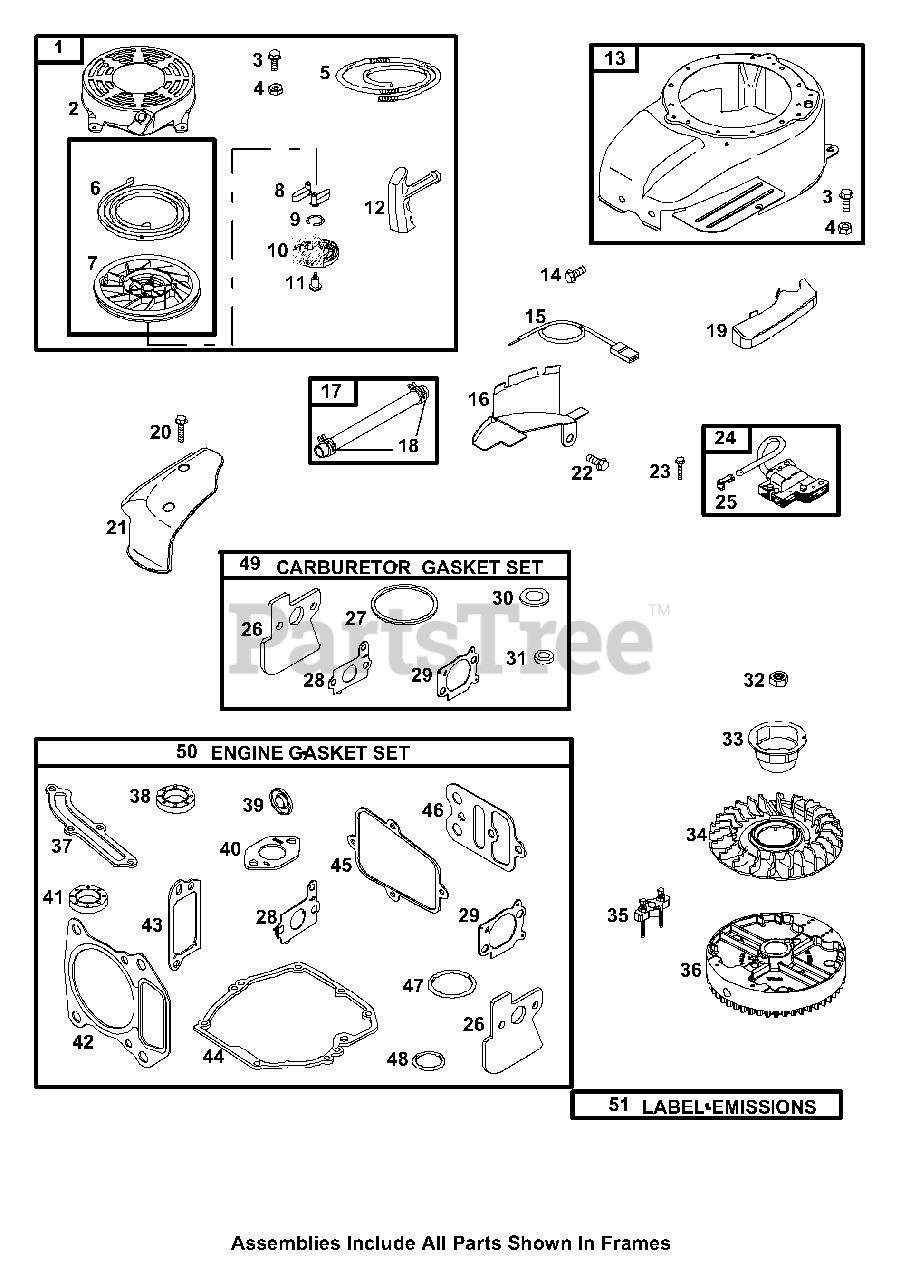

Starter & Gasket Parts Diagram

  • Title

1

Cub Cadet BS-497680

Starter-Rewind

$49.99

$

In Stock, only 3 left!

0

2

Cub Cadet BS-691421

Housing-Rewind Starter

$64.99

$

In Stock, only 1 left!

0

3

Cub Cadet BS-690837

Screw (Rewind Starter)

$3.49

$

In Stock, Qty 18

0

4

Cub Cadet BS-690800

Nut (Rewind Starter)
(Superseded to 712-0349)

$4.99

$

In Stock, Qty 5

0

5

Cub Cadet BS-280399

Rope-Starter
(Superseded to BS-280399S)

Note: (Cut to Reqd. Length)

$5.99

$

In Stock, Qty 18

0

6

Cub Cadet BS-498144

Pulley/Spring Assembly (Spring)

$19.99

$

In Stock, only 2 left!

0

7

Cub Cadet BS-498144

Pulley/Spring Assembly (Pulley)

$19.99

$

In Stock, only 2 left!

0

8

Cub Cadet BS-281505

Plate-Pawl Friction
(Superseded to BS-281505S)

$3.49

$

In Stock, Qty 20+

0

9

Cub Cadet BS-691855

Spring-Friction

$4.49

$

In Stock, Qty 7

0

10

Cub Cadet BS-692299

Retainer-Spring

$4.99

$

In Stock, Qty 20+

0

11

Cub Cadet BS-691696

Screw (Pawl Friction Plate)

$11.99

$

In Stock, only 4 left!

0

12

Cub Cadet BS-281434

Grip-Starter Rope
(Superseded to BS-281434S)

$3.99

$

In Stock, Qty 10

0

13

Cub Cadet BS-499676

Housing-Blower

$

$

Not available

14

Cub Cadet BS-690960

Screw (Blowing Housing)
(Superseded to BS-691108)

$3.49

$

In Stock, Qty 20+

0

15

Cub Cadet BS-692390

Wire-Stop

$10.99

$

Usually ships in 2-12 days

0

16

Cub Cadet BS-694086

Guard-Flywheel
(Superseded to BS-793756)

$10.99

$

In Stock, only 4 left!

0

17

Cub Cadet BS-691050

Line-Fuel
(Superseded to 751-10349-16)

$19.99

$

In Stock, Qty 13

0

18

Cub Cadet BS-95162

Clamp-Hose
(Superseded to BS-791850)

$3.49

$

In Stock, Qty 20+

0

19

Cub Cadet BS-690595

Cover-Linkage

$10.99

$

Usually ships in 2-12 days

0

20

Cub Cadet BS-693808

Screw (Control Cover)

$3.99

$

Usually ships in 2-12 days

0

21

Cub Cadet BS-692669

Cover-Control

$22.99

$

Usually ships in 2-12 days

0

22

Cub Cadet BS-691108

Screw (Flywheel Guard)

$3.49

$

In Stock, Qty 20+

0

23

Cub Cadet BS-691061

Screw (Magneto Armature)

$3.49

$

In Stock, Qty 17

0

24

Cub Cadet BS-802574

Armature-Magneto
(Superseded to BS-796964)

$55.99

$

Usually ships in 2-12 days

0

25

Cub Cadet BS-493880

Terminal-Sparkplug
(Superseded to BS-493880S)

$3.49

$

In Stock, Qty 20+

0

26

Cub Cadet BS-692799

Spacer-Carburetor

$14.99

$

In Stock, only 2 left!

0

27

Cub Cadet BS-693981

Gasket-Float Bowl

$3.99

$

In Stock, Qty 20+

0

28

Cub Cadet BS-692668

Gasket-Intake

$4.49

$

In Stock, only 2 left!

0

29

Cub Cadet BS-692667

Gasket-Air Cleaner

$4.49

$

In Stock, Qty 16

0

30

Cub Cadet BS-271716

Washer-Sealing

$6.49

$

In Stock, Qty 20+

0

31

Cub Cadet BS-691321

Seal-Choke/Throttle Shaft

$4.99

$

In Stock, only 2 left!

0

32

Cub Cadet BS-690662

Nut (Flywheel)
(Superseded to 712-0318)

$3.49

$

In Stock, Qty 13

0

33

Cub Cadet BS-695161

Cup-Flywheel

$37.99

$

Usually ships in 2-12 days

0

34

Cub Cadet BS-691346

Fan-Flywheel

$26.99

$

Usually ships in 2-12 days

0

35

Cub Cadet BS-19069

Flywheel Puller

$23.99

$

In Stock, only 2 left!

0

36

Cub Cadet BS-692693

Flywheel

$170.99

$

Usually ships in 2-12 days

0

37

Cub Cadet BS-691879

Gasket-Breather Passage

$6.99

$

In Stock, only 1 left!

0

38

Cub Cadet BS-399781

Seal-Oil (PTO Side)
(Superseded to BS-399781S)

$7.99

$

In Stock, Qty 14

0

39

Cub Cadet BS-692044

Seal-Valve

$

$

Not available

40

Cub Cadet BS-691893

Gasket-Exhaust

$4.49

$

In Stock, Qty 10

0

41

Cub Cadet BS-299819

Seal-Oil (Magneto Side)
(Superseded to BS-299819S)

$5.49

$

In Stock, Qty 20+

0

42

Cub Cadet BS-695166

Gasket-Cylinder Head
(Superseded to BS-697230)

$9.99

$

In Stock, Qty 9

0

43

Cub Cadet BS-272481

Gasket-Breather
(Superseded to BS-699833)

$5.49

$

In Stock, Qty 10

0

44

Cub Cadet BS-692232

Gasket-Crankcase

$5.99

$

In Stock, Qty 20+

0

45

Cub Cadet BS-273241

Gasket-Rocker Cover
(Superseded to BS-691890)

$7.99

$

In Stock, Qty 7

0

46

Cub Cadet BS-694088

Cylinder Head Plate Gasket

$8.49

$

In Stock, Qty 20+

0

47

Cub Cadet BS-691031

O-Ring Seal (Dipstick)

$5.49

$

In Stock, Qty 10

0

48

Cub Cadet BS-692296

O-Ring Seal (Dipstick Tube)

$4.99

$

In Stock, Qty 6

0

49

Cub Cadet BS-692704

Gasket Set-Carburetor
(Superseded to BS-792383)

$28.99

$

In Stock, Qty 8

0

50

Cub Cadet BS-694090

Gasket Set-Engine
(Superseded to BS-795442)

$90.99

$

Usually ships in 2-12 days

0

51

Cub Cadet BS-695109

Label-Emissions

$3.99

$

Usually ships in 2-12 days

0
