TM5000x50B - Murray Walk-Behind Trimmer (2000) Trimmer Head Assembly Parts Diagram

Walk-Behind Trimmer

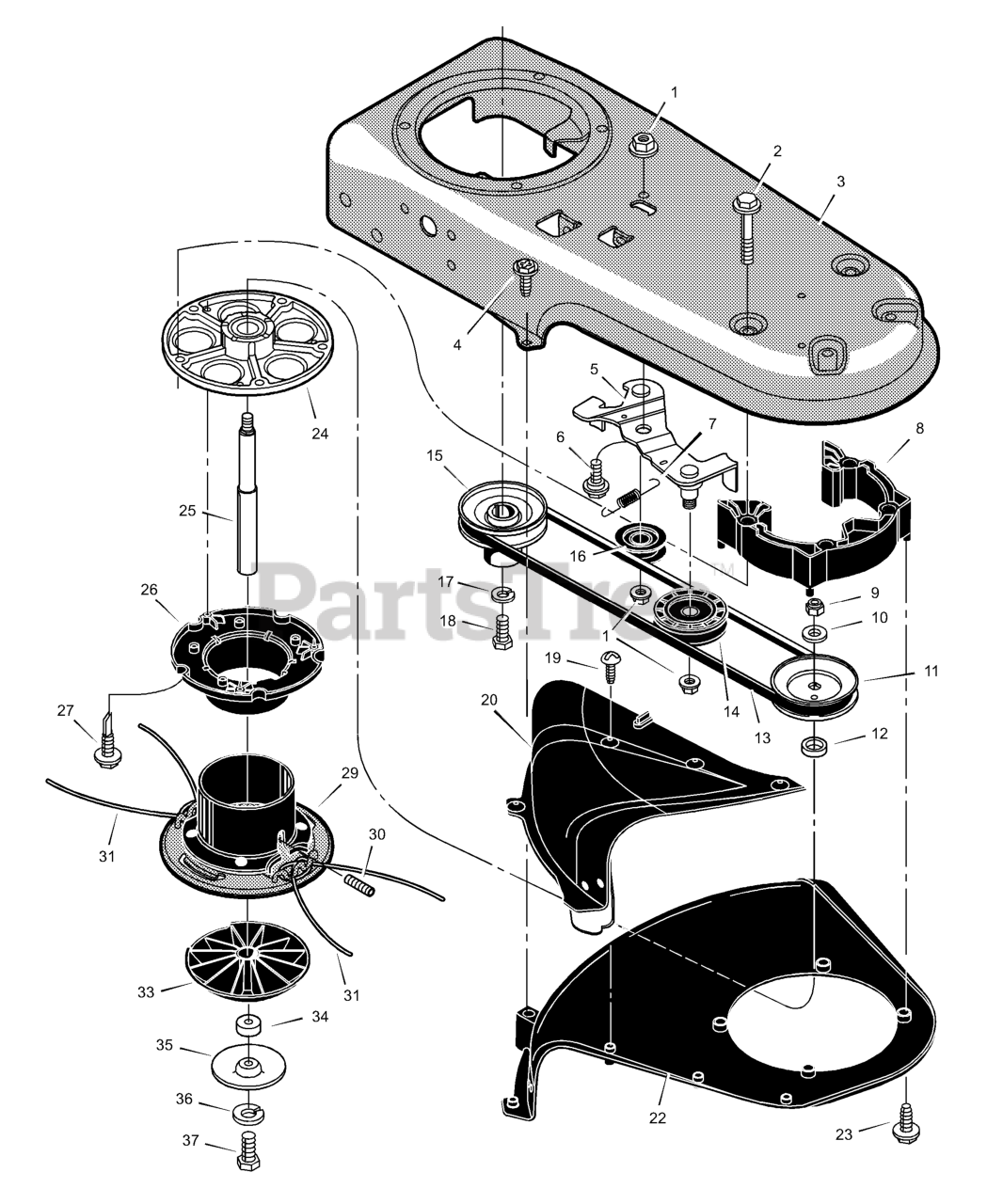

Trimmer Head Assembly Parts Diagram

  • Title

1

Murray 710140

Nut

$10.99

$

Usually ships in 2-12 days

0

2

Murray 711978MA

Bolt
(Superseded to 025X11MA)

$6.99

$

Usually ships in 2-12 days

0

3

Murray 740150-833

Housing, Trimmer

$

$

Not available

4

Murray 710272

Screw

$11.99

$

Usually ships in 2-12 days

0

5

Murray 740232

Assembly, Idler

$

$

Not available

6

Murray 710200

Bolt

$7.99

$

Usually ships in 2-12 days

0

7

Murray 712403MA

Spring

$13.99

$

In Stock, only 1 left!

0

8

Murray 740292MA

Assembly, Spacer

$29.99

$

Usually ships in 2-12 days

0

9

Murray 712148MA

Nut

$3.99

$

Usually ships in 2-12 days

0

10

Murray 710083

Washer

$12.99

$

In Stock, only 3 left!

0

11

Murray 740171MA

Pulley, Cutting Head

$

$

Not available

12

Murray 740173

Spacer

$

$

Not available

13

Murray 711933

Belt

$

$

Not available

14

Murray 740244MA

PULLEY, IDLER, V, 1.88

$39.99

$

Usually ships in 2-12 days

0

15

Murray 740179MA

Pulley, Engine

$

$

Not available

16

Murray 740183MA

Pulley, Idler

$

$

Not available

17

Murray 712147

Lockwasher

$

$

Currently unavailable

18

Murray 712146

Bolt

$1.99

$

Usually ships in 2-12 days

0

19

Murray 26X235MA

Screw

$4.49

$

Usually ships in 2-12 days

0

20

Murray 770070MA

Assembly, Guard
(Superseded to 740205MA)

$103.99

$

Usually ships in 2-12 days

0

22

Murray 740206

Shield, Trimmer

$17.99

$

Usually ships in 2-12 days

0

23

Murray 740255

Screw

$2.49

$

Usually ships in 2-12 days

0

24

Murray 092574

Assembly, Jackshaft Housing

$

$

Currently unavailable

25

Murray 740169MA

Jackshaft

$57.99

$

Usually ships in 2-12 days

0

26

Murray 740163MA

Wrap, Lower Weed

$21.99

$

Usually ships in 2-12 days

0

27

Murray 712126MA

Screw

$3.99

$

Usually ships in 2-12 days

0

29

Murray 740175-833

Assembly, Cutting Disc

$

$

Currently unavailable

30

Murray 712127MA

Screw, Set

$5.99

$

Usually ships in 2-12 days

0

31

Murray 740164

Line, Cutting

$

$

Not available

33

Murray 740157MA

Guide, Height

$22.99

$

In Stock, only 1 left!

0

34

Murray 740210MA

Spacer

$

$

Not available

35

Murray 740209MA

Shield, Abrasion

$16.99

$

In Stock, only 2 left!

0

36

Murray 120380

Lockwasher
(Superseded to 7090052SM)

$3.49

$

In Stock, Qty 5

0

37

Murray 180022MA

Bolt

$3.99

$

Usually ships in 2-12 days

0
