TM6000x50NA - Murray Walk-Behind Trimmer (2006) Cutting Head Assembly Parts Diagram

Walk-Behind Trimmer

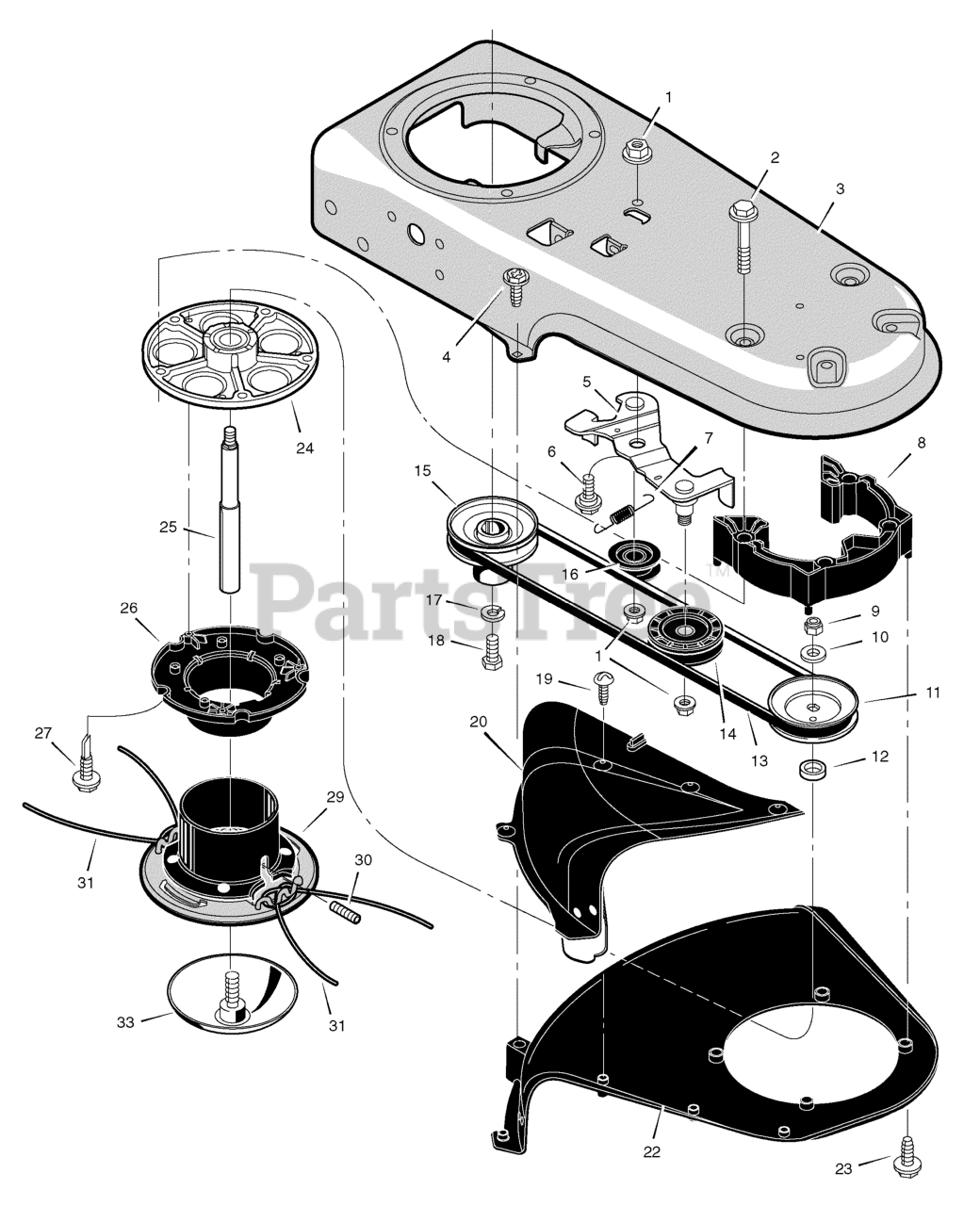

Cutting Head Assembly Parts Diagram

  • Title

1

Murray 015X84MA

Nut
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

2

Murray 025X11MA

Bolt

$6.99

$

Usually ships in 2-12 days

0

3

Murray 740150E701MA

Housing, Trimmer

$193.99

$

Usually ships in 2-12 days

0

4

Murray 26X256MA

Screw

$

$

Not available

5

Murray 740232MA

Assembly, Idler

$

$

Not available

6

Murray 009X48MA

Bolt

$7.49

$

Usually ships in 2-12 days

0

7

Murray 712403MA

Spring

$13.99

$

In Stock, only 1 left!

0

8

Murray 740292MA

Assembly, Spacer

$29.99

$

Usually ships in 2-12 days

0

9

Murray 15X119MA

Nut

$3.49

$

Usually ships in 2-12 days

0

10

Murray 17X104MA

Washer
(Superseded to 710083MA)

$7.49

$

In Stock, only 2 left!

0

11

Murray 740171MA

Pulley, Cutting Head

$

$

Not available

12

Murray 740173MA

Spacer

$16.99

$

Usually ships in 2-12 days

0

13

Murray 711933MA

Belt
(Superseded to 7701014MA)

$28.99

$

Usually ships in 2-12 days

0

14

Murray 740244MA

PULLEY, IDLER, V, 1.88

$39.99

$

Usually ships in 2-12 days

0

15

Murray 740179MA

Pulley, Engine

$

$

Not available

16

Murray 740183MA

Pulley, Idler

$

$

Not available

17

Murray 018X31MA

Lockwasher

$4.49

$

Usually ships in 2-12 days

0

18

Murray 001X20MA

Bolt

$4.49

$

In Stock, only 4 left!

0

19

Murray 26X235MA

Screw

$4.49

$

Usually ships in 2-12 days

0

20

Murray 770070MA

Assembly, Guard
(Superseded to 740205MA)

$103.99

$

Usually ships in 2-12 days

0

22

Murray 740206MA

Shield, Trimmer

$96.99

$

Usually ships in 2-12 days

0

23

Murray 26X294MA

Screw

$3.49

$

Usually ships in 2-12 days

0

24

Murray 1001049MA

Assembly, Jackshaft Housing

$51.99

$

In Stock, Qty 14

0

25

Murray 740300MA

Jackshaft

$19.99

$

Usually ships in 2-12 days

0

26

Murray 740163MA

Wrap, Upper Weed

$21.99

$

Usually ships in 2-12 days

0

27

Murray 712126MA

Screw

$3.99

$

Usually ships in 2-12 days

0

29

Murray 740175E701MA

Assembly, Cutting Disc
(Superseded to 770037MA)

$

$

Not available

30

Murray 712127MA

Screw, Set

$5.99

$

Usually ships in 2-12 days

0

31

Murray 740164MA

Line, Cutting
(Superseded to 740165MA)

$5.99

$

In Stock, only 4 left!

0

33

Murray 740299MA

Guide Assembly, Metal Height

$39.99

$

In Stock, only 2 left!

0
