TM6100x8B - Scotts Walk-Behind Trimmer (2004) Cutter Drive Assembly Parts Diagram

Walk-Behind Trimmer

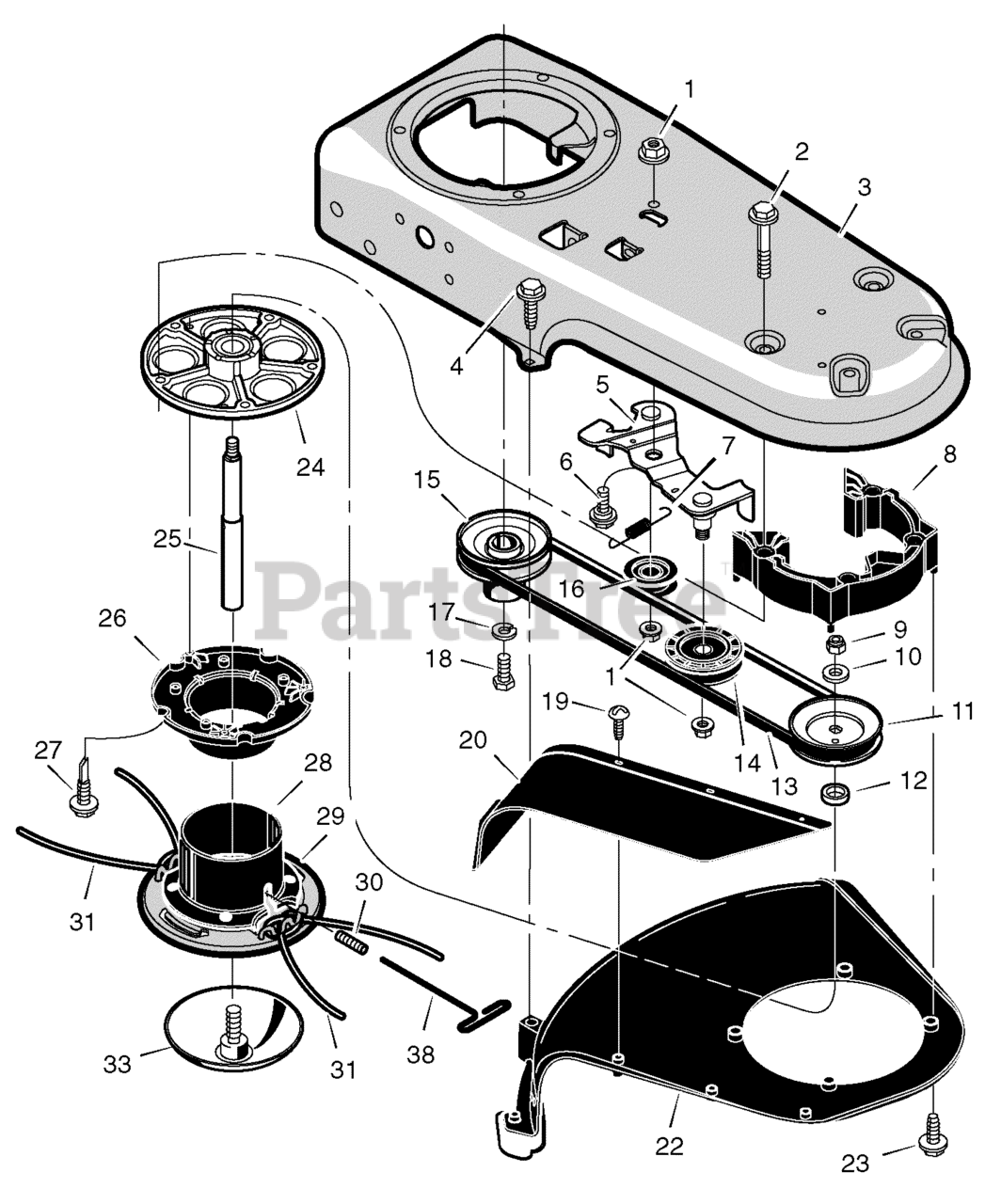

Cutter Drive Assembly Parts Diagram

  • Title

1

Murray 015X84

Nut
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

2

Murray 025X11

Screw

$6.99

$

Usually ships in 2-12 days

0

3

Murray 740150E700

Frame

$

$

Currently unavailable

4

Murray 26X256

Screw

$

$

Not available

5

Murray 740232

Bracket, Idler Assembly

$

$

Not available

6

Murray 009X48

Bolt

$7.49

$

Usually ships in 2-12 days

0

7

Murray 712403

Spring, Extension

$13.99

$

In Stock, only 1 left!

0

8

Murray 740292

Spacer Assembly, Jackshaft

$29.99

$

Usually ships in 2-12 days

0

9

Murray 712148

Nut

$3.99

$

Usually ships in 2-12 days

0

10

Murray 17X104

Washer, Flat

$7.49

$

In Stock, only 2 left!

0

11

Murray 740171

Pulley, Cutting Head

$

$

Not available

12

Murray 740173

Spacer, Upper Pulley

$

$

Not available

13

Murray 711933

Belt, Trimmer

$

$

Not available

14

Murray 740244

"V" Pulley

$39.99

$

Usually ships in 2-12 days

0

15

Murray 740179

Pulley, Engine

$

$

Not available

16

Murray 740183

Pulley, Idler

$

$

Not available

17

Murray 018X31

Lockwasher
(Superseded to 018X31MA)

$4.49

$

Usually ships in 2-12 days

0

18

Murray 001X20

Bolt
(Superseded to 001X20MA)

$4.49

$

In Stock, only 4 left!

0

19

Murray 26X235

Screw

$4.49

$

Usually ships in 2-12 days

0

20

Murray 740167

Flap, Debris

$20.99

$

Usually ships in 2-12 days

0

22

Murray 740205

Shield, Trimmer

$

$

Not available

23

Murray 26X294

Screw

$3.49

$

Usually ships in 2-12 days

0

24

Murray 1001049

Housing, Jackshaft

$51.99

$

In Stock, Qty 14

0

25

Murray 740300

Shaft, Cutting Head

$19.99

$

Usually ships in 2-12 days

0

26

Murray 740163

Wrap, Weed -Upper

$21.99

$

Usually ships in 2-12 days

0

27

Murray 712126

Screw

$3.99

$

Usually ships in 2-12 days

0

28

Murray 740168

Wrap, Weed -Lower

$

$

Not available

29

Murray 740175E700

Assembly, Cutter Head & Wrap

$

$

Currently unavailable

30

Murray 712127

Screw, Set

$5.99

$

Usually ships in 2-12 days

0

31

Murray 740165

Line, Trimmer 0.155 X 21.25

$5.99

$

In Stock, only 4 left!

0

33

Murray 740299E700

Guide Assembly, Metal Height

$

$

Currently unavailable

38

Murray 712128

Wrench, T-Handle

Note: (found in parts bag)

$22.99

$

Usually ships in 2-12 days

0
