TM6100x8B - Scotts Walk-Behind Trimmer (2004) Mower Housing & Handle Assembly Parts Diagram

Walk-Behind Trimmer

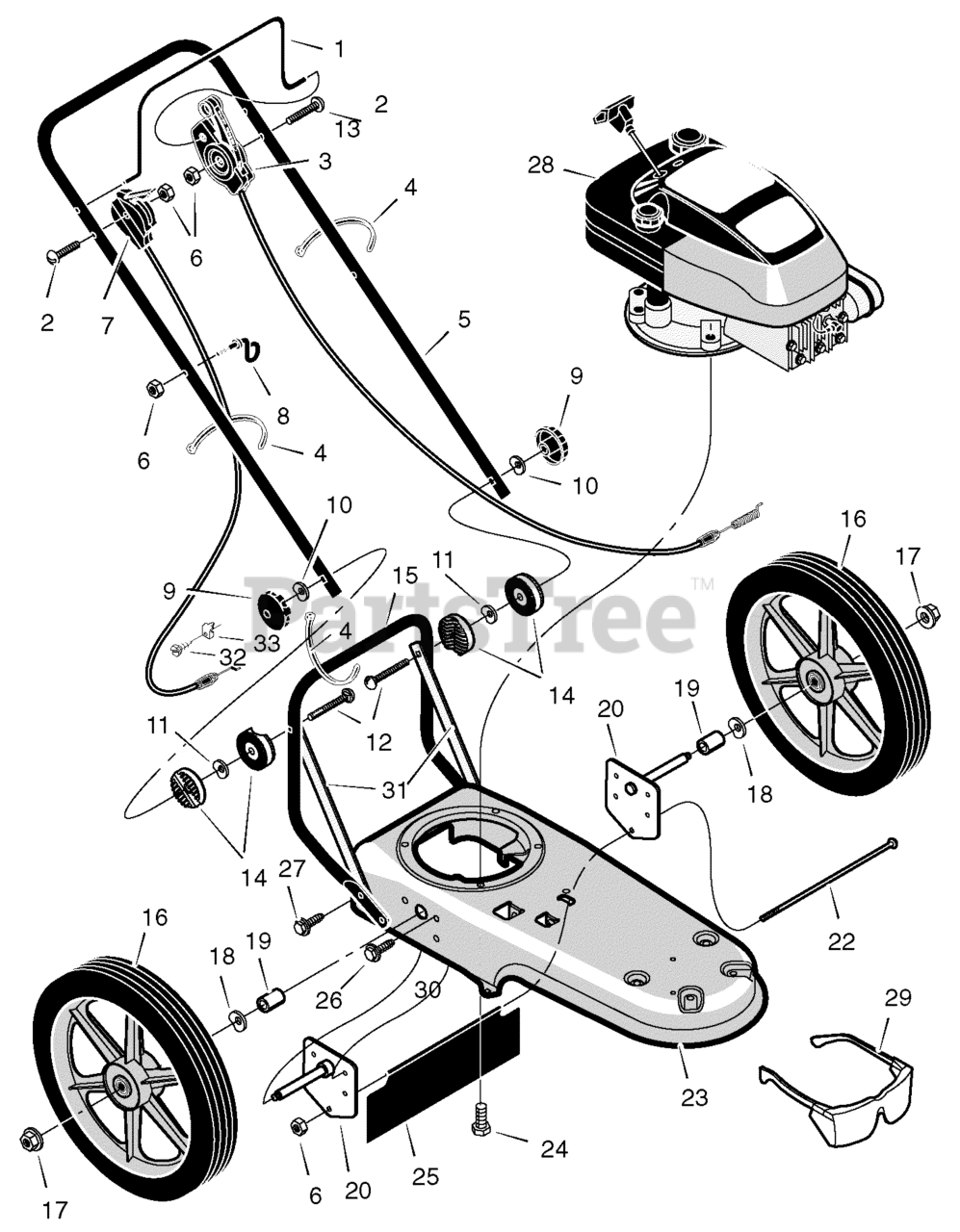

Mower Housing & Handle Assembly Parts Diagram

  • Title

1

Murray 740198E700

Lever, Stop

$

$

Currently unavailable

2

Murray 323035

Bolt

$4.49

$

Usually ships in 2-12 days

0

3

Murray 740193

Cable, Control Latching

$

$

Not available

4

Murray 71372

Tie, Cable

$4.49

$

In Stock, only 1 left!

0

5

Murray 740196E701

Handlebar

$

$

Not available

6

Murray 15X116

Nut

$4.49

$

In Stock, Qty 20+

0

7

Murray 1601039

Control, Throttle

$30.99

$

Usually ships in 2-12 days

0

8

Murray 672510

Guide, Rope

$5.99

$

Usually ships in 2-12 days

0

9

Murray 740202

Knob, Handlebar

$

$

Not available

10

Murray 783000

Washer

$5.49

$

Usually ships in 2-12 days

0

11

Murray 711936

Washer, Spring

$4.49

$

Usually ships in 2-12 days

0

12

Murray 711937

Bolt

$192.99

$

Usually ships in 2-12 days

0

13

Murray 672292

Spacer

$3.99

$

Usually ships in 2-12 days

0

14

Murray 740301

Pivot, Handlebar

$4.99

$

Usually ships in 2-12 days

0

15

Murray 740195E701

Handlebar, Lower

$170.99

$

Usually ships in 2-12 days

0

16

Murray 740185

Wheel & Tire

$74.99

$

Usually ships in 2-12 days

0

17

Murray 015X84

Nut, Axle
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

18

Murray 0020X3

Washer, Spring

$4.49

$

In Stock, Qty 10

0

19

Murray 740190

Spacer

$5.49

$

Usually ships in 2-12 days

0

20

Murray 740188

Assembly, Axle & Bracket

$48.99

$

Usually ships in 2-12 days

0

22

Murray 711935

Bolt, Carriage

$8.49

$

Usually ships in 2-12 days

0

23

Murray 740150E700

Frame

$

$

Currently unavailable

24

Murray 0025X6

Bolt
(Superseded to 0025X6MA)

$5.49

$

Usually ships in 2-12 days

0

25

Murray 740192

Shield, Trailing

$25.99

$

Usually ships in 2-12 days

0

26

Murray 001X45

Bolt
(Superseded to 703822)

$4.49

$

In Stock, only 2 left!

0

27

Murray 26X267

Screw
(Superseded to 26X267MA)

$4.99

$

In Stock, Qty 20+

0

28

Engine

$

$

Not available

29

Murray 711890

Glasses, Safety

$

$

Not available

30

Murray 015X88

Nut
(Superseded to 704067)

$3.99

$

In Stock, Qty 20+

0

31

Murray 1601040E700

Strap, Vibration

$

$

Currently unavailable

32

Murray 26X268

Screw

$3.99

$

Usually ships in 2-12 days

0

33

Murray 42294

Clamp

$

$

Not available

--

Murray F-040207L

Instruction Book & Parts List

$

$

Currently unavailable
