TMO-3746606 (122-836R088) - Montgomery Ward Signature Walk-Behind Mower (1992) General Assembly Parts Diagram

Signature Walk-Behind Mower

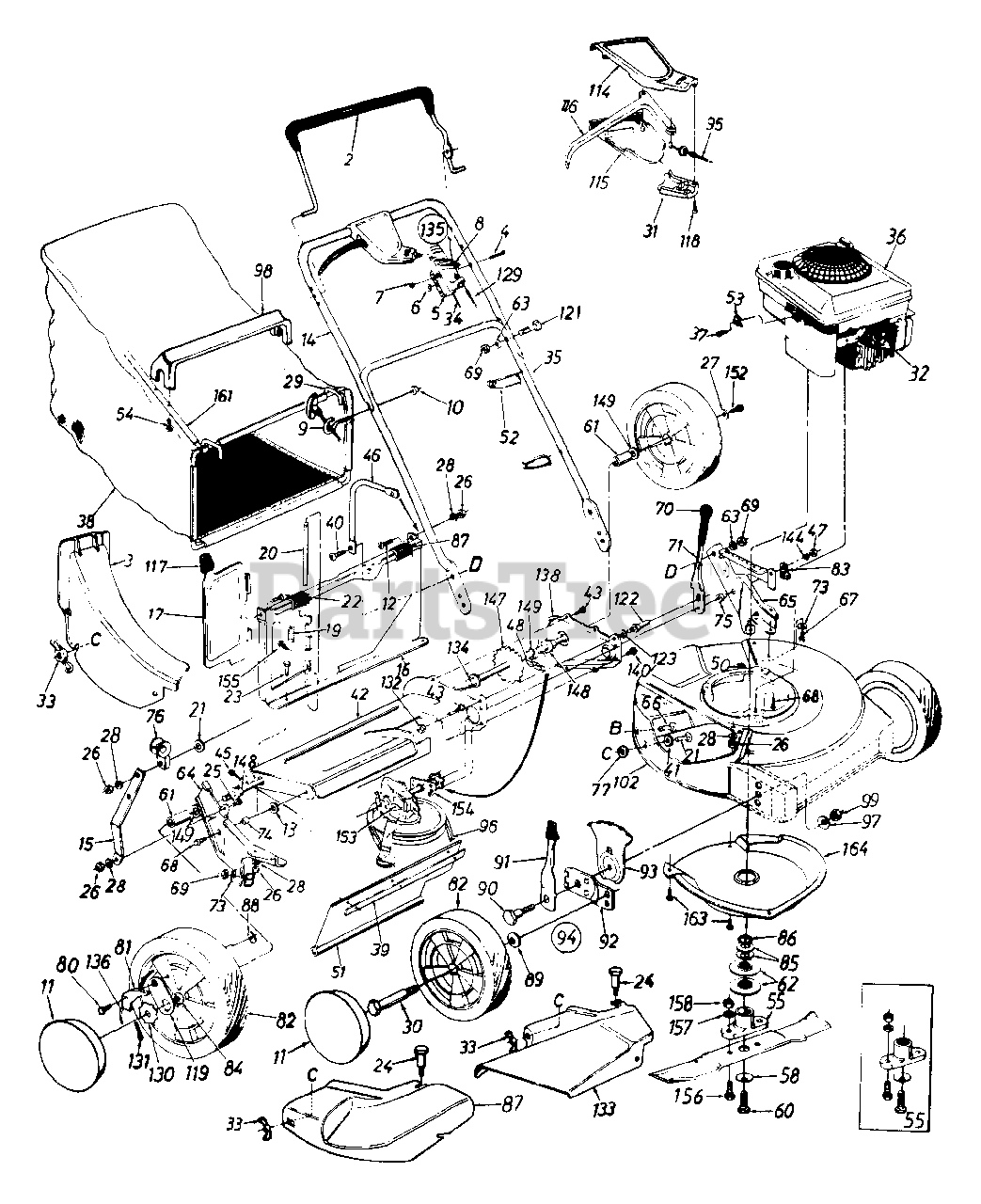

General Assembly Parts Diagram

  • Title

2

MTD 647-0004

Control Handle Ass'y.- L.H.
(Superseded to 747-0824B-0637)

$61.99

$

In Stock, only 1 left!

0

3

MTD 731-1023

Rear Discharge Chute Ass'y.

$

$

Not available

4

MTD 710-0605

Oval C-Sunk Scr.

$4.49

$

In Stock, only 4 left!

0

5

MTD 746-0875

Throttle Body
(Superseded to 946-0875)

$8.99

$

In Stock, Qty 15

0

6

MTD 736-0501

Spr. Wash..66" I.D.
(Superseded to 936-0501)

$6.49

$

Usually ships in 3-6 days

0

7

MTD 712-0291

Hex L-Nut 1/4-20 Thd.

$4.49

$

In Stock, Qty 9

0

8

MTD 746-0876

Throttle Lever
(Superseded to 946-0876)

$7.99

$

In Stock, Qty 11

0

9

MTD 710-1205

Rope Guide

$3.99

$

In Stock, Qty 15

0

10

MTD 712-0324

Hex L-Nut 1/4-20 Thd.

$3.49

$

In Stock, Qty 20+

0

11

MTD 720-0249

Hub Cap
(Superseded to 920-0249)

$

$

Not available

12

MTD 710-0946

Truss Mach, Scr. 1/4-20 x .62"

$3.49

$

Usually ships in 3-6 days

0

13

MTD 736-0258

Fl-Wash..383" I.D. x 1" O.D.

$4.49

$

In Stock, only 2 left!

0

14

MTD 740-0439B

Upper Handle - Painted

$

$

Currently unavailable

15

MTD 16129A

Panel Support Brkt.
(Superseded to 16129A-0637)

Variations

MTD 16129A-0637

BRACKET-PANEL SUP - POWDER BLACK (0637)

$10.99

$

Usually ships in 3-6 days

0

$10.99

$

Usually ships in 3-6 days

0

16

MTD 16862

Rear Catcher Panel Ass'y.

Variations

MTD 16862-0483

No Longer Available - CHARCOAL GRAY (0483)

$

$

Not available

MTD 16862-0637

No Longer Available PANEL ASM - POWDER BLACK (0637)

$

$

Not available

MTD 16862-0638

No Longer Available PANEL ASM - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 16862-0648

No Longer Available - TECH GRAY (0648)

$

$

Not available

MTD 16862-0662

No Longer Available PANEL ASM - OYSTER GRAY (0662)

$

$

Not available

MTD 16862-0665

No Longer Available PANEL ASM - YARDMAN GREEN (0665)

$

$

Not available

$

$

17

MTD 17095A

Rear Discharge Door

Variations

MTD 17095A-0637

Top Discharge Door - POWDER BLACK (0637)

$

$

Not available

$

$

?18

MTD 736-0211

Fl-Wash..285" I.D. x 1.25" O.D.

$6.49

$

In Stock, Qty 8

0

19

MTD 732-0483A

Torsion Spring

$9.99

$

Usually ships in 3-6 days

0

20

MTD 747-0514

Pivot Pin

$

$

Not available

21

MTD 710-0134

Carriage Bolt 1/4-20 x .62"

$3.99

$

In Stock, Qty 20+

0

22

MTD 710-0255

Truss Mach. Scr. 1/4-20 x 3/4"
(Superseded to 710-0924)

$4.49

$

In Stock, Qty 20+

0

23

MTD 710-0289

Hex Bolt 1/4-20 x .50" Lg.
(Superseded to 910-0289)

$3.49

$

Usually ships in 3-6 days

0

24

MTD 738-0704

Shoulder Bolt .312 Dia. x .18 Lg.

Note: Special

$16.99

$

Usually ships in 3-6 days

0

25

MTD 710-0258

Hex Bolt 1/4-20 x .62" Lg.
(Superseded to 710-0751)

$3.99

$

In Stock, Qty 20+

0

26

MTD 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.49

$

In Stock, only 2 left!

0

27

MTD 736-0270

Bell-Wash. 1/4" 1.0.

$3.99

$

In Stock, Qty 13

0

28

MTD 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 13

0

29

MTD 747-0705

Front Grass Catcher Frame
(Superseded to 747-0705-0637)

Variations

MTD 747-0705-0637

FRAME-CATCHER-FR - POWDER BLACK (0637)

$49.99

$

Usually ships in 3-6 days

0

$49.99

$

Usually ships in 3-6 days

0

30

MTD 738-0102

Axle Bolt

$9.49

$

In Stock, Qty 11

0

31

MTD 731-1059

S.P. Control Cover
(Superseded to 753-0833)

$47.99

$

In Stock, only 4 left!

0

32

MTD 735-0639

Spark Plug Insulator

$

$

Not available

33

MTD 712-0397

Wing Nut w/Washer
(Superseded to 712-0397A)

$3.99

$

In Stock, Qty 20+

0

34

MTD 746-0674

Throttle Control Wire 61"
(Superseded to 946-0674A)

$17.99

$

In Stock, Qty 5

0

35

MTD 749-0725

Lower Handle - Painted
(Superseded to 749-0907B)

$46.99

$

In Stock, Qty 7

0

36

Engine - B&S 124702-3106-01

Note: 4.5 H.P.

$

$

Not available

37

MTD 710-1237

Hex Self-Tap Scr. #10-32 x .62"

$4.49

$

Usually ships in 3-6 days

0

38

MTD 764-0257

Grass Bag
(Superseded to 964-0082)

$

$

Not available

39

MTD 14835

Retaining Strip

$

$

Not available

40

MTD 710-0323

Truss Mach. Scr. 5/16-18 x .75"

$4.49

$

In Stock, only 2 left!

0

41

MTD 736-0204

Fl-Wash..344" I.D. x .62"

$3.99

$

In Stock, Qty 20+

0

42

MTD 17055B

Chain - Axle Ass'y.

Variations

MTD 17055B-0483

No Longer Available Axle ASM- - CHARCOAL GRAY (0483)

$

$

Not available

MTD 17055B-0498

No Longer Available AXLE ASM- - OLD CUB YELLOW (0498)

$

$

Not available

MTD 17055B-0629

No Longer Available Axle ASM- - SILVER FLAKE (0629)

$

$

Not available

MTD 17055B-0637

AXLE ASSY-CHAIN - POWDER BLACK (0637)

$

$

Not available

MTD 17055B-0638

AXLE ASSY-CHAIN - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 17055B-0648

No Longer Available AXLE ASM- - TECH GRAY (0648)

$

$

Not available

MTD 17055B-0650

No Longer Available AXLE ASM- - RED METALLIC (0650)

$

$

Not available

MTD 17055B-0662

No Longer Available Axle ASM- - OYSTER GRAY (0662)

$

$

Not available

MTD 17055B-0665

AXLE ASSY-CHAIN - YARDMAN GREEN (0665)

$

$

Not available

MTD 17055B-0667

No Longer Available AXLE ASM- - MIDNIGHT BLUE (0667)

$

$

Not available

MTD 17055B-0691

No Longer Available AXLE ASM- - BLACK JACK (0691)

$

$

Not available

$

$

43

MTD 710-0352

Hex B-Tap Scr. 1/4" x .38" Lg.

$4.49

$

Usually ships in 3-6 days

0

?44

MTD 741-0180

Flange Ball Bearing 1/2" I.D.
(Superseded to 941-0180)

$18.99

$

Usually ships in 3-6 days

0

45

MTD 710-0776A

Hex AB-Tap Scr. 1/4 x .62"
(Superseded to 710-0896)

$3.99

$

In Stock, Qty 20+

0

46

MTD 749-0778

Catcher Panel Support Arm

$

$

Not available

47

MTD 712-0296

Hex Patch L-Nut 3/8-24 Thd.
(Superseded to 912-0296)

$2.99

$

In Stock, only 1 left!

0

48

MTD 713-0353

#48 Chain .500" Pitch x 30 Links
(Superseded to 913-0353)

$

$

Not available

50

MTD 731-0564

Plug

$

$

Not available

51

MTD 731-0672A

Rear Flap 3.75" x 17.30" Lg.

$31.99

$

Usually ships in 3-6 days

0

52

MTD 726-0240

Cable Tie
(Superseded to 725-0157)

$3.49

$

In Stock, only 4 left!

0

53

MTD 751-0568

Cable Clamp
(Superseded to BS-690798)

$5.49

$

In Stock, only 2 left!

0

54

MTD 710-1025

Hex AB Scr. #12 x 1.25" Lg.

$5.99

$

Usually ships in 3-6 days

0

55

MTD 753-0484

Blade Adapter Kit

$21.99

$

In Stock, only 1 left!

0

?56

MTD 742-0563

21" Mulching Blade
(Superseded to 942-0721)

$32.99

$

Usually ships in 3-6 days

0

MTD 742-0306A

21" Blade
(Superseded to 942-0621)

$29.99

$

In Stock, only 2 left!

0

?57

MTD 731-1343

Mulching Plug
(Superseded to 731-1343A)

$

$

Not available

58

MTD 736-0452

Bell-Wash..39" I.D.

$4.49

$

In Stock, Qty 16

0

60

MTD 710-1044

Hex Bolt 3/8-24 x 1.5" Lg. (Grade 5)

$3.99

$

In Stock, Qty 20+

0

61

MTD 748-0190

Spacer .513" I.D. x .703" O.D. x 69" Lg.

$5.99

$

In Stock, only 1 left!

0

62

MTD 756-0961

Lower Pulley Half

$

$

Not available

63

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

64

MTD 16136A

R.H. Handle Wheel Brkt. Ass'y.
(Superseded to 16136C-0637)

$

$

Not available

65

MTD 16137B

L.H. Handle Wheel Brkt. Ass'y.
(Superseded to 16137C-0637)

$

$

Not available

66

MTD 710-0260

Carriage Bolt 5/16-18 x .62"
(Superseded to 710-0260A)

$3.99

$

In Stock, Qty 20+

0

67

MTD 710-0603

Hex Wash. Hd. B-Tap Scr. 5/16-18

$4.49

$

Usually ships in 3-6 days

0

68

MTD 710-0654A

Hex Wash. Hd. TT-Tap Scr. 3/8-16

$3.99

$

In Stock, only 4 left!

0

69

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

70

MTD 720-0223

Grip

$13.99

$

In Stock, Qty 10

0

71

MTD 732-0606

Height Adj. Lever

$

$

Not available

73

MTD 736-0242

Bell-Wash. 5/16" I.D.

$3.99

$

In Stock, Qty 20+

0

74

MTD 750-0736

Spacer
(Superseded to 950-0736)

$5.49

$

Usually ships in 3-6 days

0

75

MTD 750-0624

Shld. Spacer .500" Dia.

$

$

Not available

76

MTD 719-0279

Rope Guide

$14.99

$

Usually ships in 3-6 days

0

77

MTD 726-0233

Bolt Retainer 1/4 x .50" O.D.

$3.99

$

In Stock, only 2 left!

0

80

MTD 738-0137

Shld. Scr..342" Dia. x .268

$

$

Not available

81

MTD 748-0188B

Pawl
(Superseded to 948-0188B)

$10.99

$

In Stock, Qty 18

0

82

MTD 634-0020

Wheel Ass'y. Comp.

$37.99

$

In Stock, Qty 15

0

83

MTD 726-0175

Clamp

$

$

Not available

84

MTD 756-0962

Upper Pulley Half

$

$

Not available

85

MTD 736-0473

Bell-Washer 7/8" I.D.

$

$

Not available

86

MTD 748-0358

Crankshaft Spacer

$

$

Not available

87

MTD 731-0880

Panel Clip

$3.49

$

Usually ships in 3-6 days

0

88

MTD 712-0414

Weld L-Nut 1/4-20 Thd.

$3.99

$

In Stock, Qty 20+

0

89

MTD 736-0105

Bell-Wash..4" I.D. x .88" O.D.

$3.99

$

In Stock, Qty 20+

0

90

MTD 738-0507B

Shld. Bolt .5" Dia. x .434"

$4.49

$

In Stock, Qty 20+

0

91

MTD 14832

Spring Lever Ass'y. w/Knob
(Superseded to 94832)

$10.99

$

In Stock, Qty 8

0

92

MTD 15262B

Pivot Bar

Variations

MTD 15262B-0637

Pivot Bar - POWDER BLACK (0637)

$13.99

$

Usually ships in 3-6 days

0

$13.99

$

Usually ships in 3-6 days

0

93

MTD 15261A

Height Adj. Plate
(Superseded to 787-01290A)

$11.99

$

In Stock, only 2 left!

0

94

MTD 14578

Front Height Adj. Ass'y. Comp.- R.H.
(Superseded to 753-06761)

$60.99

$

In Stock, Qty 7

0

MTD 14579

Front Height Adj. Ass'y. Comp.- L.H.
(Superseded to 753-06761)

$60.99

$

In Stock, Qty 7

0

95

MTD 746-0710A

S.P. Cable
(Superseded to 946-0710A)

$37.99

$

In Stock, Qty 7

0

96

MTD 754-0343

"V"-Belt
(Superseded to 954-0343)

$29.99

$

In Stock, Qty 6

0

97

MTD 736-0356

Bell-Wash..39" I.D. x 1.38" O.D.
(Superseded to 936-0356)

$

$

Not available

98

MTD 731-0801

Bag Handle

$

$

Not available

99

MTD 712-0798

Hex Nut 3/8-16 Thd.

$3.99

$

Usually ships in 3-6 days

0

102

MTD 682-0021

21" Deck Ass'y.

Variations

MTD 682-0021-0483

No Longer Available DECK ASM - CHARCOAL GRAY (0483)

$

$

Not available

MTD 682-0021-0629

No Longer Available DECK ASM - SILVER FLAKE (0629)

$

$

Not available

MTD 682-0021-0638

No Longer Available DECK ASM - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 682-0021-0662

No Longer Available DECK ASM - OYSTER GRAY (0662)

$

$

Not available

MTD 682-0021-0665

No Longer Available DECK ASM - YARDMAN GREEN (0665)

$

$

Not available

MTD 682-0021-0671

No Longer Available DECK ASM - BEAVER GREEN (0671)

$

$

Not available

$

$

114

MTD 731-1057

Self-Propelled Control Cover
(Superseded to 753-0833)

$47.99

$

In Stock, only 4 left!

0

115

MTD 731-1058

Self-Propelled Control Cover
(Superseded to 753-0833)

$47.99

$

In Stock, only 4 left!

0

?116

MTD 731-0620

Control Lever
(Superseded to 731-0620A)

$14.99

$

In Stock, only 3 left!

0

117

MTD 720-0190

Door Grip
(Superseded to 731-13116-1)

$12.99

$

In Stock, only 3 left!

0

118

MTD 710-0841

Fl-"C"-Sunk Hd. Tap Scr. #10 x .75" Lg.

$3.99

$

Usually ships in 3-6 days

0

119

MTD 16855

Pawl Plate

$5.99

$

In Stock, Qty 20+

0

121

MTD 710-0671

Curved Carr. Bolt 5/16-18 x 1.38" Lg.

$

$

Not available

122

MTD 711-0805

Shld. Pin 3/8-24 x 1.43" Lg.

$

$

Not available

123

MTD 736-0169

L-Wash. 3/8" I.D.

$3.49

$

In Stock, Qty 20+

0

129

MTD 746-0557

Control Cable 47" Lg.
(Superseded to 946-0557)

$25.99

$

In Stock, Qty 9

0

130

MTD 748-0318

Ratchet Wheel 1.62" O.D.
(Superseded to 948-0318)

$9.99

$

In Stock, Qty 8

0

131

MTD 714-0115

Cotter Pin 1/8" Dia. x 1.00" Lg.

$3.99

$

In Stock, only 1 left!

0

132

MTD 712-0711

Hex Jam Nut 3/8-24 Thd.

$3.99

$

In Stock, Qty 20+

0

133

MTD 731-0884

Side Chute Deflector Ass'y.

$

$

Not available

134

MTD 741-0522

Hex Flange Bearing

$7.99

$

In Stock, only 2 left!

0

135

MTD 811-00185

Throttle Box Comp.
(Superseded to 811-0185)

Note: (Incl. Ref. 4, 5, 6, 7, 8)

$34.99

$

In Stock, Qty 9

0

136

MTD 10622B

Spring - Nylon

$4.49

$

In Stock, Qty 20+

0

138

MTD 17053A

Chain Cover

Variations

MTD 17053A-0480

No Longer Available COVER-CHAI - BRILLIANT GREEN (0480)

$

$

Not available

MTD 17053A-0483

No Longer Available COVER-CHAI - CHARCOAL GRAY (0483)

$

$

Not available

MTD 17053A-0637

No Longer Available COVER-CHAI - POWDER BLACK (0637)

$

$

Not available

MTD 17053A-0638

No Longer Available COVER-CHAI - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 17053A-0650

No Longer Available COVER-CHAI - RED METALLIC (0650)

$

$

Not available

MTD 17053A-0662

No Longer Available COVER-CHAI - OYSTER GRAY (0662)

$

$

Not available

MTD 17053A-0665

No Longer Available COVER-CHAI - YARDMAN GREEN (0665)

$

$

Not available

MTD 17053A-0674

No Longer Available COVER-CHAI - YARDMAN YELLOW (0674)

$

$

Not available

$

$

140

MTD 710-0599

Hex Wash. S-Tap Scr. 1/4-20 x .50" Lg.

$3.99

$

In Stock, Qty 20+

0

144

MTD 736-0300

Fl-Wash..385" I.D. x .87"

$3.99

$

In Stock, Qty 20+

0

147

MTD 738-0719A

Rear Shaft Ass'y. 21.94" Lg.
(Superseded to 938-0719A)

$

$

Not available

148

MTD 741-0324

Hex Flange Bearing .506" I.D. Plastic
(Superseded to 741-0324A)

$7.49

$

In Stock, Qty 8

0

149

MTD 736-0160

Fl-Wash..531" I.D. x .930"

$3.99

$

In Stock, only 2 left!

0

152

MTD 710-0751

Hex Bolt 1/4-20 x .62" Lg. (Grade 5)

$3.99

$

In Stock, Qty 20+

0

153

MTD 717-0417B

Transmission Comp. (See Breakdown)
(Superseded to 917-0417B)

$234.99

$

Usually ships in 3-6 days

0

154

MTD 16500A

Hex Bearing Cup
(Superseded to 16500A-0637)

Variations

MTD 16500A-0637

BEARING-CUP HEX - POWDER BLACK (0637)

$8.99

$

Usually ships in 3-6 days

0

$8.99

$

Usually ships in 3-6 days

0

155

MTD 710-0429

Hex B-Tap Scr. 410 x .38
(Superseded to 910-0429)

$3.49

$

Usually ships in 3-6 days

0

156

MTD 710-1055

Hex Scr. 3/8-24 x 1.0" Lg.

$4.49

$

Usually ships in 3-6 days

0

157

MTD 736-0169

L-Wash. 3/8" I.D.

$3.49

$

In Stock, Qty 20+

0

158

MTD 712-0241

Hex Nut 3/8-24 Thd.

$4.49

$

In Stock, Qty 20+

0

161

MTD 749-0764A

Rear Catcher Frame
(Superseded to 749-0764A-0637)

Variations

MTD 749-0764A-0637

FRAME-CATCHER-RR - POWDER BLACK (0637)

$38.99

$

Usually ships in 3-6 days

0

$38.99

$

Usually ships in 3-6 days

0

163

MTD 710-1005

Hex Wash. Hd. Tap Scr. 1/4 x .5" Lg.
(Superseded to 710-0599)

$3.99

$

In Stock, Qty 20+

0

164

MTD 731-1342

Mulching Baffle

$

$

Not available
