TP-2000 - Echo Trash Pump Carburetor Parts Diagram

Trash Pump

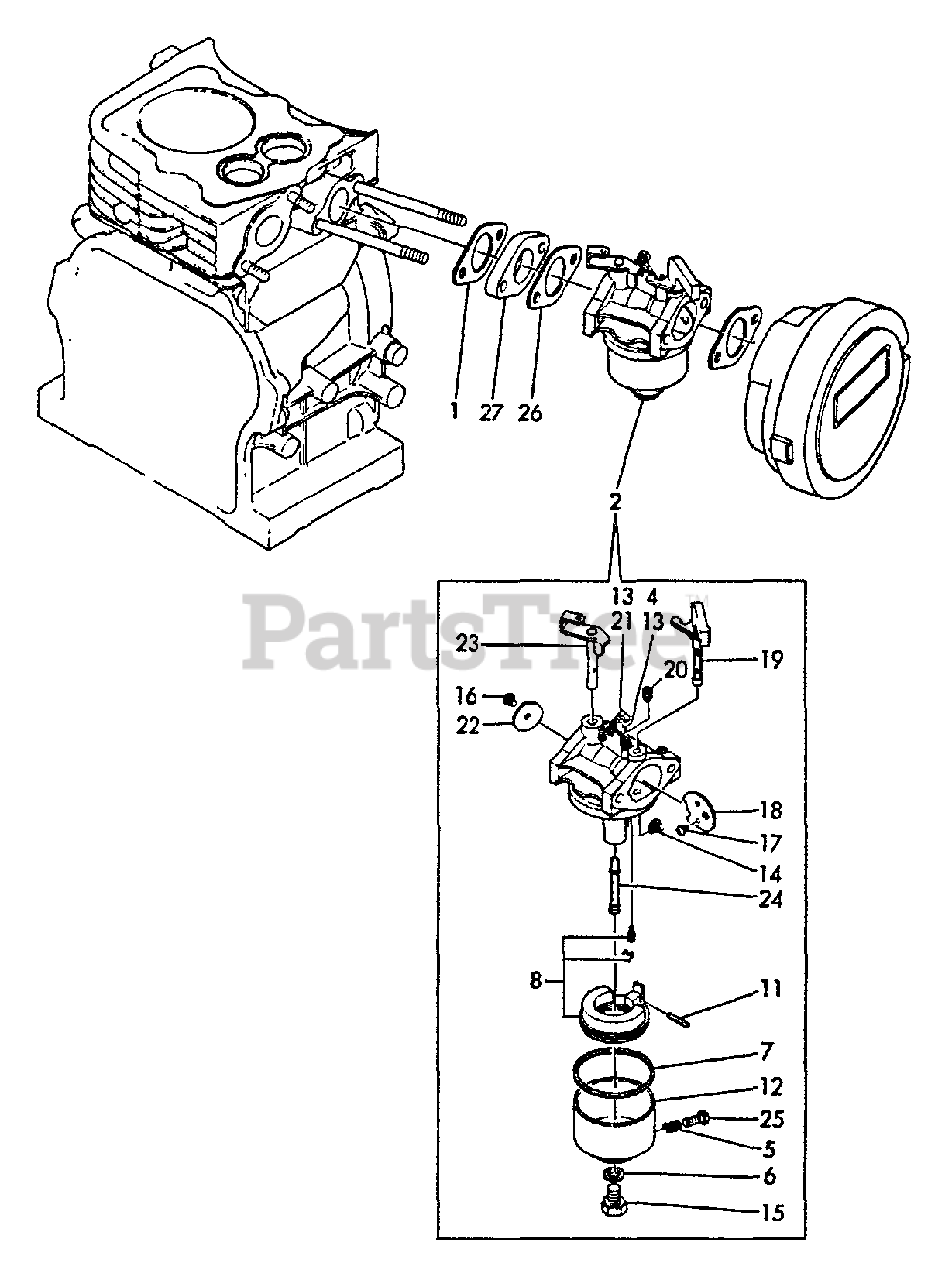

Carburetor Parts Diagram

  • Title

1

Echo Y16031013200

GASKET, EXHAUST
(Superseded to Discontinued)

$

$

Not available

2

Echo Y16064156010

CARBURETOR
(Superseded to Discontinued)

$

$

Not available

4

Echo Y18123056370

SCREW, THROTTLE
(Superseded to Discontinued)

$

$

Not available

5

Echo Y18123056380

SPRING

$4.99

$

Usually ships in 2-4 days

0

6

Echo Y16061056550

WASHER
(Superseded to Discontinued)

$

$

Not available

7

Echo Y16061056610

GASKET
(Superseded to Discontinued)

$

$

Not available

8

Echo Y16061056280

NEEDLE ASSY
(Superseded to Discontinued)

$

$

Not available

11

Echo Y16061056631

PIN
(Superseded to Discontinued)

$

$

Not available

12

Echo Y16061056640

BODY, FLOAT CHAMBER
(Superseded to Discontinued)

$

$

Not available

13

Echo Y18123056380

SPRING

$4.99

$

Usually ships in 2-4 days

0

14

Echo Y16071056650

JET, MAIN
(Superseded to Discontinued)

$

$

Not available

15

Echo Y16061056660

BOLT
(Superseded to Discontinued)

$

$

Not available

16

Echo Y16012056670

SCREW
(Superseded to Discontinued)

$

$

Not available

17

Echo Y16061056670

SCREW -- TAPPING
(Superseded to Discontinued)

$

$

Not available

18

Echo Y16061056680

VALVE, CHOKE
(Superseded to Discontinued)

$

$

Not available

19

Echo Y16061056690

SHAFT, CHOKE
(Superseded to Discontinued)

$

$

Not available

20

Echo Y16071056740

JET, PILOT

$19.99

$

Usually ships in 2-4 days

0

21

Echo Y16021056750

SCREW
(Superseded to Discontinued)

$

$

Not available

22

Echo Y16061056760

VALVE, THROTTLE
(Superseded to Discontinued)

$

$

Not available

23

Echo Y16071056770

SHAFT, THROTTLE
(Superseded to Discontinued)

$

$

Not available

24

Echo Y16061156800

NOZZLE, MAIN
(Superseded to Discontinued)

$

$

Not available

25

Echo Y16061056900

SCREW
(Superseded to Discontinued)

$

$

Not available

26

Echo Y16061056150

GASKET, INTAKE
(Superseded to Discontinued)

$

$

Not available

27

Echo Y16061056160

INSULATOR, INTAKE
(Superseded to Discontinued)

$

$

Not available
