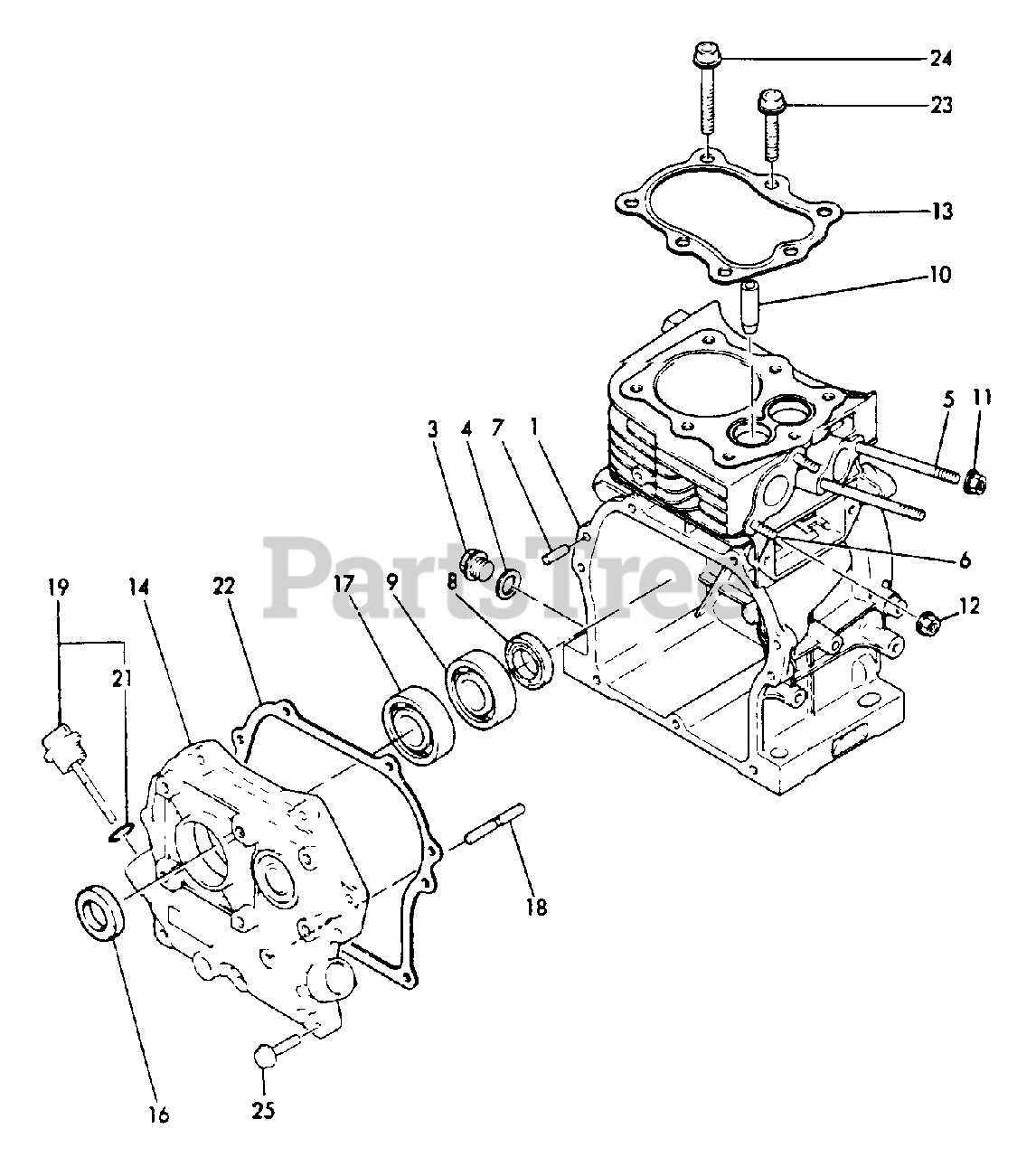

TP-2000 - Echo Trash Pump Cylinder Block Parts Diagram

Trash Pump

Cylinder Block Parts Diagram

  • Title

1

Echo Y76067101560

CYLINDER BLOCK SET
(Superseded to Discontinued)

$

$

Not available

3

Echo Y16061001690

PLUG, DRAIN
(Superseded to Discontinued)

$

$

Not available

4

Echo Y10420059170

GASKET
(Superseded to Discontinued)

$

$

Not available

5

Echo Y16061004570

BOLT - 6X70
(Superseded to Discontinued)

$

$

Not available

6

Echo Y16061004620

BOLT - 6X16
(Superseded to Discontinued)

$

$

Not available

7

Echo Y22312060160

PIN - 6X16
(Superseded to Discontinued)

$

$

Not available

8

Echo Y16061002220

SEAL, OIL

$7.99

$

Usually ships in 2-4 days

0

9

Echo Y24101062040

BEARING, BALL - 6204C3
(Superseded to Discontinued)

$

$

Not available

10

Echo Y16061111800

GUIDE, VALVE - EXHAUST
(Superseded to Discontinued)

$

$

Not available

11

Echo Y26366060002

NUT - 6 -- FLANGE
(Superseded to Discontinued)

$

$

Not available

12

Echo Y26366060002

NUT - 6 -- FLANGE
(Superseded to Discontinued)

$

$

Not available

13

Echo Y16061101330

GASKET, CYLINDER

$12.99

$

Usually ships in 2-4 days

0

14

Echo Y76064101510

SIDE COVER ASSY
(Superseded to Discontinued)

$

$

Not available

16

Echo Y16064002220

SEAL, OIL

$6.49

$

Usually ships in 2-4 days

0

17

Echo Y24101062040

BEARING, BALL - 6204C3
(Superseded to Discontinued)

$

$

Not available

18

Echo Y16061061100

SHAFT, GOVERNOR
(Superseded to Discontinued)

$

$

Not available

19

Echo Y16061101740

CAP ASSY
(Superseded to Discontinued)

$

$

Not available

21

Echo Y24311000150

O-RING - 18
(Superseded to Discontinued)

$

$

Not available

22

Echo Y16061001410

GASKET
(Superseded to Discontinued)

$

$

Not available

23

Echo Y16061004172

BOLT - 8X39
(Superseded to Discontinued)

$

$

Not available

24

Echo Y16061004192

BOLT - 8X60
(Superseded to Discontinued)

$

$

Not available

25

Echo Y26476060252

BOLT - 6X25
(Superseded to Discontinued)

$

$

Not available
