TP-2000 - Echo Trash Pump Intake, Exhaust, Air Cleaner Parts Diagram

Trash Pump

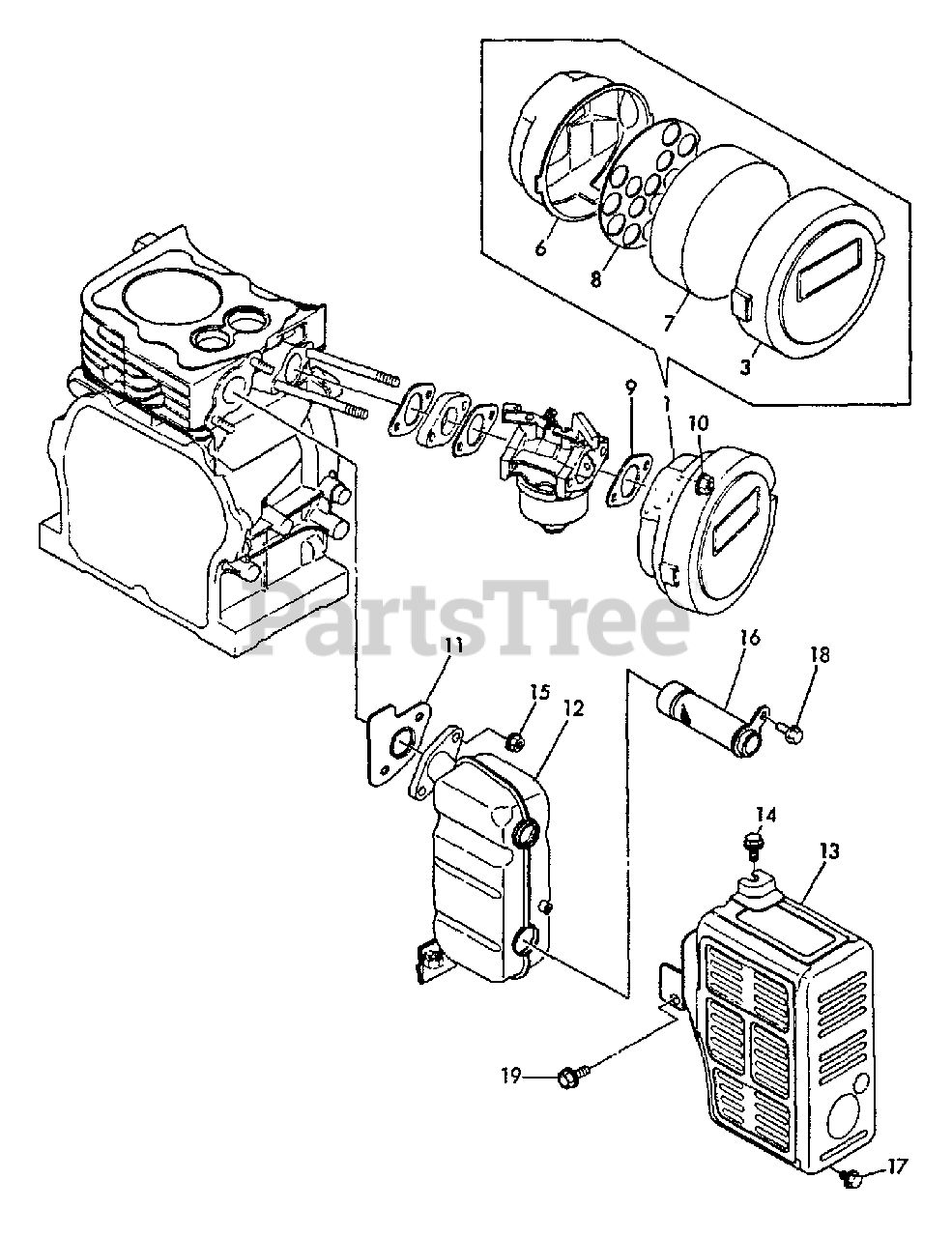

Intake, Exhaust, Air Cleaner Parts Diagram

  • Title

1

Echo Y76061012560

AIR CLEANER ASSY
(Superseded to Discontinued)

$

$

Not available

3

Echo Y76061012540

COVER, AIR FILTER
(Superseded to Discontinued)

$

$

Not available

6

Echo Y16061012520

CASE, AIR FILTER
(Superseded to Discontinued)

$

$

Not available

7

Echo Y16061012540

FILTER, AIR
(Superseded to Discontinued)

$

$

Not available

8

Echo Y16061012550

RETAINER, AIR FILTER
(Superseded to Discontinued)

$

$

Not available

9

Echo Y16061056150

GASKET, INTAKE
(Superseded to Discontinued)

$

$

Not available

10

Echo Y26366060002

NUT - 6 -- FLANGE
(Superseded to Discontinued)

$

$

Not available

11

Echo Y16061013201

GASKET, EXHAUST
(Superseded to Discontinued)

$

$

Not available

12

Echo Y16067113550

MUFFLER
(Superseded to Discontinued)

$

$

Not available

13

Echo Y16064113830

COVER, MUFFLER

$49.99

$

Usually ships in 2-4 days

0

14

Echo Y26476060142

BOLT - 6X8 -- PLATED
(Superseded to Discontinued)

$

$

Not available

15

Echo Y26366060002

NUT - 6 -- FLANGE
(Superseded to Discontinued)

$

$

Not available

16

Echo Y16067113650

SCREEN, SPARK ARRESTOR
(Superseded to Discontinued)

$

$

Not available

17

Echo Y26106060082

BOLT - 6X8 -- PLATED

$0.99

$

Usually ships in 2-4 days

0

18

Echo Y26106060102

BOLT - 6X10 -- PLATED
(Superseded to Discontinued)

$

$

Not available

19

Echo Y26106080142

BOLT - 8X14 -- PLATED
(Superseded to Discontinued)

$

$

Not available
