TP-2000 - Echo Trash Pump Starter Parts Diagram

Trash Pump

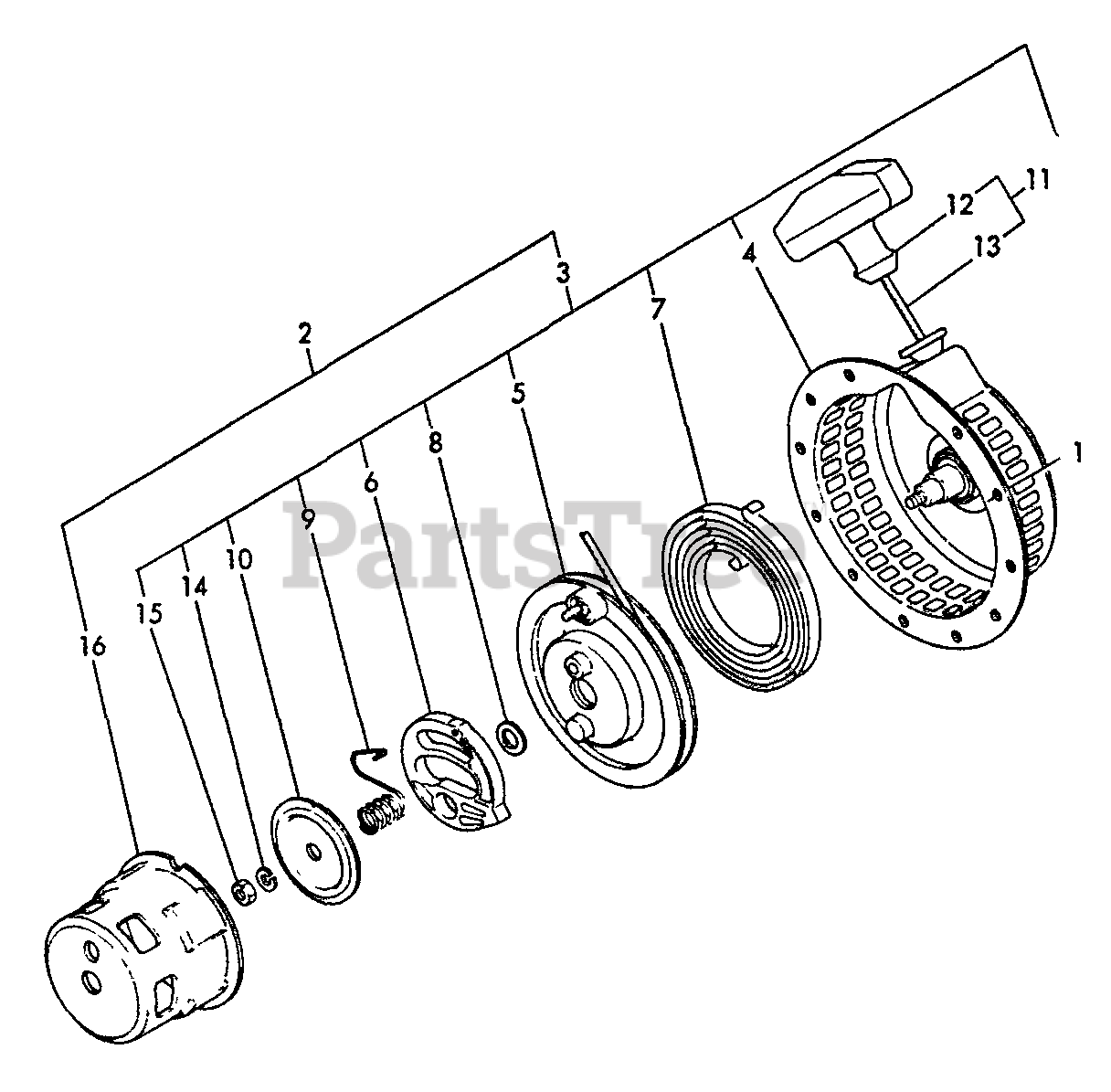

Starter Parts Diagram

  • Title

1

Echo Y26106060122

BOLT - 6X12 -- PLATED
(Superseded to Discontinued)

$

$

Not available

2

Echo Y16064076050

STARTER ASSY

$155.99

$

Usually ships in 2-4 days

0

3

Echo Y16064076250

STARTER ASSY

$136.99

$

Usually ships in 2-4 days

0

4

Echo Y16064076510

CASE, STARTER
(Superseded to Discontinued)

$

$

Not available

5

Echo Y16061076520

PULLEY
(Superseded to Discontinued)

$

$

Not available

6

Echo Y16061076530

RATCHET

$12.99

$

In Stock, only 1 left!

0

7

Echo Y16071076540

SPRING

$39.99

$

Usually ships in 2-4 days

0

8

Echo Y16061076550

WASHER, THRUST
(Superseded to Discontinued)

$

$

Not available

9

Echo Y16064076560

SPRING, FRICTION
(Superseded to Discontinued)

$

$

Not available

10

Echo Y16061076580

PLATE, FRICTION
(Superseded to Discontinued)

$

$

Not available

11

Echo Y16026076610

STARTER ROPE ASSY
(Superseded to Discontinued)

$

$

Not available

12

Echo Y16026076620

GRIP, STARTER
(Superseded to Discontinued)

$

$

Not available

13

Echo Y16026076630

ROPE, STARTER
(Superseded to Discontinued)

$

$

Not available

14

Echo Y22217060000

LOCKWASHER - 6
(Superseded to Discontinued)

$

$

Not available

15

Echo Y26716060002

NUT - 6
(Superseded to Discontinued)

$

$

Not available

16

Echo Y16061076590

REEL, ROPE

$23.99

$

Usually ships in 2-4 days

0
