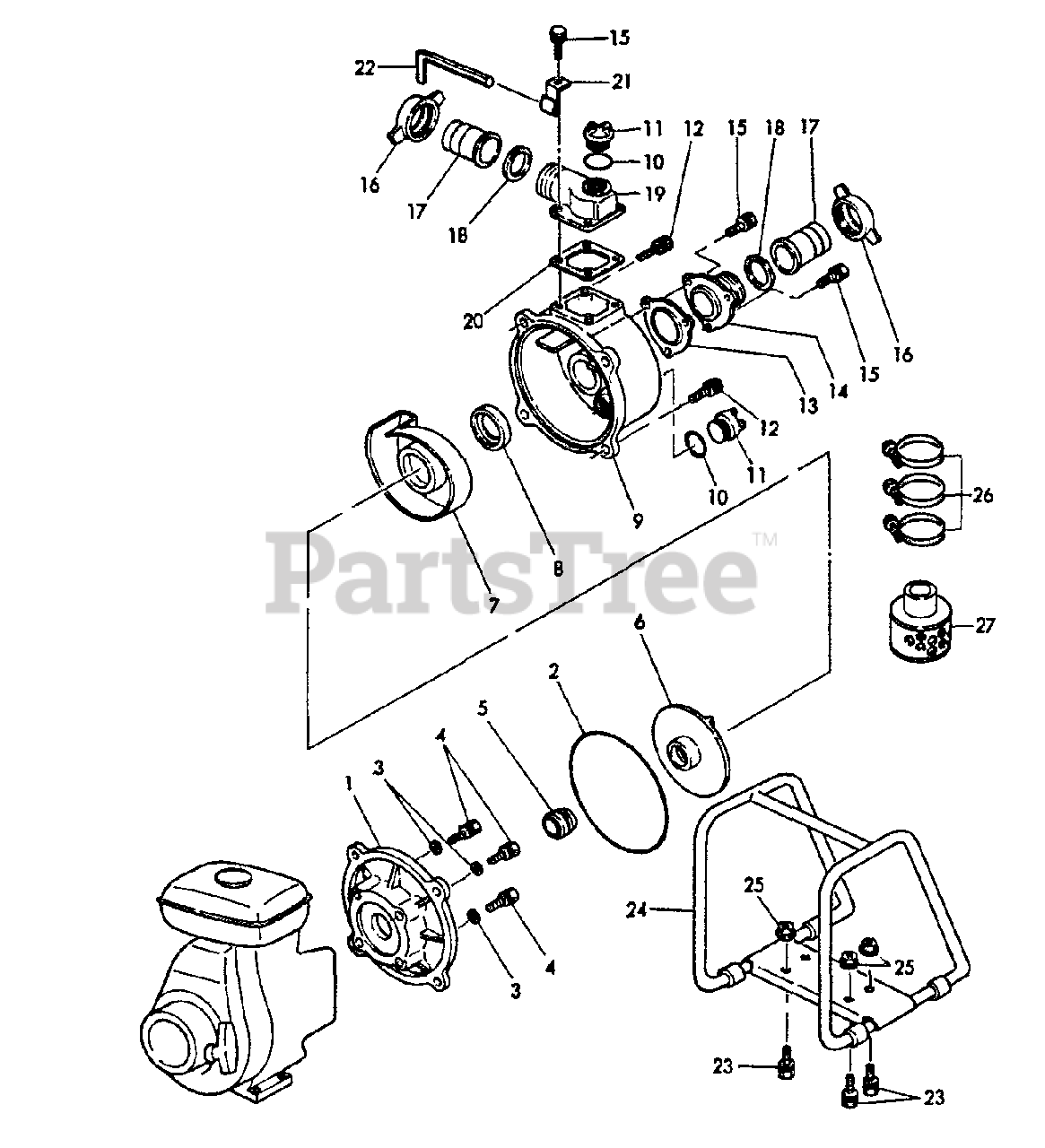

TP-3000 - Echo Trash Pump Pump Parts Diagram

Trash Pump

Pump Parts Diagram

  • Title

1

Echo Y18342948070

COVER, PUMP CASE
(Superseded to Discontinued)

$

$

Not available

2

Echo Y18342948060

GASKET, CASING
(Superseded to Discontinued)

$

$

Not available

3

Echo Y18317848080

GASKET
(Superseded to Discontinued)

$

$

Not available

4

Echo Y16066495530

BOLT - 8×48
(Superseded to Discontinued)

$

$

Not available

5

Echo Y18332948120

SEAL, MECHANICAL
(Superseded to Discontinued)

$

$

Not available

6

Echo Y18342948110

IMPELLER

$110.99

$

Usually ships in 2-4 days

0

7

Echo Y18342948130

CASING, INNER, SHIM 0.8 Y50106200000
(Superseded to Discontinued)

$

$

Not available

8

Echo Y18327848140

GASKET, INNER CASING
(Superseded to Discontinued)

$

$

Not available

9

Echo Y18342948050

CASING
(Superseded to Discontinued)

$

$

Not available

10

Echo Y18317848280

GASKET

$2.49

$

Usually ships in 2-4 days

0

11

Echo Y18317848270

PLUG

$6.49

$

Usually ships in 2-4 days

0

12

Echo Y18332948560

BOLT
(Superseded to Discontinued)

$

$

Not available

13

Echo Y18327848160

VALVE, CHECK

$

$

Not available

14

Echo Y18342948150

CASE (NPT), VALVE
(Superseded to Discontinued)

$

$

Not available

15

Echo Y16066495610

BOLT - 8×25
(Superseded to Discontinued)

$

$

Not available

16

Echo Y18342948200

JOINT (AL-NPT), HOSE
(Superseded to Discontinued)

$

$

Not available

17

Echo Y18327848220

COUPLING, HOSE
(Superseded to Discontinued)

$

$

Not available

18

Echo Y18327848210

GASKET
(Superseded to Discontinued)

$

$

Not available

19

Echo Y18342948250

BEND (NPT), DELIVERY
(Superseded to Discontinued)

$

$

Not available

20

Echo Y18327848260

GASKET
(Superseded to Discontinued)

$

$

Not available

21

Echo Y18332992820

HOOK
(Superseded to Discontinued)

$

$

Not available

22

Echo Y18332992810

WRENCH, SOCKET
(Superseded to Discontinued)

$

$

Not available

23

Echo Y18332908210

BOLT
(Superseded to Discontinued)

$

$

Not available

24

Echo Y18342908010

FRAME
(Superseded to Discontinued)

$

$

Not available

25

Echo Y18332908310

NUT - FLANGE
(Superseded to Discontinued)

$

$

Not available

26

Echo Y18327848350

BAND, HOSE
(Superseded to Discontinued)

$

$

Not available

27

Echo Y18342948360

STRAINER, DEBRIS
(Superseded to Discontinued)

$

$

Not available

Echo Y50106000000

SHIM 0.3
(Superseded to Discontinued)

$

$

Not available

Echo Y50106100000

SHIM 0.5
(Superseded to Discontinued)

$

$

Not available

Echo Y50106200000

SHIM 0.8
(Superseded to Discontinued)

$

$

Not available
