TPG 720 (41BJGA-C902) - TrimmerPlus Garden Cultivator Attachment General Assembly Parts Diagram

Garden Cultivator Attachment

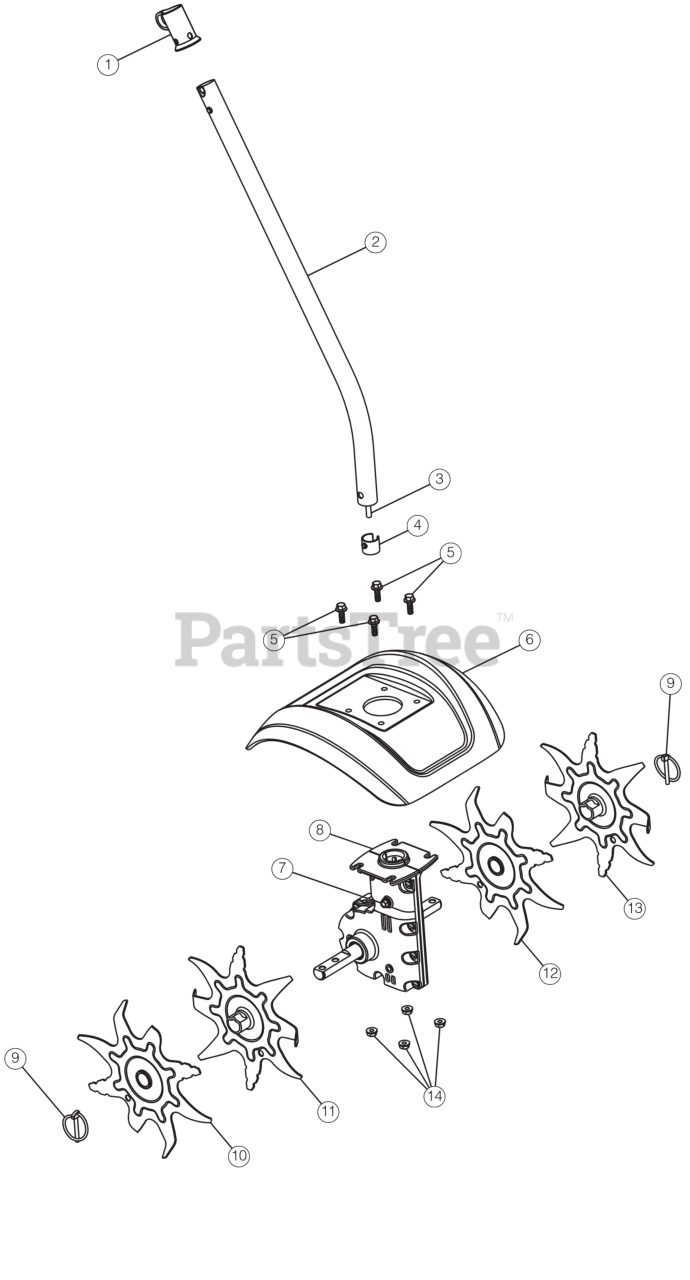

General Assembly Parts Diagram

  • Title

1

MTD 731-08926

HANGER

$2.99

$

In Stock, Qty 20+

0

2

MTD 753-08754

BOOM ASSEMBLY

Note: (Incl. 3)

$15.99

$

In Stock, only 2 left!

0

3

MTD 791-613300

SHAFT, DRIVE

$93.99

$

Usually ships in 3-6 days

0

4

MTD 753-04078

RETAINER SLEEVE

$11.99

$

Usually ships in 3-6 days

0

5

MTD 6109

HEX SCREW 1/4-20X.

$4.99

$

Usually ships in 3-6 days

0

6

MTD 731-08411A-2

TINE SHIELD

$12.99

$

In Stock, only 2 left!

0

7

MTD 710-0599

SCREW 1/4-20 X.500

$4.49

$

In Stock, Qty 20+

0

8

MTD 753-06063

GEARBOX ASSEMBLY CULT

$141.99

$

In Stock, only 1 left!

0

9

MTD 753-04070

LYNCH PIN .1875

$10.99

$

In Stock, Qty 16

0

10

MTD 753-05987

TINE ASSEMBLY (LH)I (RH)O

$42.99

$

In Stock, only 2 left!

0

11

MTD 753-05986

TINE ASSEMBLY (LH)O (RH)I

$42.99

$

In Stock, only 2 left!

0

12

MTD 753-05987

TINE ASSEMBLY (LH)I (RH)O

$42.99

$

In Stock, only 2 left!

0

13

MTD 753-05986

TINE ASSEMBLY (LH)O (RH)I

$42.99

$

In Stock, only 2 left!

0

14

MTD 912-3027

LOCK NUT 1/4

$4.49

$

In Stock, Qty 20+

0
