TR 1104 - Billy Goat Truck Loader Vacuum

Truck Loader Vacuum

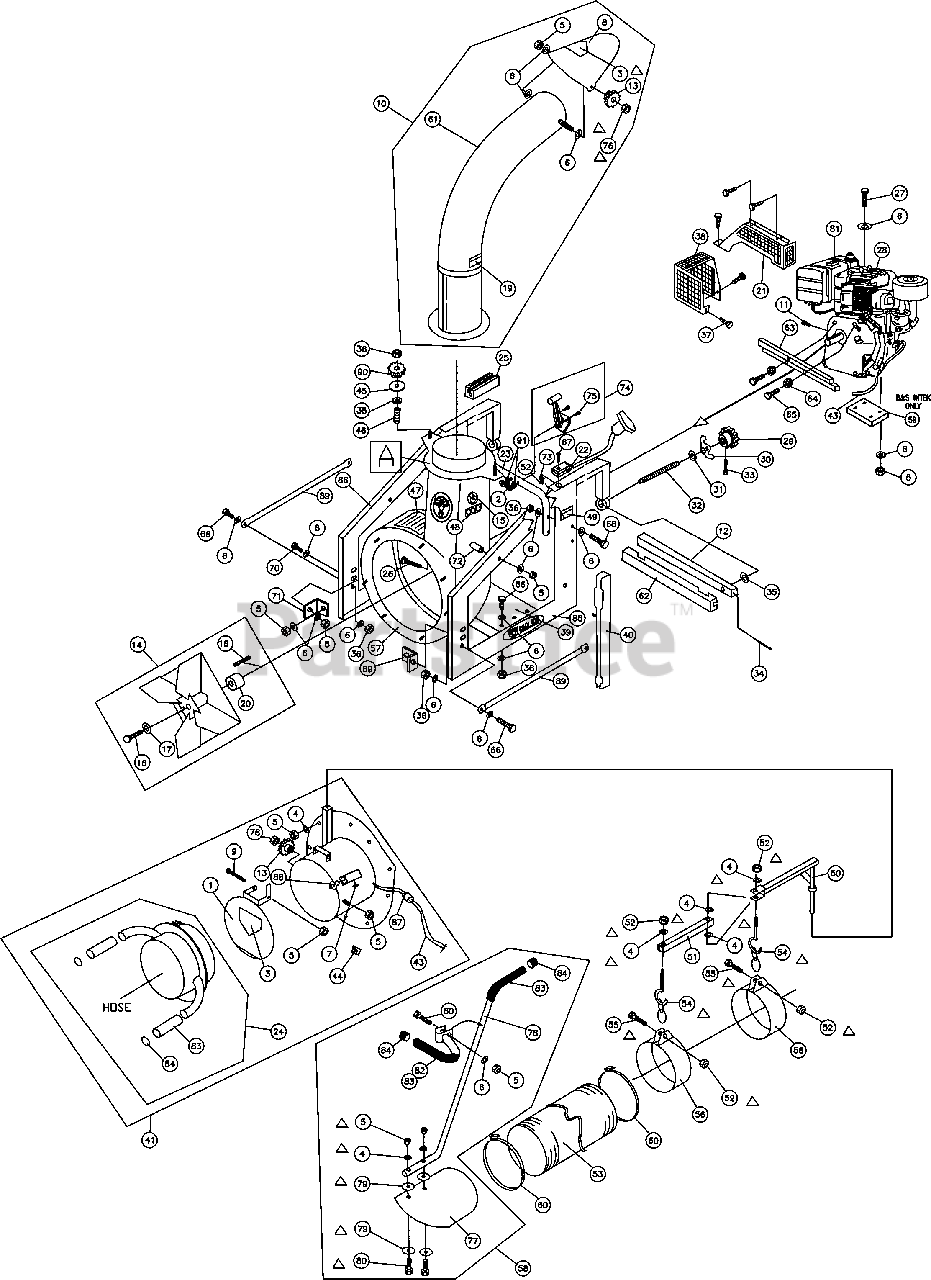

TR 1104 - Billy Goat Truck Loader Vacuum > Parts Diagrams (1) > Parts Assembly

  • Title
811174

1

FLAPPER 8" INTAKE W/ LABEL

Part# 811174

OEM Warranty Repair Part for Billy Goat

Not available

8164005

2

NUT LOCK 10-24

Part# 8164005

OEM Warranty Repair Part for Billy Goat

Usually leaves our warehouse in 1 business day

Your price: $0.58

400424

3

LABEL DANGER KEEP HANDS AND FEET AWAY

Part# 400424

OEM Warranty Repair Part for Billy Goat

Usually leaves our warehouse in 1 business day

Your price: $2.10

8172008

4

WASHER 5/16 SAE (11/32 ID x 11/16 OD x 1/16)

Part# 8172008

OEM Warranty Repair Part for Billy Goat

Usually leaves our warehouse in 1 business day

Your price: $0.47

8160002

5

NUT LOCK 5/16-18

Part# 8160002

OEM Warranty Repair Part for Billy Goat

Usually leaves our warehouse in 1 business day

Your price: $0.58

8171003

6

WASHER 5/16 FLAT CUT (3/8 I.D. x 7/8 O.D. x 1/16)

Part# 8171003

OEM Warranty Repair Part for Billy Goat

Usually leaves our warehouse in 1 business day

Your price: $0.47

811123

7

PLUG 3/4"

Part# 811123

OEM Warranty Repair Part for Billy Goat

Usually leaves our warehouse in 8 to 12 business days

Your price: $0.70

811111

8

DEFLECTOR EXHAUST 7"

Part# 811111

OEM Warranty Repair Part for Billy Goat

Not available

8024050

9

CARRIAGE BOLT 5/16-18 x 3 1/2

Part# 8024050

OEM Warranty Repair Part for Billy Goat

Usually leaves our warehouse in 8 to 12 business days

Your price: $0.58

811191

10

ELBOW ASSY TR/HTR

Part# 811191

OEM Warranty Repair Part for Billy Goat

Not available

8041026

11

SCREWCAP 5/16-18X.75

Part# 8041026

OEM Warranty Repair Part for Billy Goat

Usually leaves our warehouse in 1 business day

Your price: $0.58

810953

12

TUBE CLAMP

Part# 810953

OEM Warranty Repair Part for Billy Goat

Usually leaves our warehouse in 1 business day

Your price: $21.93

400339

13

KNOB

Part# 400339

OEM Warranty Repair Part for Billy Goat

Usually leaves our warehouse in 1 business day

Your price: $4.90

810629

14

IMPELLER ASSY (INCLUDES 16(1),17(1),18(1), 20(1))

Part# 810629

OEM Warranty Repair Part for Billy Goat

Usually leaves our warehouse in 1 business day

Your price: $165.78

890301

15

LABEL READ OWNER'S MANUAL

Part# 890301

OEM Warranty Repair Part for Billy Goat

Usually leaves our warehouse in 8 to 12 business days

Your price: $2.10

500188

16

SCREW CAP 7/16 - 20 X 2 GR 5 [60 Ft. Lbs. (81.4 N.m)]

Part# 500188

OEM Warranty Repair Part for Billy Goat

Usually leaves our warehouse in 1 business day

Your price: $1.75

850132

17

WASHER LOCK 7/16 TWISTED TOOTH

Part# 850132

OEM Warranty Repair Part for Billy Goat

Usually leaves our warehouse in 8 to 12 business days

Your price: $3.03

9201123

18

KEY SQ. 1/4 X 2 1/4

Part# 9201123

OEM Warranty Repair Part for Billy Goat

Usually leaves our warehouse in 8 to 12 business days

Your price: $1.52

810736

19

LABEL DANGER FLYING MATERIAL

Part# 810736

OEM Warranty Repair Part for Billy Goat

Usually leaves our warehouse in 8 to 12 business days

Your price: $2.10

830112

20

SPACER IMPELLER

Part# 830112

OEM Warranty Repair Part for Billy Goat

Usually leaves our warehouse in 1 business day

Your price: $18.92

N/A

21

GUARD MANIFOLD

Part# N/A

Not available

830533

22

GUIDE STARTER ROPE (HALF)

Part# 830533

OEM Warranty Repair Part for Billy Goat

Not available

811218

23

TUBE REAR FRAME

Part# 811218

OEM Warranty Repair Part for Billy Goat

Usually leaves our warehouse in 8 to 12 business days

Your price: $34.30

811170

24

COUPLER HOSE W/GRIP

Part# 811170

OEM Warranty Repair Part for Billy Goat

Not available

811120

25

PAD FRAME SHORT

Part# 811120

OEM Warranty Repair Part for Billy Goat

Usually leaves our warehouse in 8 to 12 business days

Your price: $7.70

8024054

26

CARRIAGE BOLT 5/16-18 x 4 1/2

Part# 8024054

OEM Warranty Repair Part for Billy Goat

Usually leaves our warehouse in 8 to 12 business days

Your price: $0.58

8041034

27

SCREW CAP 5/16-18 x 2 1/2

Part# 8041034

OEM Warranty Repair Part for Billy Goat

Usually leaves our warehouse in 8 to 12 business days

Your price: $0.58

811205

28

ENGINE BRIGGS 11 HP INTEK I/C

Part# 811205

OEM Warranty Repair Part for Billy Goat

Currently unavailable

850154

29

KNOB

Part# 850154

OEM Warranty Repair Part for Billy Goat

Usually leaves our warehouse in 1 business day

Your price: $4.90

800227

30

NUT LOCK W.A.

Part# 800227

OEM Warranty Repair Part for Billy Goat

Usually leaves our warehouse in 1 business day

Your price: $12.02

800109

31

WASHER 3/4, PLASTIC

Part# 800109

OEM Warranty Repair Part for Billy Goat

Usually leaves our warehouse in 8 to 12 business days

Your price: $0.70

810954

32

STUD 3/4 -10 x 5 1/2

Part# 810954

OEM Warranty Repair Part for Billy Goat

Usually leaves our warehouse in 8 to 12 business days

Your price: $13.65

8059143

33

SCREW MACHINE #10-24 x 2

Part# 8059143

OEM Warranty Repair Part for Billy Goat

Usually leaves our warehouse in 1 business day

Your price: $0.58

8197031

34

PIN COTTER 1/8 x 1"

Part# 8197031

OEM Warranty Repair Part for Billy Goat

Usually leaves our warehouse in 8 to 12 business days

Your price: $0.47

8172009

35

WASHER 3/8 SAE

Part# 8172009

OEM Warranty Repair Part for Billy Goat

Usually leaves our warehouse in 1 business day

Your price: $0.82

8160003

36

NUT LOCK 3/8-16

Part# 8160003

OEM Warranty Repair Part for Billy Goat

Usually leaves our warehouse in 1 business day

Your price: $0.78

N/A

37

SCREW SHEET METAL 1/4 AB x 3/4

Part# N/A

Not available

N/A

38

GUARD MUFFLER

Part# N/A

Not available

810907

39

BASE ENGINE

Part# 810907

OEM Warranty Repair Part for Billy Goat

Usually leaves our warehouse in 8 to 12 business days

Your price: $50.17

811122

40

PAD FRAME LONG

Part# 811122

OEM Warranty Repair Part for Billy Goat

Usually leaves our warehouse in 8 to 12 business days

Your price: $15.87

811173

41

PLATE FRONT 8" TR W/INTERLOCK (INCL. 1,2,3,5(2),7,13,43,44,49,59,83,84,87,88)

Part# 811173

OEM Warranty Repair Part for Billy Goat

Usually leaves our warehouse in 8 to 12 business days

Your price: $338.22

890442

43

CABLE ASSY SWITCH SV

Part# 890442

OEM Warranty Repair Part for Billy Goat

Usually leaves our warehouse in 8 to 12 business days

Your price: $10.85

850200

44

CLIP-CABLE LIFT

Part# 850200

OEM Warranty Repair Part for Billy Goat

Usually leaves our warehouse in 8 to 12 business days

Your price: $1.05

610308-P

45

WASHER-1.5 OD X 0.531 ID

Part# 610308-P

OEM Warranty Repair Part for Billy Goat

Usually leaves our warehouse in 1 business day

Your price: $1.52

400332

46

SPRING

Part# 400332

OEM Warranty Repair Part for Billy Goat

Usually leaves our warehouse in 1 business day

Your price: $0.93

830138

47

LABEL CAUTION

Part# 830138

OEM Warranty Repair Part for Billy Goat

Usually leaves our warehouse in 8 to 12 business days

Your price: $3.38

890254

48

LABEL EAR,EYE,BREATHING

Part# 890254

OEM Warranty Repair Part for Billy Goat

Usually leaves our warehouse in 8 to 12 business days

Your price: $2.10

811215

49

LABEL WARNING ENGINE OVERHEAT

Part# 811215

OEM Warranty Repair Part for Billy Goat

Usually leaves our warehouse in 8 to 12 business days

Your price: $2.22

810870

50

BOOM-PIVOT W.A.

Part# 810870

OEM Warranty Repair Part for Billy Goat

Usually leaves our warehouse in 1 business day

Your price: $96.02

810875

51

TUBE-SQUARE BOOM ARM

Part# 810875

OEM Warranty Repair Part for Billy Goat

Usually leaves our warehouse in 1 business day

Your price: $22.40

8160001

52

NUT LOCK 1/4-20

Part# 8160001

OEM Warranty Repair Part for Billy Goat

Usually leaves our warehouse in 1 business day

Your price: $0.58

810523

53

HOSE 8" x 12.5' TR

Part# 810523

OEM Warranty Repair Part for Billy Goat

Not available

810878

54

CHAIN-LOOP ASSY

Part# 810878

OEM Warranty Repair Part for Billy Goat

Usually leaves our warehouse in 1 business day

Your price: $9.68

8041009

55

SCREW CAP 1/4-20 x 1 3/4

Part# 8041009

OEM Warranty Repair Part for Billy Goat

Usually leaves our warehouse in 1 business day

Your price: $0.58

810880

56

BAND HOSE BOOM 8" TR

Part# 810880

OEM Warranty Repair Part for Billy Goat

Usually leaves our warehouse in 8 to 12 business days

Your price: $21.35

810976

57

HOUSING ASSY W/LABELS (INCLUDES 5(2), 13(2), 45(2), 46(2), 47, 48)

Part# 810976

OEM Warranty Repair Part for Billy Goat

Not available

811009

58

NOZZLE ASSY 8" TR (INCL. 4(2), 5(3), 6, 23, 77, 79(4), 80(2), 82, 83, 84

Part# 811009

OEM Warranty Repair Part for Billy Goat

Usually leaves our warehouse in 8 to 12 business days

Your price: $221.32

430355

59

SPACER ENGINE INTEK

Part# 430355

OEM Warranty Repair Part for Billy Goat

Usually leaves our warehouse in 8 to 12 business days

Your price: $21.23

810566

60

CLAMP HOSE 8" TR

Part# 810566

OEM Warranty Repair Part for Billy Goat

Usually leaves our warehouse in 1 business day

Your price: $12.48

811192

61

ELBOW EXHAUST WA

Part# 811192

OEM Warranty Repair Part for Billy Goat

Not available

811121

62

PAD FRAME CLAMP TUBE

Part# 811121

OEM Warranty Repair Part for Billy Goat

Not available

810965

63

SUPPORT PLATE ENGINE / SPACER ENG.

Part# 810965

OEM Warranty Repair Part for Billy Goat

Usually leaves our warehouse in 8 to 12 business days

Your price: $46.78

8181008

64

WASHER LOCK 5/16 EXT. TOOTH

Part# 8181008

OEM Warranty Repair Part for Billy Goat

Usually leaves our warehouse in 8 to 12 business days

Your price: $0.47

8041052

65

SCREW CAP 3/8 - 16 X 1 1/2 ZP

Part# 8041052

OEM Warranty Repair Part for Billy Goat

Usually leaves our warehouse in 8 to 12 business days

Your price: $0.82

8041050

66

SCREW CAP 3/8 - 16 x 1"

Part# 8041050

OEM Warranty Repair Part for Billy Goat

Usually leaves our warehouse in 1 business day

Your price: $0.65

8041008

67

SCREW CAP 1/4-20 X 1 1/2

Part# 8041008

OEM Warranty Repair Part for Billy Goat

Usually leaves our warehouse in 1 business day

Your price: $0.58

8041053

68

SCREW CAP 3/8 - 16 X 1 3/4 ZP

Part# 8041053

OEM Warranty Repair Part for Billy Goat

Usually leaves our warehouse in 8 to 12 business days

Your price: $0.82

811096

69

ANGLE BRKT R.H.

Part# 811096

OEM Warranty Repair Part for Billy Goat

Usually leaves our warehouse in 8 to 12 business days

Your price: $7.35

8041028

70

SCREW CAP 5/16-18 x 1"

Part# 8041028

OEM Warranty Repair Part for Billy Goat

Usually leaves our warehouse in 8 to 12 business days

Your price: $0.58

810969

71

ANGLE BRKT L.H.

Part# 810969

OEM Warranty Repair Part for Billy Goat

Currently unavailable

811098

72

SPACER

Part# 811098

OEM Warranty Repair Part for Billy Goat

Usually leaves our warehouse in 8 to 12 business days

Your price: $5.13

8171002

73

WASHER FLAT CUT 1/4

Part# 8171002

OEM Warranty Repair Part for Billy Goat

Usually leaves our warehouse in 1 business day

Your price: $0.47

811222

74

CONTROL THROTTLE ASSY

Part# 811222

OEM Warranty Repair Part for Billy Goat

Not available

8059141

75

SCREW MACHINE 10-24 x 1-1/2"

Part# 8059141

OEM Warranty Repair Part for Billy Goat

Usually leaves our warehouse in 8 to 12 business days

Your price: $0.58

8161041

76

NUT LOCK 5/16-18 THIN HT.

Part# 8161041

OEM Warranty Repair Part for Billy Goat

Usually leaves our warehouse in 1 business day

Your price: $0.58

811007

77

NOZZLE FORMED STEEL 8"

Part# 811007

OEM Warranty Repair Part for Billy Goat

Usually leaves our warehouse in 8 to 12 business days

Your price: $67.11

811020

78

HANDLE NOZZLE W / GRIP

Part# 811020

OEM Warranty Repair Part for Billy Goat

Not available

8172020

79

WASHER FENDER 5/16

Part# 8172020

OEM Warranty Repair Part for Billy Goat

Usually leaves our warehouse in 1 business day

Your price: $0.47

8041030

80

SCREW CAP 5 /16 - 18 X 1 1/2

Part# 8041030

OEM Warranty Repair Part for Billy Goat

Usually leaves our warehouse in 1 business day

Your price: $0.83

400268

81

LABEL DO NOT FILL WHEN ENGINE IS HOT

Part# 400268

OEM Warranty Repair Part for Billy Goat

Not available

811019

82

HANDLE LOOP NOZZLE

Part# 811019

OEM Warranty Repair Part for Billy Goat

Not available

500267

83

GRIP HANDLE

Part# 500267

OEM Warranty Repair Part for Billy Goat

Usually leaves our warehouse in 1 business day

Your price: $3.85

890132

84

PLUG CAP

Part# 890132

OEM Warranty Repair Part for Billy Goat

Usually leaves our warehouse in 8 to 12 business days

Your price: $0.58

811100

85

FRAME SIDE RIGHT WA TR/HTR

Part# 811100

OEM Warranty Repair Part for Billy Goat

Not available

811101

86

FRAME SIDE LEFT WA TR/HTR

Part# 811101

OEM Warranty Repair Part for Billy Goat

Not available

500282

87

STRAIN RELIEF

Part# 500282

OEM Warranty Repair Part for Billy Goat

Usually leaves our warehouse in 1 business day

Your price: $1.63

890440

88

PLUNGER SWITCH

Part# 890440

OEM Warranty Repair Part for Billy Goat

Usually leaves our warehouse in 8 to 12 business days

Your price: $9.92

811139

89

TUBE HANDLE LIFT

Part# 811139

OEM Warranty Repair Part for Billy Goat

Usually leaves our warehouse in 8 to 12 business days

Your price: $15.28

811230

90

KNOB 3/8" SOLID HUB

Part# 811230

OEM Warranty Repair Part for Billy Goat

Usually leaves our warehouse in 1 business day

Your price: $5.02

8024216

91

PART NOT APPLICABLE ON THIS MODEL

Part# 8024216

OEM Warranty Repair Part for Billy Goat

Usually leaves our warehouse in 8 to 12 business days

Your price: $4.78
