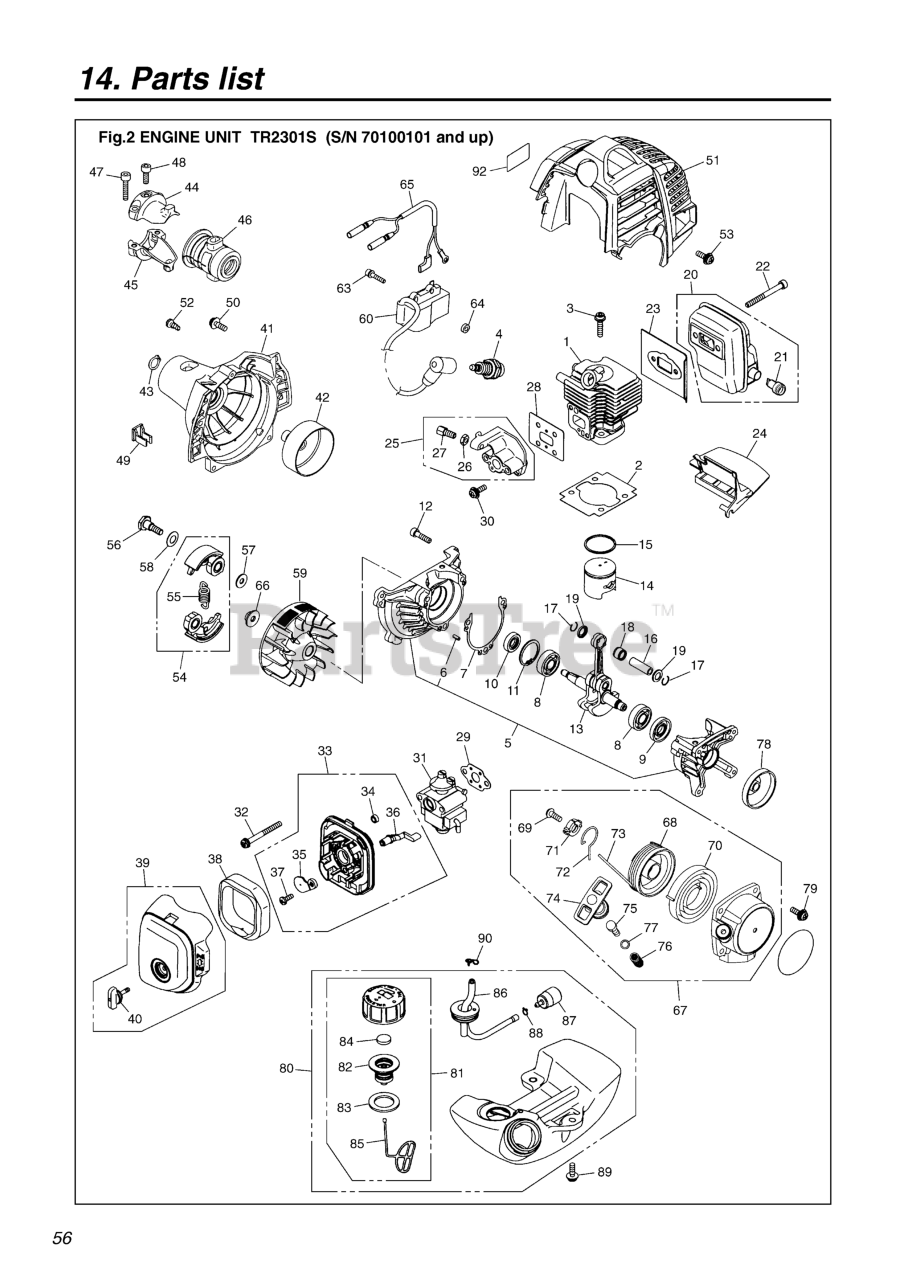

TR 2301 S - RedMax String Trimmer (SN: 70100101 & Above) (2008-03) 003 - ENGINE UNIT Parts Diagram

String Trimmer

003 - ENGINE UNIT Parts Diagram

  • Title

1

RedMax 848E3Y12A0

CYLINDER
(Superseded to 521599301)

$34.99

$

Usually ships in 3-10 days

0

2

RedMax T160012210

GASKET, BASE
(Superseded to 512332401)

$

$

Not available

3

RedMax 185012130

BOLT, M5 X 22
(Superseded to 516537401)

$3.99

$

Usually ships in 3-10 days

0

4

RedMax 369990332

PLUG (BPMR7A)(RPLS 5933-73110)
(Superseded to 514441301)

$18.99

$

Usually ships in 3-10 days

0

5

RedMax T160021100

CRANKCASE-C
(Superseded to 512333201)

$18.99

$

Usually ships in 3-10 days

0

6

RedMax 262921130

PIN
(Superseded to 516762801)

$3.99

$

Usually ships in 3-10 days

0

7

RedMax T160021140

GASKET, CASE
(Superseded to 512333501)

$3.99

$

Usually ships in 3-10 days

0

8

RedMax T160021240

BEARING
(Superseded to 521756801)

$17.99

$

In Stock, only 2 left!

0

9

RedMax T160021210

SEAL
(Superseded to 521756601)

$

$

Not available

10

RedMax T160021220

SEAL
(Superseded to 521756701)

$6.49

$

In Stock, only 1 left!

0

11

RedMax 0406502612

RING, SNAP, M26 X 1.2
(Superseded to 516125501)

$4.99

$

In Stock, only 4 left!

0

12

RedMax 0125230520

BOLT, M5 X 20
(Superseded to 516070801)

$6.49

$

In Stock, Qty 15

0

13

RedMax T160042003

CRANKSHAFT-C
(Superseded to 521757801)

$

$

Not available

14

RedMax 116041110

PISTON
(Superseded to 513198701)

$34.99

$

Usually ships in 3-10 days

0

15

RedMax 110041210

RING, PISTON (RPLS 1850-41210)
(Superseded to 510917501)

$6.49

$

In Stock, Qty 18

0

16

RedMax 110141310

PIN, PISTON 5x8x26
(Superseded to 513179501)

$6.49

$

Usually ships in 3-10 days

0

17

RedMax 126041320

RING, SNAP (RPLS 1101-41320)
(Superseded to 505045201)

$4.99

$

In Stock, Qty 20+

0

18

RedMax 550041410

BEARING (RPLS 1140-41330)
(Superseded to 505040901)

$9.99

$

In Stock, only 2 left!

0

19

RedMax 110141340

WASHER
(Superseded to 516181201)

$

$

Not available

20

RedMax 848E4B1510

MUFFLER-A
(Superseded to 511268301)

$26.99

$

Usually ships in 3-10 days

0

21

RedMax 481015140

ARRESTER
(Superseded to 506615601)

$10.99

$

In Stock, only 2 left!

0

22

RedMax 0125230550

BOLT, M5 x 50
(Superseded to 516071401)

$3.99

$

Usually ships in 3-10 days

0

23

RedMax T160015210

GASKET
(Superseded to 512332901)

$8.99

$

In Stock, only 2 left!

0

24

RedMax T160015221

PLATE
(Superseded to 521756301)

$6.49

$

Usually ships in 3-10 days

0

25

RedMax T160013100

INSULATOR-C
(Superseded to 570799001)

$36.99

$

Usually ships in 3-10 days

0

26

RedMax 028210604

NUT, CABLE ADJUSTER
(Superseded to 510487401)

$4.99

$

In Stock, only 4 left!

0

27

RedMax T160013170

SCREW (RPLS 1918-81170)
(Superseded to 521756001)

$7.49

$

Usually ships in 3-10 days

0

28

RedMax 550013121

GASKET (RPLS -13120)
(Superseded to 515409001)

$7.49

$

Usually ships in 3-10 days

0

29

RedMax 550013131

GASKET (REPLACES -13130)
(Superseded to 515409901)

$4.99

$

In Stock, only 2 left!

0

30

RedMax 550085510

SCREW
(Superseded to 515418701)

$6.49

$

In Stock, only 3 left!

0

31

RedMax 848E488100

CARBURETOR-A
(Superseded to 521600901)

$120.99

$

In Stock, only 1 left!

0

32

RedMax 026390550

SCREW (RPLS 0263-30550)
(Superseded to 516113801)

$3.99

$

In Stock, only 1 left!

0

33

RedMax T160082100

BODY ASSY.
(Superseded to 512339801)

$14.99

$

Usually ships in 3-10 days

0

34

RedMax 197082190

SLEEVE
(Superseded to 516626801)

$4.99

$

Usually ships in 3-10 days

0

35

RedMax T160082130

PLATE, CHOKE
(Superseded to 521760401)

$

$

Not available

36

RedMax T160082140

LEVER
(Superseded to 521760501)

$4.99

$

In Stock, Qty 12

0

37

RedMax 263033610

SCREW (REPLACES 50030272)
(Superseded to 516771801)

$3.99

$

In Stock, only 4 left!

0

38

RedMax 550082171

ELEMENT
(Superseded to 515417301)

$4.99

$

In Stock, Qty 20+

0

39

RedMax T160082200

COVER-A
(Superseded to 521760601)

$

$

Not available

40

RedMax 550082221

KNOB (RPLS -82220)
(Superseded to 504115101)

$4.99

$

In Stock, Qty 9

0

41

RedMax 848E3L53A0

HOUSING
(Superseded to 511263001)

$36.99

$

In Stock, only 1 left!

0

42

RedMax 848F3051A1

DRUM (REPLACES 4810-31122)
(Superseded to 521609801)

$47.99

$

In Stock, Qty 5

0

43

RedMax 0406401210

RING, SNAP (RPLS 3130-13270)
(Superseded to 516124101)

$4.99

$

In Stock, only 1 left!

0

44

RedMax T170031212

BRACKET (A) (RPLS -31211)
(Superseded to 521768201)

$8.99

$

Usually ships in 3-10 days

0

45

RedMax T170031221

BRACKET (B)
(Superseded to 521768301)

$9.99

$

In Stock, only 1 left!

0

46

RedMax T170031232

CUSHION (RPLS -31231)
(Superseded to 512360501)

$24.99

$

Usually ships in 3-10 days

0

47

RedMax 0125230522

BOLT, M5 X 22
(Superseded to 516070901)

$3.49

$

Usually ships in 3-10 days

0

48

RedMax 0125230510

BOLT, M5 X 10
(Superseded to 505169901)

$4.99

$

In Stock, only 3 left!

0

49

RedMax T160072210

CLAMP
(Superseded to 521758801)

$

$

Not available

50

RedMax 550085510

SCREW
(Superseded to 515418701)

$6.49

$

In Stock, only 3 left!

0

51

RedMax 848E3431A1

COVER, ENGINE
(Superseded to 521599101)

$15.99

$

Usually ships in 3-10 days

0

52

RedMax 026390510

SCREW, M5 X 10
(Superseded to 516112901)

$3.99

$

Usually ships in 3-10 days

0

53

RedMax 550085510

SCREW
(Superseded to 515418701)

$6.49

$

In Stock, only 3 left!

0

54

RedMax 848EA05110

SHOE COMP.
(Superseded to 506629401)

$18.99

$

In Stock, only 3 left!

0

55

RedMax T170051220

SPRING
(Superseded to 506685801)

$4.99

$

In Stock, Qty 11

0

56

RedMax 114051250

BOLT
(Superseded to 513189601)

$4.99

$

In Stock, Qty 10

0

57

RedMax 114051230

WASHER, FLAT (USE 182303)
(Superseded to 516207701)

$4.99

$

In Stock, only 2 left!

0

58

RedMax 197051241

182304
(Superseded to 574061801)

$

$

Not available

59

RedMax 848E4871A0

ROTOR
(Superseded to 521600801)

$42.99

$

In Stock, only 1 left!

0

60

RedMax 848E487121

COIL
(Superseded to 521600701)

$

$

Not available

63

RedMax 335014150

BOLT, M4 x 20
(Superseded to 521048101)

$

$

Not available

64

RedMax 126071261

SPACER (RPLS -71260)
(Superseded to 516258101)

$4.99

$

In Stock, only 2 left!

0

65

RedMax T160073200

CORD COMP.
(Superseded to 521758901)

$8.99

$

Usually ships in 3-10 days

0

66

RedMax 275032620

NUT, M6
(Superseded to 513667501)

$4.99

$

Usually ships in 3-10 days

0

67

RedMax T160075100

RECOIL-A
(Superseded to 512338301)

$66.99

$

In Stock, only 1 left!

0

68

RedMax T160075120

REEL
(Superseded to 521759201)

$9.99

$

Usually ships in 3-10 days

0

69

RedMax 450075150

SCREW
(Superseded to 515367101)

$4.99

$

In Stock, only 1 left!

0

70

RedMax T160075130

SPRING
(Superseded to 521759301)

$18.99

$

In Stock, only 2 left!

0

71

RedMax 450075180

COLLAR
(Superseded to 504114601)

$7.49

$

In Stock, Qty 12

0

72

RedMax T160075190

ARM
(Superseded to 521759501)

$3.99

$

Usually ships in 3-10 days

0

73

RedMax T160075160

ROPE
(Superseded to 521759401)

$

$

Not available

74

RedMax T160075310

KNOB
(Superseded to 521759701)

$

$

Not available

75

RedMax T160075321

COLLAR
(Superseded to 521759801)

$1.49

$

Usually ships in 3-10 days

0

76

RedMax T160075330

SPRING
(Superseded to 521759901)

$3.49

$

Usually ships in 3-10 days

0

77

RedMax 482075210

WASHER
(Superseded to 521347101)

$

$

Not available

78

RedMax 450075210

PULLEY
(Superseded to 504114401)

$10.99

$

In Stock, only 4 left!

0

79

RedMax 550085510

SCREW
(Superseded to 515418701)

$6.49

$

In Stock, only 3 left!

0

80

RedMax T160085001

TANK-A
(Superseded to 575343801)

$

$

Not available

81

RedMax 560785201

CAP ASSY (RPLS. 5601-85201)
(Superseded to 515452901)

$18.99

$

Usually ships in 3-10 days

0

82

RedMax 560185300

HOLDER - A (RPLS 5601-85230)
(Superseded to 521377201)

$11.99

$

Usually ships in 3-10 days

0

83

RedMax 550085220

PACKING
(Superseded to 515418301)

$3.99

$

In Stock, only 1 left!

0

84

RedMax 560185260

FILTER
(Superseded to 506746801)

$6.49

$

In Stock, only 2 left!

0

85

RedMax 482085260

STOPPER
(Superseded to 506745801)

$4.99

$

In Stock, Qty 5

0

86

RedMax 481085300

PIPE COMPLETE
(Superseded to 579138306)

$42.99

$

In Stock, Qty 5

0

87

RedMax 550085400

FILTER (RPLS 1850-85300)
(Superseded to 515418501)

$9.99

$

In Stock, Qty 6

0

88

RedMax 126085460

CLIP (REPLACES 2841-31280)
(Superseded to 506707001)

$4.99

$

In Stock, Qty 13

0

89

RedMax 550085510

SCREW
(Superseded to 515418701)

$6.49

$

In Stock, only 3 left!

0

90

RedMax 195086120

CLIP
(Superseded to 506741501)

$4.99

$

In Stock, only 2 left!

0

NI

LABEL, RECOIL

$

$

Not available

92

RedMax T171631120

LABEL
(Superseded to 512369101)

$

$

Not available
