TR 262 - Husqvarna Rear-Tine Tiller (2019-09) ROTARY TILLER BOX Parts Diagram

Rear-Tine Tiller

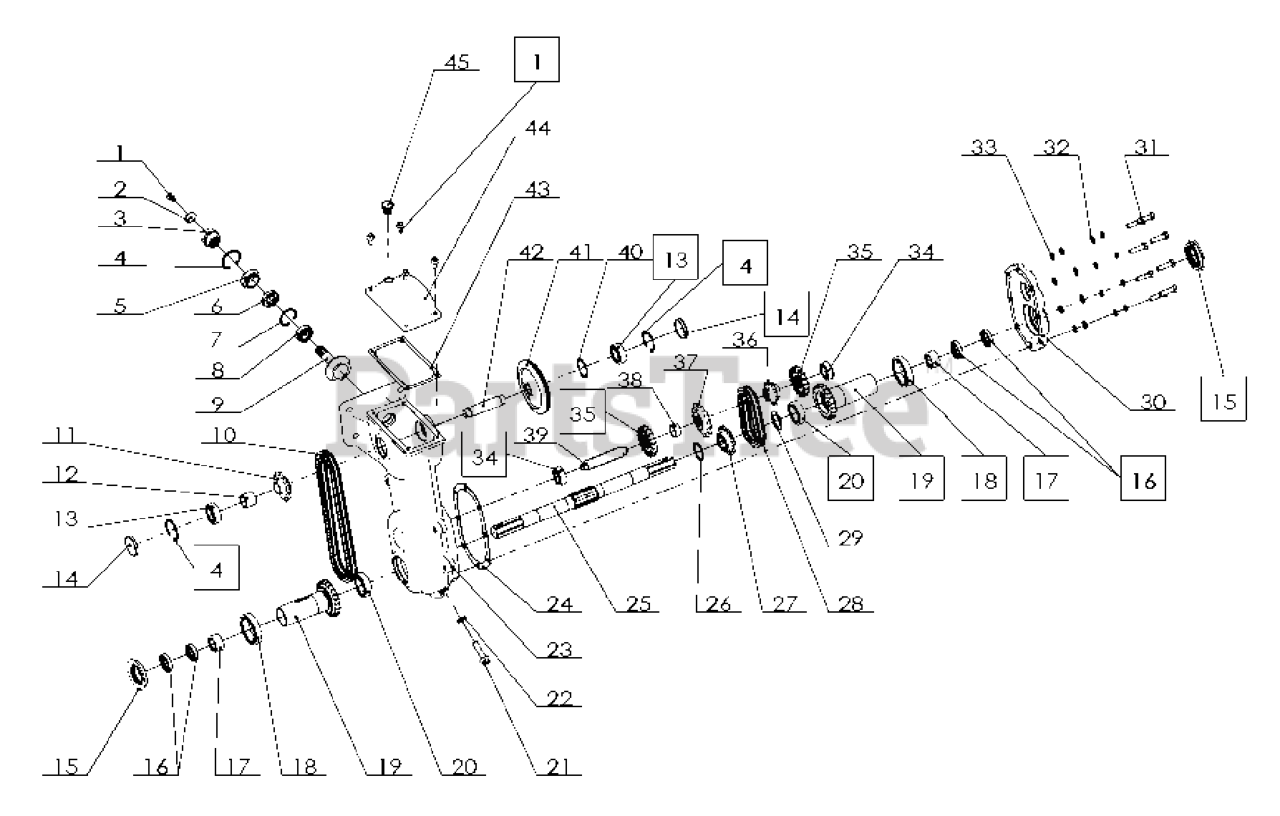

ROTARY TILLER BOX Parts Diagram

  • Title

13

Husqvarna 590831601

NEEDS DESCRIPTION

Note: Deep groove ball bearing 6203

$

$

Currently unavailable

25

Husqvarna 598684365

NEEDS DESCRIPTION

Note: Tilling shaft

$

$

Currently unavailable

30

Husqvarna 598684256

NEEDS DESCRIPTION

Note: Tilling box end cover

$

$

Currently unavailable

40

Husqvarna 598684387

NEEDS DESCRIPTION

Note: Washer 32×39.5×0.2

$

$

Currently unavailable

15

Husqvarna 598684357

NEEDS DESCRIPTION

Note: Oil seal 40×55×10

$

$

Currently unavailable

43

Husqvarna 598684280

NEEDS DESCRIPTION

Note: Combination gasket

$

$

Currently unavailable

12

Husqvarna 598684372

NEEDS DESCRIPTION

Note: Sleeve 20.5×26×21.5

$

$

Currently unavailable

42

Husqvarna 598684368

NEEDS DESCRIPTION

Note: Transmission shaft

$

$

Currently unavailable

3

Husqvarna 598684269

IMPELLERS

Note: Clutch pusher dog

$1316.99

$

Usually ships in 3-10 days

0

37

Husqvarna 598684378

NEEDS DESCRIPTION

Note: Driven sprocket

$

$

Currently unavailable

20

Husqvarna 587941801

NEEDS DESCRIPTION

Note: Deep groove ball bearing 6005

$

$

Currently unavailable

38

Husqvarna 598684232

NEEDS DESCRIPTION

Note: Spacer bush 20×25×12

$

$

Currently unavailable

22

Husqvarna 598684385

NEEDS DESCRIPTION

Note: Ø10 Washer

$

$

Currently unavailable

2

Husqvarna 598684388

NEEDS DESCRIPTION

Note: Big washer 6

$

$

Currently unavailable

34

Husqvarna 587940201

NEEDS DESCRIPTION

Note: Bearing 6202

$

$

Currently unavailable

29

Husqvarna 598684401

NEEDS DESCRIPTION

Note: Washer 25×38×2

$

$

Currently unavailable

6

Husqvarna 598684354

NEEDS DESCRIPTION

Note: Oil seal 17×35×7

$

$

Currently unavailable

1

Husqvarna 598684217

NEEDS DESCRIPTION

Note: Bolt M6×10

$

$

Currently unavailable

19

Husqvarna 598684364

NEEDS DESCRIPTION

Note: Tilling output half shaft

$

$

Currently unavailable

5

Husqvarna 598684186

NEEDS DESCRIPTION

Note: Deep groove ball bearing 6203-2RS

$

$

Currently unavailable

8

Husqvarna 598684183

NEEDS DESCRIPTION

Note: Deep groove ball bearing 6003

$

$

Currently unavailable

36

Husqvarna 598684379

NEEDS DESCRIPTION

Note: Tilling driving sprocket

$

$

Currently unavailable

31

Husqvarna 598684206

NEEDS DESCRIPTION

Note: Bolt M10×30

$

$

Currently unavailable

10

Husqvarna 598684240

NEEDS DESCRIPTION

Note: Chain (520HF3-1-38)

$

$

Currently unavailable

17

Husqvarna 598684193

NEEDS DESCRIPTION

Note: Needle bearing HK25×32×16

$

$

Currently unavailable

4

Husqvarna 598684243

NEEDS DESCRIPTION

Note: Circlip 40

$

$

Currently unavailable

28

Husqvarna 598684241

NEEDS DESCRIPTION

Note: Chain (520HF3-1-38)

$

$

Currently unavailable

39

Husqvarna 598684369

NEEDS DESCRIPTION

Note: Tilling transmission shaft

$

$

Currently unavailable

27

Husqvarna 598684380

NEEDS DESCRIPTION

Note: Tilling output sprocket

$

$

Currently unavailable

16

Husqvarna 598684356

NEEDS DESCRIPTION

Note: Oil seal 25×35×7

$

$

Currently unavailable

14

Husqvarna 598684349

NEEDS DESCRIPTION

Note: Oil plug 40x6

$

$

Currently unavailable

41

Husqvarna 598684292

NEEDS DESCRIPTION

Note: Driven bevel gear

$

$

Currently unavailable

26

Husqvarna 598684245

NEEDS DESCRIPTION

Note: Circlip 32

$

$

Currently unavailable

35

Husqvarna 598684289

NEEDS DESCRIPTION

Note: Tilling driving gear

$

$

Currently unavailable

45

Husqvarna 598684347

NEEDS DESCRIPTION

Note: Oil fill rubber plug

$

$

Currently unavailable

7

Husqvarna 587979601

NEEDS DESCRIPTION

Note: Circlip 35

$

$

Currently unavailable

33

Husqvarna 598684394

NEEDS DESCRIPTION

Note: Flat washer 8

$

$

Currently unavailable

23

Husqvarna 598684228

NEEDS DESCRIPTION

Note: Tilling box

$

$

Currently unavailable

32

Husqvarna 588009201

NEEDS DESCRIPTION

Note: Spring washer 8

$

$

Currently unavailable

24

Husqvarna 598684277

NEEDS DESCRIPTION

Note: Tilling box gasket

$

$

Currently unavailable

9

Husqvarna 598684290

NEEDS DESCRIPTION

Note: Driving bevel gear

$

$

Currently unavailable

44

Husqvarna 598684255

NEEDS DESCRIPTION

Note: Tilling box cover

$

$

Currently unavailable

11

Husqvarna 598684288

NEEDS DESCRIPTION

Note: Driving chain gear 11

$

$

Currently unavailable

21

Husqvarna 587980101

NEEDS DESCRIPTION

Note: Drain bolt M10×12-1.25

$

$

Currently unavailable

18

Husqvarna 598684188

NEEDS DESCRIPTION

Note: Deep groove ball bearing 61908

$

$

Currently unavailable
