TR-5000 - Exmark Walk-Behind Turf Rake (SN: 090000 - 101999) (1994)

Walk-Behind Turf Rake

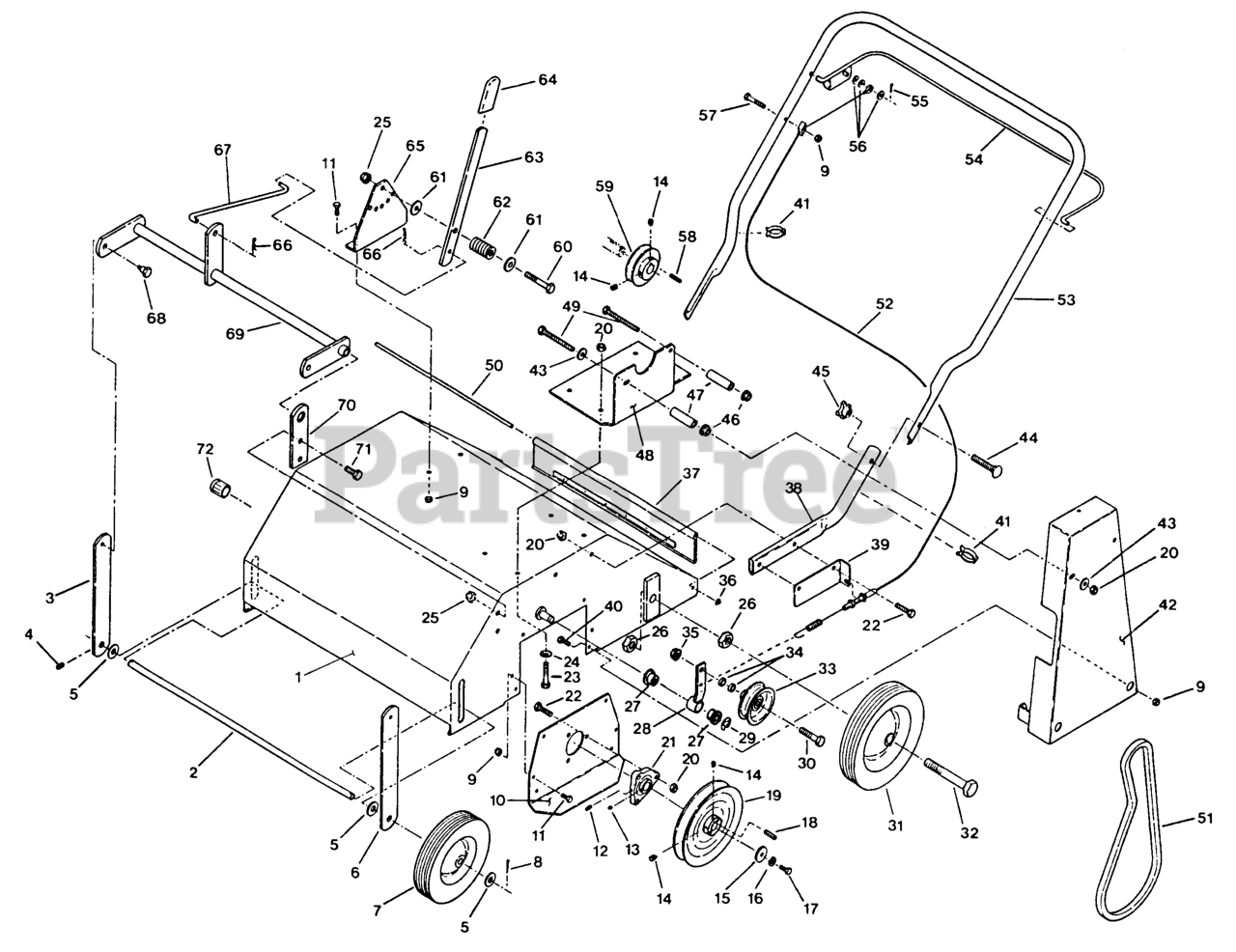

TR-5000 - Exmark Walk-Behind Turf Rake (SN: 090000 - 101999) (1994) > Parts Diagrams (7) > Main Deck

  • Title
1-502032

1

Rake Body W/ Decals

Part# 1-502032

OEM Warranty Repair Part for Exmark

Not available

1-503107

2

DISCONTINUED (EXMARK)

Part# 1-503107

OEM Warranty Repair Part for Exmark

Not available

1-503071

3

DISCONTINUED (EXMARK)

Part# 1-503071

OEM Warranty Repair Part for Exmark

Not available

1-803282

4

DISCONTINUED (EXMARK)

Part# 1-803282

OEM Warranty Repair Part for Exmark

Not available

1-805264

5

3256-6

Part# 1-805264 (Superseded to 3256-6)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.50

1-503066

6

1-503071

Part# 1-503066 (Superseded to 1-503071)

OEM Warranty Repair Part for Exmark

Not available

1-503012

7

ASM,WHEEL & TIRE

Part# 1-503012

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $21.92

1-806763

8

3272-12

Part# 1-806763 (Superseded to 3272-12)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.11

1-804255

9

3296-42

Part# 1-804255 (Superseded to 3296-42)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.36

1-503162-01

10

DISCONTINUED (EXMARK)

Part# 1-503162-01

OEM Warranty Repair Part for Exmark

Not available

1-800251

11

321-3

Part# 1-800251 (Superseded to 321-3)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.01

1-811004

12

DISCONTINUED

Part# 1-811004

OEM Warranty Repair Part for Exmark

Not available

1-803300

13

3245-35

Part# 1-803300 (Superseded to 3245-35)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.67

1-803310

14

SCREW-SET

Part# 1-803310

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.26

1-503033

15

WASHER-RETAINER, PULLEY

Part# 1-503033

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $2.97

1-805004

16

WASHER-LOCK

Part# 1-805004

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.59

1-800504

17

DISCONTINUED

Part# 1-800504

OEM Warranty Repair Part for Exmark

Not available

1-807255

18

5-1077

Part# 1-807255 (Superseded to 5-1077)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $4.66

1-503017

19

DISCONTINUED

Part# 1-503017

OEM Warranty Repair Part for Exmark

Not available

1-804256

20

3296-29

Part# 1-804256 (Superseded to 3296-29)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.87

1-503023

21

DISCONTINUED (EXMARK)

Part# 1-503023

OEM Warranty Repair Part for Exmark

Not available

1-800274

22

322-6

Part# 1-800274 (Superseded to 322-6)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.19

1-800276

23

322-9

Part# 1-800276 (Superseded to 322-9)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.46

1-303334

24

WASHER-SPRING

Part# 1-303334

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.33

1-804257

25

3296-39

Part# 1-804257 (Superseded to 3296-39)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.11

1-804756

26

DISCONTINUED (EXMARK)

Part# 1-804756

OEM Warranty Repair Part for Exmark

Not available

1-513140

27

BEARING-CONTROL

Part# 1-513140

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.70

1-502027

28

DISCONTINUED (EXMARK)

Part# 1-502027

OEM Warranty Repair Part for Exmark

Not available

1-808501

29

32120-47

Part# 1-808501 (Superseded to 32120-47)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.52

1-800295

30

323-9

Part# 1-800295 (Superseded to 323-9)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.94

1-503006

31

ASM,WHEEL & TIRE

Part# 1-503006

OEM Warranty Repair Part for Exmark

Not available

1-800856

32

DISCONTINUED (EXMARK)

Part# 1-800856

OEM Warranty Repair Part for Exmark

Not available

1-213133

33

DISCONTINUED (EXMARK)

Part# 1-213133

OEM Warranty Repair Part for Exmark

Not available

1-213060

34

DISCONTINUED (EXMARK)

Part# 1-213060

OEM Warranty Repair Part for Exmark

Not available

1-809007

35

3290-357

Part# 1-809007 (Superseded to 3290-357)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.75

1-803043

36

DISCONTINUED (EXMARK)

Part# 1-803043

OEM Warranty Repair Part for Exmark

Not available

1-502016

37

DISCONTINUED (EXMARK)

Part# 1-502016

OEM Warranty Repair Part for Exmark

Not available

1-503060-03

38

DISCONTINUED (EXMARK)

Part# 1-503060-03

OEM Warranty Repair Part for Exmark

Not available

1-503155-03

39

DISCONTINUED (EXMARK)

Part# 1-503155-03

OEM Warranty Repair Part for Exmark

Not available

1-800252

40

321-4

Part# 1-800252 (Superseded to 321-4)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.81

1-503005

41

DISCONTINUED (EXMARK)

Part# 1-503005

OEM Warranty Repair Part for Exmark

Not available

1-502024-03

42

DISCONTINUED (EXMARK)

Part# 1-502024-03

OEM Warranty Repair Part for Exmark

Not available

1-805258

43

3256-3

Part# 1-805258 (Superseded to 3256-3)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.35

1-807500

44

DISCONTINUED (EXMARK)

Part# 1-807500

OEM Warranty Repair Part for Exmark

Not available

1-213126

45

DISCONTINUED (EXMARK)

Part# 1-213126

OEM Warranty Repair Part for Exmark

Not available

1-809001

46

32128-20

Part# 1-809001 (Superseded to 32128-20)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.69

1-503149

47

DISCONTINUED (EXMARK)

Part# 1-503149

OEM Warranty Repair Part for Exmark

Not available

1-503151-03

48

DISCONTINUED (EXMARK)

Part# 1-503151-03

OEM Warranty Repair Part for Exmark

Not available

1-800021

49

BOLT,TAP HH

Part# 1-800021

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $2.32

1-503102

50

DISCONTINUED

Part# 1-503102

OEM Warranty Repair Part for Exmark

Not available

1-503159

51

DISCONTINUED (EXMARK)

Part# 1-503159

OEM Warranty Repair Part for Exmark

Not available

1-503160

52

DISCONTINUED (EXMARK)

Part# 1-503160

OEM Warranty Repair Part for Exmark

Not available

1-502033

53

DISCONTINUED (EXMARK)

Part# 1-502033

OEM Warranty Repair Part for Exmark

Not available

1-502029

54

DISCONTINUED (EXMARK)

Part# 1-502029

OEM Warranty Repair Part for Exmark

Not available

1-806753

55

3272-5

Part# 1-806753 (Superseded to 3272-5)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.02

1-805255

56

3256-22

Part# 1-805255 (Superseded to 3256-22)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.16

1-800256

57

321-9

Part# 1-800256 (Superseded to 321-9)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.65

1-807265

58

DISCONTINUED (EXMARK)

Part# 1-807265

OEM Warranty Repair Part for Exmark

Not available

1-503158

59

DISCONTINUED (EXMARK)

Part# 1-503158

OEM Warranty Repair Part for Exmark

Not available

1-800296

60

323-10

Part# 1-800296 (Superseded to 323-10)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.64

1-805260

61

3256-4

Part# 1-805260 (Superseded to 3256-4)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.23

1-303160

62

SPRING-COMPRESSION

Part# 1-303160

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.70

1-503074

63

DISCONTINUED (EXMARK)

Part# 1-503074

OEM Warranty Repair Part for Exmark

Not available

1-303020

64

GRIP-LEVER

Part# 1-303020

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.48

1-503075

65

DISCONTINUED

Part# 1-503075

OEM Warranty Repair Part for Exmark

Not available

1-806003

66

PIN-COTTER

Part# 1-806003

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.26

1-503073

67

DISCONTINUED (EXMARK)

Part# 1-503073

OEM Warranty Repair Part for Exmark

Not available

1-503109

68

DISCONTINUED (EXMARK)

Part# 1-503109

OEM Warranty Repair Part for Exmark

Not available

1-502013

69

DISCONTINUED (EXMARK)

Part# 1-502013

OEM Warranty Repair Part for Exmark

Not available

1-503103

70

DISCONTINUED

Part# 1-503103

OEM Warranty Repair Part for Exmark

Not available

1-800292

71

323-6

Part# 1-800292 (Superseded to 323-6)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.97

1-503080

72

DISCONTINUED (EXMARK)

Part# 1-503080

OEM Warranty Repair Part for Exmark

Not available
