TR 530 (960910017-03) - Husqvarna Rear-Tine Tiller (2013-02) MAINFRAME, LEFT SIDE Parts Diagram

Rear-Tine Tiller

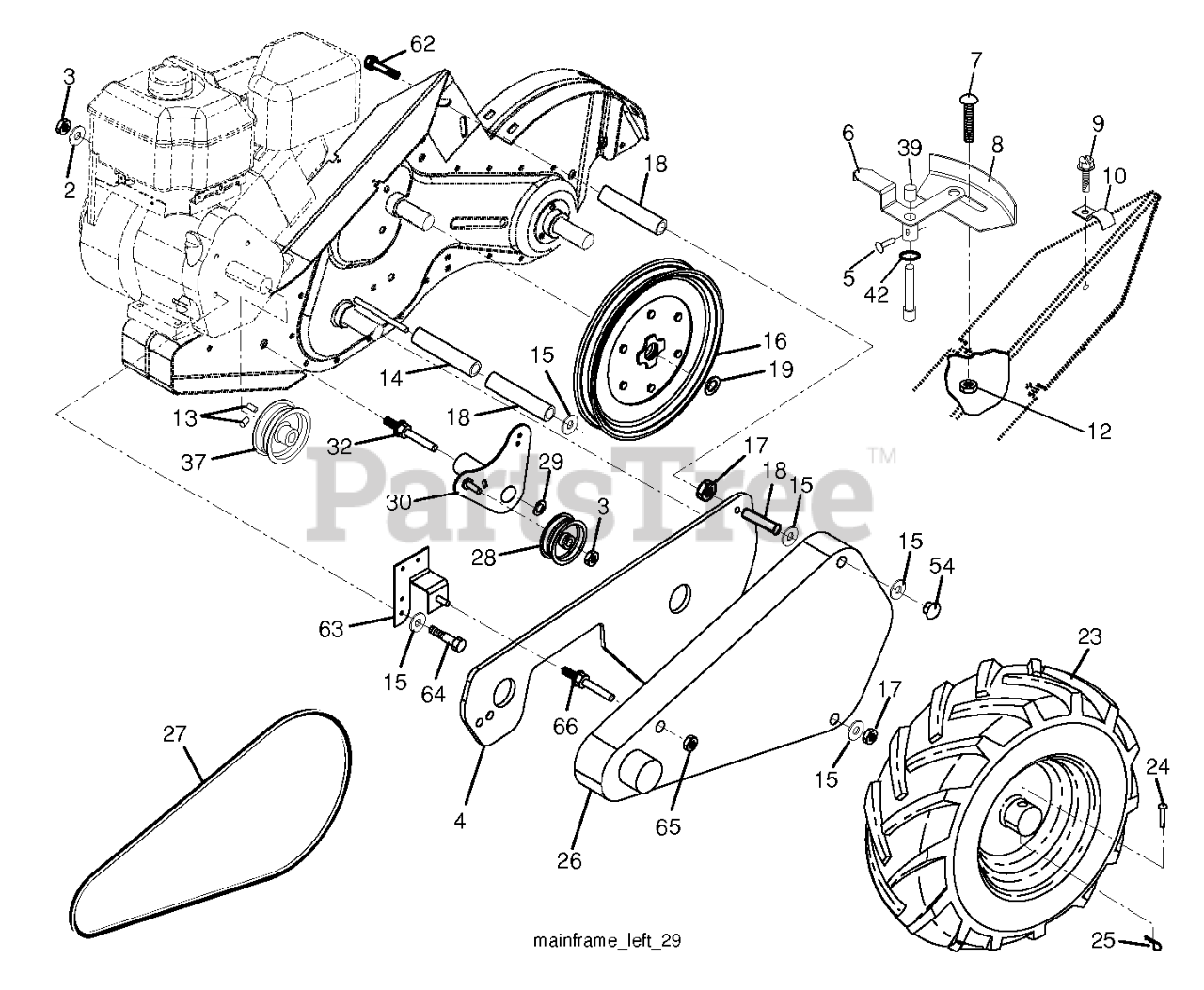

MAINFRAME, LEFT SIDE Parts Diagram

  • Title

62

Husqvarna 874930572

BOLT 5/16-18X4 1/2

$3.99

$

Usually ships in 3-10 days

0

19

Husqvarna 812000028

RETAINING RING LT

$7.49

$

In Stock, Qty 13

0

64

Husqvarna 874770508

BOLT

$4.99

$

Usually ships in 3-10 days

0

24

Husqvarna 532004929

RIVET TI

$7.49

$

In Stock, only 2 left!

0

25

Husqvarna 532124961

SPRING TI
(Superseded to 532004921)

$6.49

$

In Stock, only 1 left!

0

6

Husqvarna 532110111

LEVER ASM CRT

$18.99

$

In Stock, only 1 left!

0

10

Husqvarna 532009484

CONDUIT.CLIP.PLATED

$6.49

$

In Stock, only 4 left!

0

3

Husqvarna 873220600

NUT.HEX.3/8-16UNC

$6.49

$

In Stock, only 3 left!

0

37

Husqvarna 532429695

RPSHEAVE.3.50.TILLER.ZINC.SUBA
(Superseded to 592642201)

$18.99

$

Usually ships in 3-10 days

0

42

Husqvarna 532106160

O-RING TI

$6.49

$

In Stock, only 2 left!

0

63

Husqvarna 581850301

BRACKET.ASM.GRD.BELT.INTEK.PNT
(Superseded to 584461201)

$11.99

$

Usually ships in 3-10 days

0

15

Husqvarna 819111116

WASHER
(Superseded to 596204101)

$3.99

$

In Stock, Qty 20+

0

4

Husqvarna 581850401

SHIELD

$

$

Not available

39

Husqvarna 532140062

CAP.PLUNGER.BLACK

$6.49

$

In Stock, only 1 left!

0

12

Husqvarna 873510400

NUT
(Superseded to 873680400)

$3.99

$

In Stock, Qty 20+

0

7

Husqvarna 872110404

BOLT

$6.49

$

Usually ships in 3-10 days

0

9

Husqvarna 532086777

TAPPING SCREW
(Superseded to 817021008)

$4.99

$

In Stock, Qty 20+

0

30

Husqvarna 581849801

BRACKET
(Superseded to 584289401)

$

$

Not available

28

Husqvarna 532104679

PULLEY-IDLER TI

$18.99

$

In Stock, only 4 left!

0

66

Husqvarna 581981302

GUIDE.BELT.REAR.TINE.TILLER.BL

$

$

Not available

26

Husqvarna 532442960

GUARD.BELT.TILLER.8HP.ORANGE

$

$

Not available

18

Husqvarna 532131691

SPACER SPLIT

$6.49

$

Usually ships in 3-10 days

0

16

Husqvarna 532145102

SHEAVE, TRANSMISSION

$66.99

$

In Stock, only 3 left!

0

14

Husqvarna 532156117

SPACER-SPLIT.327 X .42

$6.49

$

Usually ships in 3-10 days

0

2

Husqvarna 810040600

WASHER, LOCK 3/8
(Superseded to 596238701)

$3.99

$

In Stock, Qty 20+

0

5

Husqvarna 532164329

PIN.SPIROL.FLARED

$7.49

$

In Stock, Qty 12

0

23

Husqvarna 581576601

WHEEL.DR.RH.16X4X8.TILLER.SILV
(Superseded to 584459701)

$141.99

$

Usually ships in 3-10 days

0

65

Husqvarna 873510600

NUT

$6.49

$

Usually ships in 3-10 days

0

27

Husqvarna 532138399

BELT, DRIVE

$60.99

$

Usually ships in 3-10 days

0

54

Husqvarna 532104214

NUT TI

$4.99

$

Usually ships in 3-10 days

0

32

Husqvarna 532139401

SHAFT, IDLER ARM

$7.49

$

In Stock, only 4 left!

0

8

Husqvarna 581845001

PANEL.INDICATOR.SHIFT.BLACK
(Superseded to 532008700)

$4.99

$

In Stock, only 1 left!

0

17

Husqvarna 873220500

NUT

$6.49

$

Usually ships in 3-10 days

0

13

Husqvarna 823230506

SET SCREW

$4.99

$

In Stock, only 2 left!

0

29

Husqvarna 812000032

KLIP RING

$7.49

$

Usually ships in 3-10 days

0
