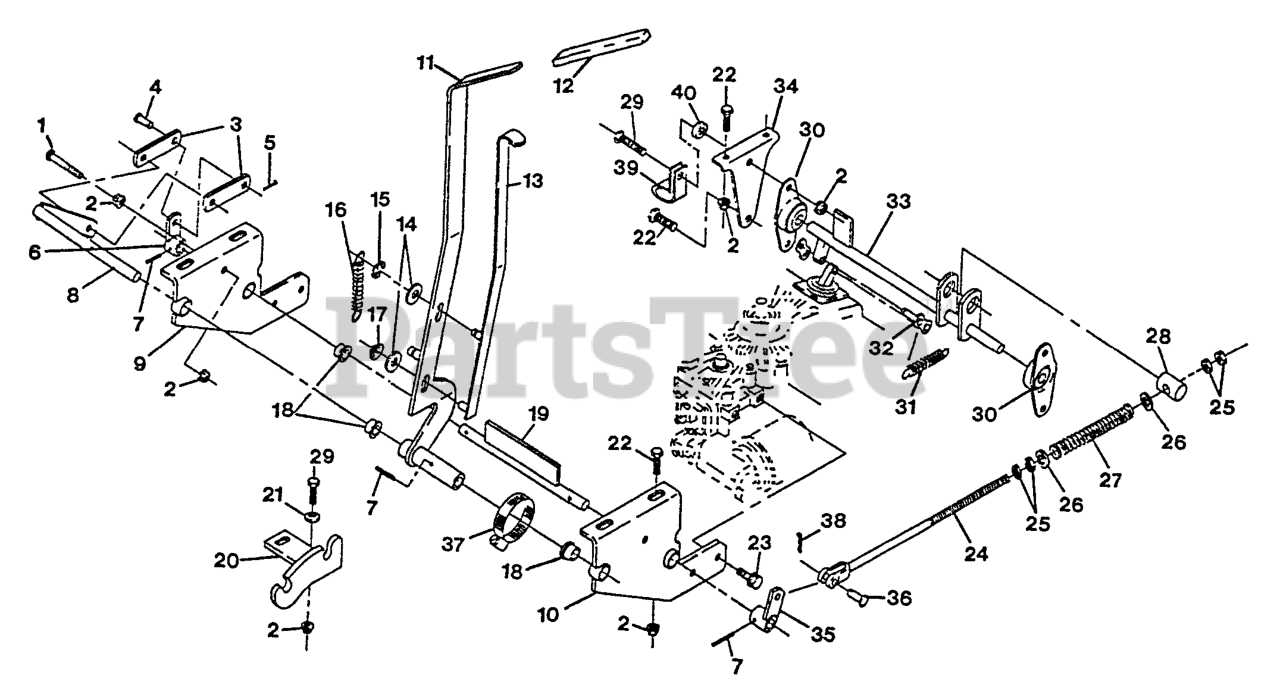

TR20BV - Exmark Turf Ranger Front Mount Mower, 20HP Briggs & Stratton (SN: 115000 - 129999) (1996) > Parts Diagrams (35) > Parking Brake

  • Title
1-800278

1

Capscrew, 5/16-18 X 2-1/4

Part# 1-800278 (Superseded to 322-11)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.23

1-809001

2

Nut, Whizlock, 5/16-18

Part# 1-809001 (Superseded to 32128-20)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.74

1-543115

3

Link, Brake

Part# 1-543115

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $9.00

1-808278

4

Pin, Clevis 5/16 X 3/4

Part# 1-808278

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $1.15

1-806761

5

Pin, Cotter 1/8 X 3/4

Part# 1-806761 (Superseded to 3272-10)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.92

1-542123-01

6

Arm, Butterfly Control

Part# 1-542123-01

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $28.32

1-806328

7

Roll Pin, 7/32 X 7/8

Part# 1-806328

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.53

1-542190

8

Pivot Wldmt, Brake Lever

Part# 1-542190

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $33.48

1-542924-01

9

Support, Transmission (Lh)

Part# 1-542924-01 (Superseded to 1-552058-01)

OEM Warranty Repair Part for Exmark

Not available

1-542926

10

Support, Transmission (Rh)

Part# 1-542926 (Superseded to 1-552059-01)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $80.21

1-542192-01

11

Handle, Brake

Part# 1-542192-01 (Superseded to 103-3437)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $190.71

1-303020

12

Grip (Adjustment Lever)

Part# 1-303020

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.57

1-542719-01

13

Trigger, Brake

Part# 1-542719-01

OEM Warranty Repair Part for Exmark

Not available

1-805257

14

Washer, 5/16

Part# 1-805257 (Superseded to 3256-23)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.82

1-808512

15

E Ring

Part# 1-808512 (Superseded to 32120-35)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.30

1-513468

16

Spring, Brake Handle

Part# 1-513468

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $9.77

1-543798

17

Pushnut, 5/16

Part# 1-543798

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $2.43

1-513140

18

Bearing Control

Part# 1-513140

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.92

1-542125-01

19

Butterfly

Part# 1-542125-01

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $28.32

1-542900-01

20

Quadrant, Brake

Part# 1-542900-01

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $25.76

1-303334

21

Washer, Disc 5/16

Part# 1-303334

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.41

1-800271

22

Capscrew, 5/16-18 X 3/4

Part# 1-800271 (Superseded to 322-3)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.74

1-803032

23

Bolt, Whizlock 5/16-18 X 3/4

Part# 1-803032 (Superseded to 3234-5)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.91

1-543721

24

Linkage, Brake

Part# 1-543721

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $33.86

1-804760

25

Nut, Jam 3/8-24 Pltd

Part# 1-804760 (Superseded to 3220-3)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.31

1-805260

26

Washer, 3/8

Part# 1-805260 (Superseded to 3256-4)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.31

1-543132

27

Spring, Brake Protect

Part# 1-543132

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $51.37

1-543129

28

Pin, Trunion

Part# 1-543129

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $33.03

1-800273

29

Capscrew, 5/16-18 X 1

Part# 1-800273 (Superseded to 322-5)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.45

1-543514

30

Flange Mntg (Side)

Part# 1-543514

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $25.76

1-543543

31

Spring, 3 X 1/2

Part# 1-543543

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $6.44

1-543745

32

Link, Connector #60

Part# 1-543745

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $9.00

1-542748

33

Jackshaft, Brake

Part# 1-542748

OEM Warranty Repair Part for Exmark

Currently unavailable

1-543138

34

Mount, Jackshaft Bearing

Part# 1-543138

OEM Warranty Repair Part for Exmark

Not available

1-542121-01

35

Arm, Brake Control

Part# 1-542121-01

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $33.48

1-808280

36

Pin, Clevis, 5/16 X 1

Part# 1-808280

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.90

1-543892

37

Clamp, Hose

Part# 1-543892

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $4.89

1-806753

38

Pin, Clevis 3/32 X 1/2

Part# 1-806753 (Superseded to 3272-5)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.07

1-213148

39

Clamp

Part# 1-213148

OEM Warranty Repair Part for Exmark

Not available

1-543007

40

Spacer

Part# 1-543007

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $6.10
