TR20KC - Exmark Turf Ranger Front Mount Mower, 20hp Kohler (SN: 090000 - 101999) (1994) Engine Deck Group Parts Diagram

Turf Ranger Front Mount Mower, 20hp Kohler

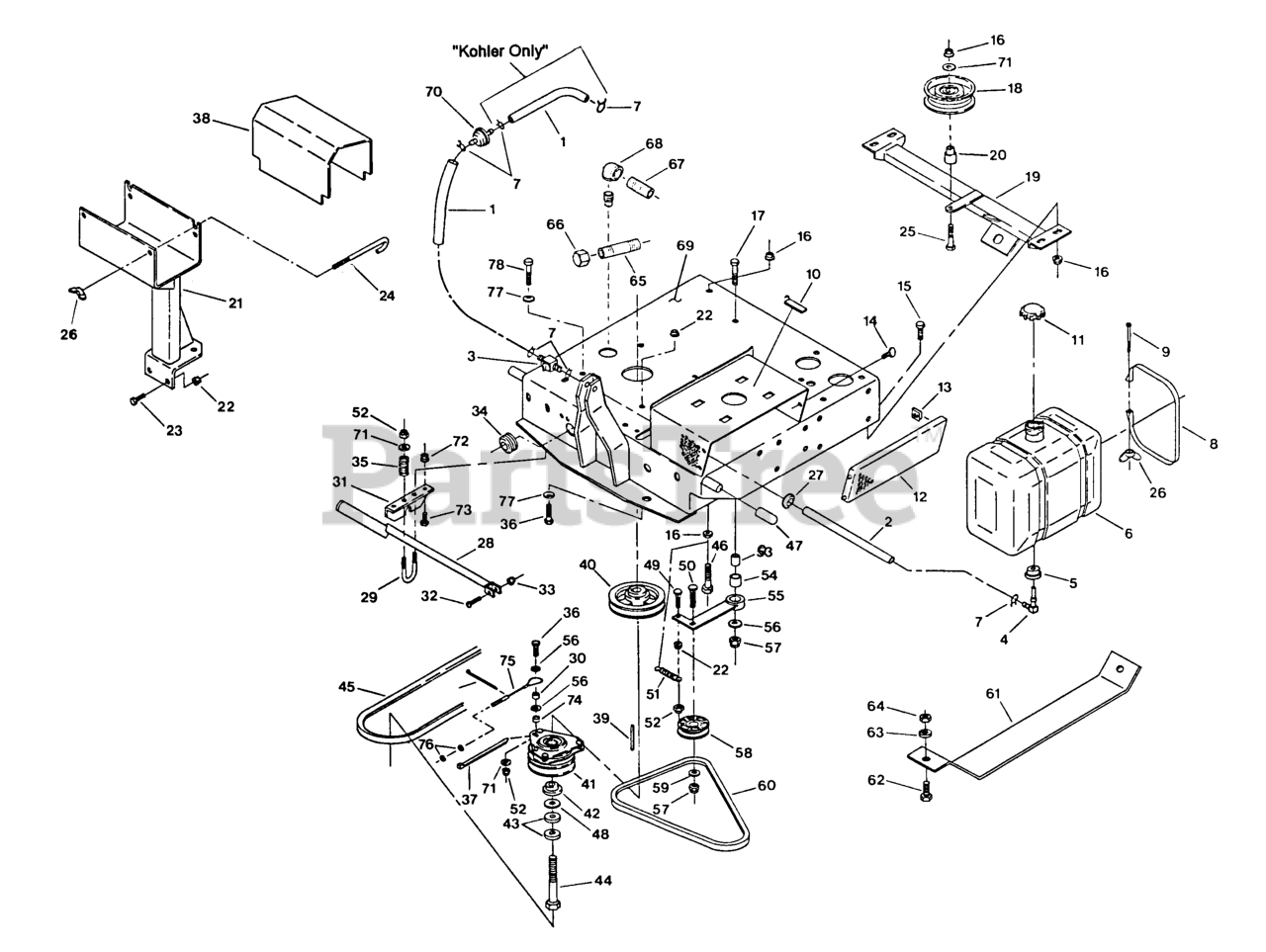

Engine Deck Group Parts Diagram

  • Title

1

Exmark 1-303471

LINE-FUEL

Note: (Kohler)

$8.99

$

In Stock, only 2 left!

0

Exmark 1-303307

DISCONTINUED

Note: (18 BV)

$

$

Not available

2

Exmark 1-303306

DISCONTINUED

$

$

Not available

3

Exmark 1-603770

VALVE-FUEL

$8.99

$

In Stock, Qty 20+

0

4

Exmark 1-543277

ELBOW-TANK, FUEL

$13.99

$

In Stock, Qty 20+

0

5

Exmark 1-513645

46-6560
(Superseded to 46-6560)

$6.49

$

In Stock, Qty 20+

0

6

Exmark 1-543364

DISCONTINUED

$

$

Not available

7

Exmark 1-303077

CLAMP

Note: (20 KC)

$1.49

$

In Stock, Qty 20+

0

Note: (18 BV)

$

$

Not available

8

Exmark 1-303465-03

1-303465
(Superseded to 1-303465)

$37.99

$

In Stock, only 1 left!

0

9

Exmark 1-801060

DISCONTINUED (EXMARK)

$

$

Not available

10

Exmark 1-303315

PAD,PLASTIC TANK

$

$

Not available

11

Exmark 1-513508

CAP-FUEL

$28.99

$

In Stock, Qty 20+

0

12

Exmark 1-542045-01

DISCONTINUED

$

$

Not available

13

Exmark 1-809024

NUT,RETNR UTYP 1/4-20

$

$

Not available

14

Exmark 1-543791

SCREW,REGTHMB,

$

$

Not available

15

Exmark 1-800290

323-4
(Superseded to 323-4)

$4.49

$

In Stock, Qty 20+

0

16

Exmark 1-809007

3290-357
(Superseded to 3290-357)

$0.99

$

In Stock, Qty 20+

0

17

Exmark 1-800296

323-10
(Superseded to 323-10)

$1.49

$

In Stock, Qty 20+

0

18

Exmark 1-543877

109-6561
(Superseded to 109-6561)

$153.99

$

Usually ships in 3-6 days

0

19

Exmark 1-542958-01

WLD,CROSSMEMBER

$

$

Not available

20

Exmark 1-543879

BUSHING,IDLER

$16.99

$

In Stock, only 1 left!

0

21

Exmark 1-542069-03

WLD,BATTERY MOUNT

$

$

Not available

22

Exmark 1-809001

32128-20
(Superseded to 32128-20)

$1.49

$

In Stock, Qty 20+

0

23

Exmark 1-800271

322-3
(Superseded to 322-3)

$0.99

$

In Stock, Qty 20+

0

24

Exmark 1-543882

BOLT - HOLD DOWN

$15.99

$

In Stock, only 4 left!

0

25

Exmark 1-800297

323-11
(Superseded to 323-11)

$2.49

$

In Stock, Qty 20+

0

26

Exmark 1-543792

WINGNUT

$6.99

$

In Stock, Qty 6

0

27

Exmark 1-543296

GROMMET

$8.99

$

In Stock, only 3 left!

0

28

Exmark 1-542948-01

DISCONTINUED

$

$

Not available

29

Exmark 1-543935

U-BOLT

$20.99

$

Usually ships in 3-6 days

0

30

Exmark 1-543007

SPACER,CLUTCH ANCHOR

$8.99

$

In Stock, only 2 left!

0

31

Exmark 1-543933-01

DISCONTINUED

$

$

Not available

32

Exmark 1-801056

DISCONTINUED (EXMARK)

$

$

Not available

33

Exmark 1-804254

NUT-LOCK, HH

$1.49

$

In Stock, Qty 20+

0

34

Exmark 1-543286

GROMMET

$13.99

$

Usually ships in 3-6 days

0

35

Exmark 1-303160

SPRING-COMPRESSION

$6.99

$

In Stock, only 2 left!

0

36

Exmark 1-800275

322-7
(Superseded to 322-7)

$1.49

$

In Stock, Qty 20+

0

37

Exmark 1-303335

TIE-PLASTIC
(Superseded to 3290-378)

$0.99

$

In Stock, Qty 7

0

38

Exmark 1-543891

103-3442
(Superseded to 103-3442)

$77.99

$

In Stock, only 4 left!

0

39

Exmark 1-807266

DISCONTINUED (EXMARK)

$

$

Not available

40

Exmark 1-543929

SHEAVE,4.25 OD A

$

$

Not available

41

Exmark 1-543860

1-551054
(Superseded to 1-551054)

Note: For units produced with the Warner 5215-14 electric clutch, replace said clutch with Kit #541003 which includes Ogura clutch and necessary parts to install to your unit.

$

$

Not available

42

Exmark 1-543865

DISCONTINUED (EXMARK)

$

$

Not available

43

Exmark 1-603610

WASHER-SPRING

$5.49

$

In Stock, Qty 20+

0

44

Exmark 1-800820

3212-12
(Superseded to 3212-12)

$3.49

$

In Stock, Qty 12

0

Exmark 1-840022

PRO-LOCK,NUT TYPE

Note: Use on Threads

$21.99

$

Usually ships in 3-6 days

0

45

Exmark 1-323300

BELT,BLADE DRIVE
(Superseded to 1-323300-SL)

$109.99

$

In Stock, Qty 6

0

Exmark 1-543028

BELT,DECK DRIVE

$

$

Not available

46

Exmark 1-800295

323-9
(Superseded to 323-9)

$1.49

$

In Stock, Qty 20+

0

47

Exmark 1-303021

GRIP-LEVER, DRIVE

$1.99

$

In Stock, Qty 10

0

48

Exmark 1-373034

WASHER

$3.99

$

In Stock, Qty 20+

0

49

Exmark 1-807518

3230-3
(Superseded to 3230-3)

$1.49

$

In Stock, Qty 20+

0

50

Exmark 1-807517

3231-29
(Superseded to 3231-29)

$7.99

$

In Stock, only 2 left!

0

51

Exmark 1-513170

SPRING,EXTENSION

$30.99

$

In Stock, Qty 5

0

52

Exmark 1-804256

3296-29
(Superseded to 3296-29)

$2.49

$

In Stock, Qty 20+

0

53

Exmark 1-543274

BUSHING,STEEL

$10.99

$

In Stock, only 1 left!

0

54

Exmark 1-543502

BUSHING,IDLER ARM

$15.99

$

In Stock, only 1 left!

0

55

Exmark 1-542270-01

WLD,IDLER ARM HYDRO

$103.99

$

Usually ships in 3-6 days

0

56

Exmark 1-213069

WASHER

$2.99

$

In Stock, Qty 20+

0

57

Exmark 1-804257

3296-39
(Superseded to 3296-39)

$2.99

$

In Stock, Qty 20+

0

58

Exmark 1-543008

IDLER,PULLEY

$41.99

$

In Stock, only 2 left!

0

59

Exmark 1-805260

3256-4
(Superseded to 3256-4)

$1.99

$

In Stock, Qty 20+

0

60

Exmark 1-543548

BELT,A TRANS DRIVE
(Superseded to 1-543548-SL)

$35.99

$

In Stock, only 1 left!

0

61

Exmark 1-543258-01

PLATE-SKID

$

$

Not available

62

Exmark 1-800326

325-5
(Superseded to 325-5)

$1.49

$

Usually ships in 3-6 days

0

63

Exmark 1-805008

3253-7
(Superseded to 3253-7)

$1.49

$

In Stock, Qty 20+

0

64

Exmark 1-804509

3217-9
(Superseded to 3217-9)

$0.99

$

In Stock, Qty 20+

0

65

Exmark 1-543232

NIPPLE

Note: (18BV) Use Teflon Pipe Sealant or equivalent on threads

$22.99

$

Usually ships in 3-6 days

0

66

Exmark 1-543233

CAP-HEX

Note: (18BV)

$

$

Not available

67

Exmark 1-543064

NIPPLE,PIPE

Note: (20 KC) Use Teflon Pipe Sealant or equivalent on threads

$

$

Not available

68

Exmark 1-303428

ELBOW-90 DEG

Note: (20KC) Use Teflon Pipe Sealant or equivalent on threads

$

$

Not available

69

Exmark 1-542082

1-542091-01
(Superseded to 1-542091-01)

$

$

Not available

70

Exmark 1-303197

109585
(Superseded to 139-5916)

$9.49

$

In Stock, Qty 20+

0

71

Exmark 1-805258

3256-3
(Superseded to 3256-3)

$0.99

$

In Stock, Qty 20+

0

72

Exmark 1-809012

32128-33
(Superseded to 32128-33)

$0.99

$

In Stock, Qty 20+

0

73

Exmark 1-800251

321-3
(Superseded to 321-3)

$1.49

$

In Stock, Qty 20+

0

74

Exmark 1-323093

DISCONTINUED

$

$

Not available

75

Exmark 1-542046

DISCONTINUED (EXMARK)

$

$

Not available

76

Exmark 1-804255

3296-42
(Superseded to 3296-42)

$0.99

$

In Stock, Qty 20+

0

77

Exmark 1-303334

WASHER-SPRING

$2.99

$

In Stock, Qty 20+

0

78

Exmark 1-800276

322-9
(Superseded to 322-9)

$3.99

$

In Stock, Qty 20+

0

79

Exmark 1-303287

TIE-CABLE

$1.49

$

Usually ships in 3-6 days

0
