TR31108237 - Toro 8" x 60" 2 Pitch Cup Chain, Utility Trencher 8 INCH X 60 INCH 2 PITCH CUP CHAIN ASSEMBLY Parts Diagram

8" x 60" 2 Pitch Cup Chain, Utility Trencher

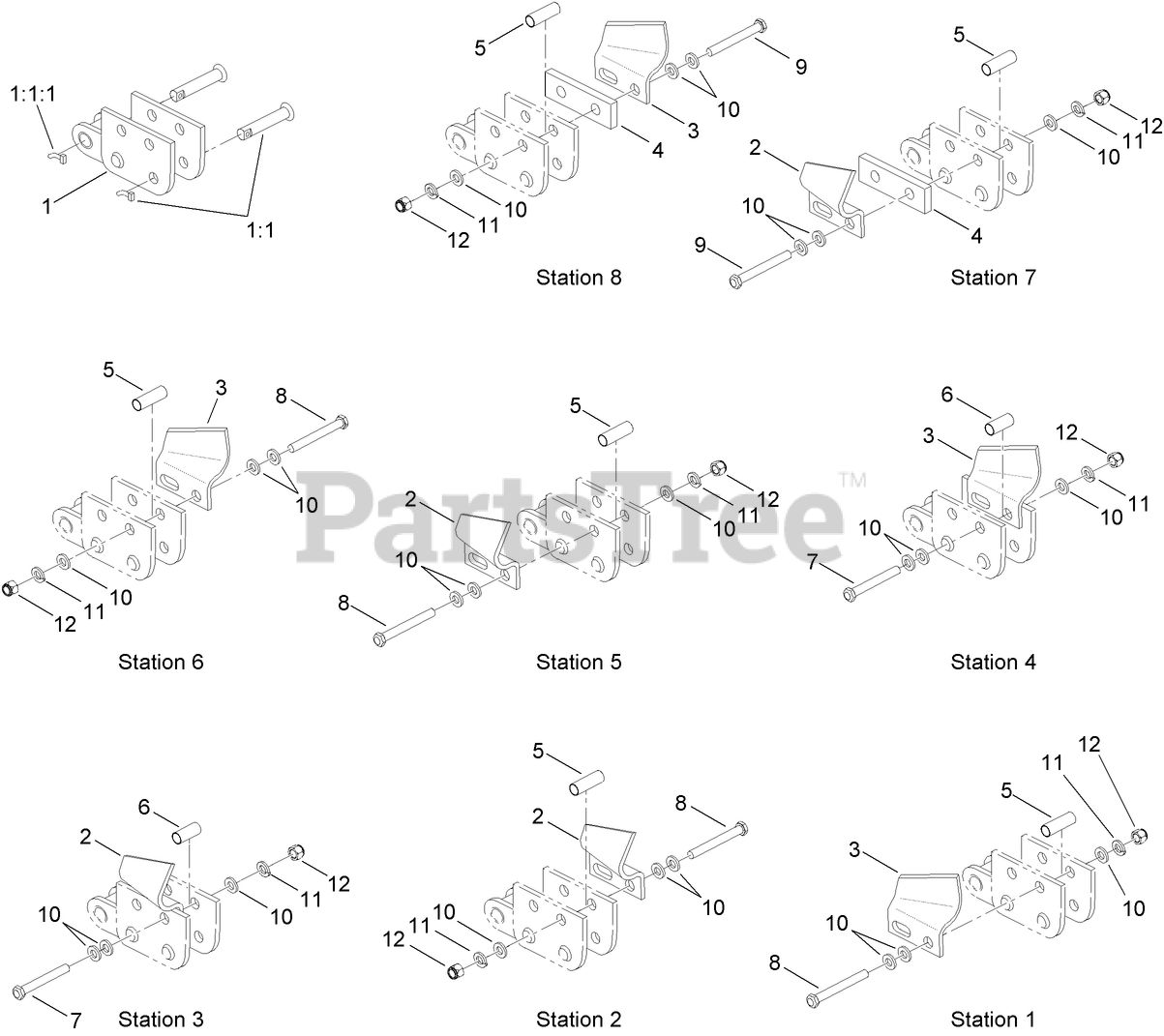

8 INCH X 60 INCH 2 PITCH CUP CHAIN ASSEMBLY Parts Diagram

  • Title

1

Toro 131-6256

CHAIN REPAIR LINK ASM

$206.99

$

Usually ships in 3-6 days

0

1:1

Toro 131-6257

NOTCHED PIN AND KEEPER ASM

$31.99

$

Usually ships in 3-6 days

0

1:1:1

Toro 131-6258

PIN-KEEPER

$9.99

$

Usually ships in 3-6 days

0

2

Toro 131-1399

CUTTER-CUP, RH

$

$

Currently unavailable

3

Toro 131-1400

CUTTER-CUP, LH

$

$

Currently unavailable

4

Toro 131-1414

SPACER-FLAT

$

$

Currently unavailable

5

Toro 131-1405

SPACER-TUBE, OUTSIDE MOUNT

$11.99

$

Usually ships in 3-6 days

0

6

Toro 131-1402

SPACER-TUBE, INSIDE CUP MOUNT

$13.99

$

Usually ships in 3-6 days

0

7

Toro 131-1416

BOLT-HH

$12.99

$

Usually ships in 3-6 days

0

8

Toro 131-1417

BOLT-HH

$17.99

$

Usually ships in 3-6 days

0

9

Toro 131-1418

BOLT-HH

$18.99

$

Usually ships in 3-6 days

0

10

Toro 131-1420

WASHER-FLAT

$1.49

$

Usually ships in 3-6 days

0

11

Toro 131-1422

WASHER-LOCK

$1.49

$

Usually ships in 3-6 days

0

12

Toro 131-1421

NUT-LOCK

$3.49

$

Usually ships in 3-6 days

0
